Summary of Contents for Woodpecker UDS-E LED
-
Page 2: Table Of Contents
Contents 1 The installation and components of equipment ..........1 2 Product function and operation ................5 3 Sterilization and maintenance ................8 4. Precaution .......................11 5. After service ....................13 6. Symbol instruction ..................13 7. Environmental protection ................14 8. Manufacturer’s right ..................14 9. European authorized representative ..............14 10. -
Page 3: The Installation And Components Of Equipment

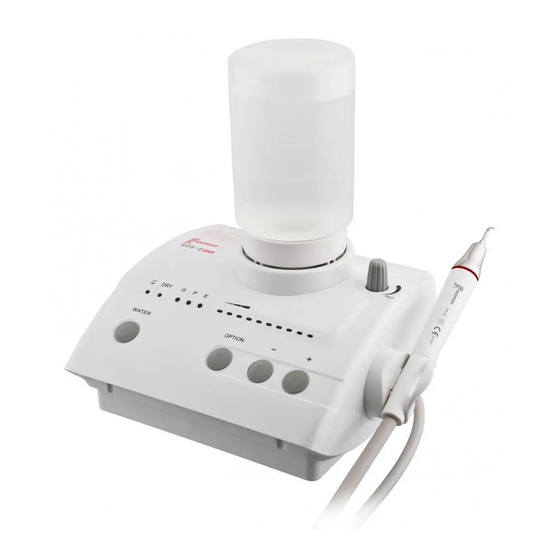

1.1.5 Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily. 1.1.6 Controlled by PC, easy operation and more efficient for scaling. These features make UDS-E LED become a new generation product in the world dental market. 1.2 Components 1.2.1 The components of machine are listed in the packing list. - Page 4 Operating mode: Continuous operation Type of protection against electric shock: Class II equipment Degree of protection against electric shock: Type BF applied part Applied part of the equipment: handpiece and scalling tip Degree of protection against harmful ingress of water: Ordinary equipment Protection degree against water (used on the foot switch): IPX1 Degree of safety of application in the presence of a Flammable Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide: Equipment not suitable for...
- Page 5 Figure 2 1.4.2 Sketch map for connection of foot switch, power supply and main unit. Figure 3 1.4.3 Water way connection Sketch map for water bottle installation...
- Page 6 Figure 4 1.4.4 Sketch map for connection of detachable handpiece Figure 5 1.4.5 Sketch map for how to install tip and endochuck with wrench...
-
Page 7: Product Function And Operation
Figure 6 2 Product function and operation 2.1 Scaling function 2.1.1 Operation a) Open the packing box, make sure that all the parts and accessories are complete according to the packing list. Take the main unit out of the box and put it on a stable plane. - Page 8 h) According to need, press water button to choose auto-water or DRY mode. The indicator of choosen mode is on. i) Select a suitable scaling tip as you need, screw it on the handpiece tightly by the torque wrench (See Figure 6). j) Step on the foot switch, the tip begins to vibrate, and the LED lamp on the top of the handpiece shines.
- Page 9 the cable. 2.1.3 Instruction of torque wrench (See Figure 6) a) The torque wrench's structure is designed in special way which can control the strength of the scaling tip's installation properly and correctly. It also can guarantee the operator screw or unscrew the scaling tip effectively and keep their hands away from being scratched.
-
Page 10: Sterilization And Maintenance
d) Clean the joint and interface of water bottle before each clinical operation. e) After each clinical operation with clinical liquid, change a bottle with purified water, turn the water supply to max, make the machine work with auto- water supply for 30 seconds in order to keep the water way and spare parts clean and durable. - Page 11 them with dental lube frequently, as sterilization and repeated pulling and inserting will reduce their working life. Change a new one once it is damaged or worn excessively. e) The following sterilizing methods are forbidden: ① Put handpiece into any liquid for boiling. ②...
- Page 12 Fault Possible cause Solutions The tip is in loose contact. Screw the tip on the handpiece tightly (See Figure The scaling tip doesn't vibrate but there is water The connect plug between the Contact our dealers or us. flowing out when stepping handpiece and the circuit board on the switch.
-
Page 13: Precaution
Fault Possible cause Solutions Poor contact Contact tightly Something wrong with LED Change a new one LED light don't work light LED lamp installed Please install the "+" of backwards the LED lamp to the "+" of the handpiece There is no water coming There is air in the water pipe. - Page 14 4.1.12 The power supply is considered as a part of ME equipment.This device can only be equipped with the special power supply of Guilin Woodpecker Medical Instrument Co., Ltd. 4.1.13 The power supply is NOT waterproof. Please keep it dry and away from the water.
-
Page 15: After Service
power and water once per month for five minutes. 4.4 Transportation 4.4.1 Excessive impact and shake should be prevented in transportation. Lay it carefully and lightly and don't invert it. 4.4.2 Don't put it together with dangerous goods during transportation. 4.4.3 Avoid solarization and getting wet in rain or snow during transportation. -
Page 16: Environmental Protection
Keep dry Handle with care Add water Mode of auto-water system Appliance compliance WEEE directive Atmospheric pressure for Power switch storage Temperature limitation for Humidity limitation for storage storage Authorised Representative in the EUROPEAN COMMUNITY 7. Environmental protection Please dispose according to the local laws. 8. -
Page 17: Emc - Declaration Of Conformity
10. EMC - Declaration of conformity... -
Page 20: Statement
The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. -
Page 21: Table Of Operating Power Of The Tips
TABLE OF OPERATING POWER OF THE TIPS Scaling Endodontics Tip Model Power Tip Model Power 1-10(G) 1-3(E) 1-10(G) 1-3(E) 1-10(G) 1-6(E) 1-10(G) 1-3(E) 1-10(G) 1-6(E) 1-10(G) 1-3(E) 1-10(G) 1-6(E) 1-10(G) 1-3(E) 1-10(G) 1-10(E) G 10 1-10(G) 1-10(E) G 11 1-10(G) 1-6(E) E10D 1-6(E) - Page 22 ZMN/WI-09-045 V2.7-20190910...
