Contents 1. The installation and components of equipment .............1 2 Installing of the equipment ....................2 3. Product function and usage .....................4 4. Cleaning, Disinfection and Sterilization ................8 5. Contraindication ......................14 6. Troubleshooting ......................14 7. Precaution ........................15 8. Storage and maintenance .....................16 9.

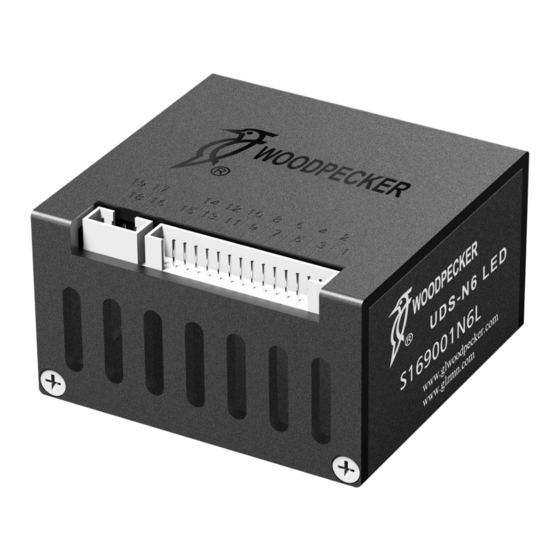

The built-in ultrasonic scaler UDS-N6 LED is used along with dental unit for teeth cleaning. They are also indispensable equipments for tooth disease prevention and treatment.
p) Degree of safety of application in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide: Equipment can not be used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide 1.3.2 Working condition a) Environment temperature: +5°C to +40°C b) Relative humidity: 30% ~75%...
Page 5
eliminate the tartar without obvious heat. Overexertion and longtime lingering are forbidden. picture 1...
3. Product function and usage 3.1 Working principle 3.1.1 Summarization: the built-in ultrasonic scaler is consist of ultrasonic generator (circuit), cable, handpiece (energy-transformed instrument), scaling tip, pneumatic switch (the power switch of pneumatic penstock and the circuit’s commutating and filtering, is controlled by pneumatic foot pedal of dental unit and switch for handpiece rack of ultrasonic scaler at the same time) and switch for handpiece rack (it controls the air supply which gets through pneumatic penstock and pneumatic power switch.
Page 7
picture 2 a) Nipple: The nipple can be removed. You can screw out the nipple and clean the pole with alcohol termly. b) Decorative ring: can be disassembled and cleaned with alcohol regularly, can be autoclaved under the high temperature and pressure. c) Handpiece: The main part of the whole handpiece, can be autoclaved under the high temperature and pressure.
Page 8
b) Put the water pipe in the middle of the water exit connector( about 3mm), then push the cutting sleeve forward to the front edge of the water exit connector. c) Pinch the cutting sleeve and the water pipe with your fingers, push them forward at the same time until they are wrapped into the water exit connector fully.
Page 9
Picture 4 Picture 5 (Only for device with Endo function)
3.3 Endo function (Only for device with Endo function) 3.3.1 Usage process a) Fix endo holder to handpiece by endo wrench. b) Unscrew the screw cap on the endo holder. c) Put the ultrasonic file into the hole in the front of endo holder. d) Screw the screw cap with endo wrench to tight up the ultrasonic file.
Page 11
Tools: Endo wrench or torque wrench, tray, soft brush, clean and dry soft cloth 1. Remove the tip from product with Endo wrench or torque wrench provided by Guilin Woodpecker Medical Instrument Co., Ltd, and then put the tip and wrench into a clean tray.
Page 12
Disassembling steps 4.3 Cleaning The cleaning should be performed no later than 24 hours after the operation. The cleaning can be divided into automated cleaning and manual cleaning. Automated cleaning is preferred if conditions permit. 4.3.1 Automated cleaning •The cleaner is proved to be valid by CE certification in accordance with EN ISO 15883. •There should be a flushing connector connected to the inner cavity of the product.
Page 13
4.4.1 Automated disinfection-Washer-disinfector The washer-disinfector is proved to be valid by CE certification in accordance with EN ISO 15883. • •Use high temperature disinfection function. The temperature does not exceed 134 ° C, and the disinfection under the temperature cannot exceed 20 minutes.
Page 14
1. Spread a clean white paper (white cloth) on the flat table, point the product against the white paper (white cloth), and then dry the product with filtered dry compressed air (maximum pressure 3 bar). Until no liquid is sprayed onto the white paper (white cloth), the product drying is completed. 2.
Page 15
• Allow a maximum sterilization time of 20 minutes at 134 °C. Verification of the fundamental suitability of the products for effective steam sterilization was provided by a verified testing laboratory. Notes: a) Only products that have been effectively cleaned and disinfected are allowed to be sterilized; b) Before using the sterilizer for sterilization, read the Instruction Manual provided by the equipment manufacturer and follow the instructions.
5. Contraindication 5.1 The hemophilia patient is forbidden to use this equipment. 5.2 The patients or doctors with heart pacemaker are forbidden to use this equipment. 5.3 The heart disease patient, preganant woman and children should be cautious to use the equipment. 6.
7.10 The internal screw threat of the scaling tips produced by some other manufactures, may be coarse, rusty and collapsed. This will damage the external screw threat of the handpiece irretrievably. Please use “WOODPECKER” brand scaling tips. 7.11 Before connecting the built-in ultrasonic scaler without transformer to power supply, please check the output voltage is 24V~, in case of connecting to wrong power supply and that may break the unit.
If you have any special request, please contact with us. (1). WARNING: No modification of this equipment is allowed. (2). WARNING: If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe use of equipment. 8.
14. Symbol instruction Trademark Follow Instructions for Use Ordinary equipment Alternating current Atmospheric pressure for storag Date of manufacture Manufacturer Class II equipment Type BF applied part Can be autoclaved Used indoor only Appliance compliance WEEE directive CE marked product Humidity limitation for storage Temperature limitation for storage...
Guidance and manufacturer’s declaration - electromagnetic emissions The models UDS-N6 LED are intended for use in the electromagnetic environment specified below. The customer or the user of the models UDS-N6 LED should assure that it is used in such an environment.
Page 21
(60% dip in UT) for 5 (60% dip in UT) for 5 cycles that the models UDS-N6 LED be powered from an IEC 61000-4-11. cycles 70% UT uninterruptible power supply or a battery.
Page 22
To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the models UDS-N6 LED are used exceeds the applicable RF compliance level above, the model UDS-N6 LED should be observed to verify normal operation.
Page 23
RF communications equipment and the models UDS-N6 LED The models UDS-N6 LED are intended for use in electromagnetic environment in which radiated RF disturbances is controlled. The customer or the user of the models UDS-N6 LED can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the models UDS-N6 LED are recommended below, according to the maximum output power of the communications equipment.
