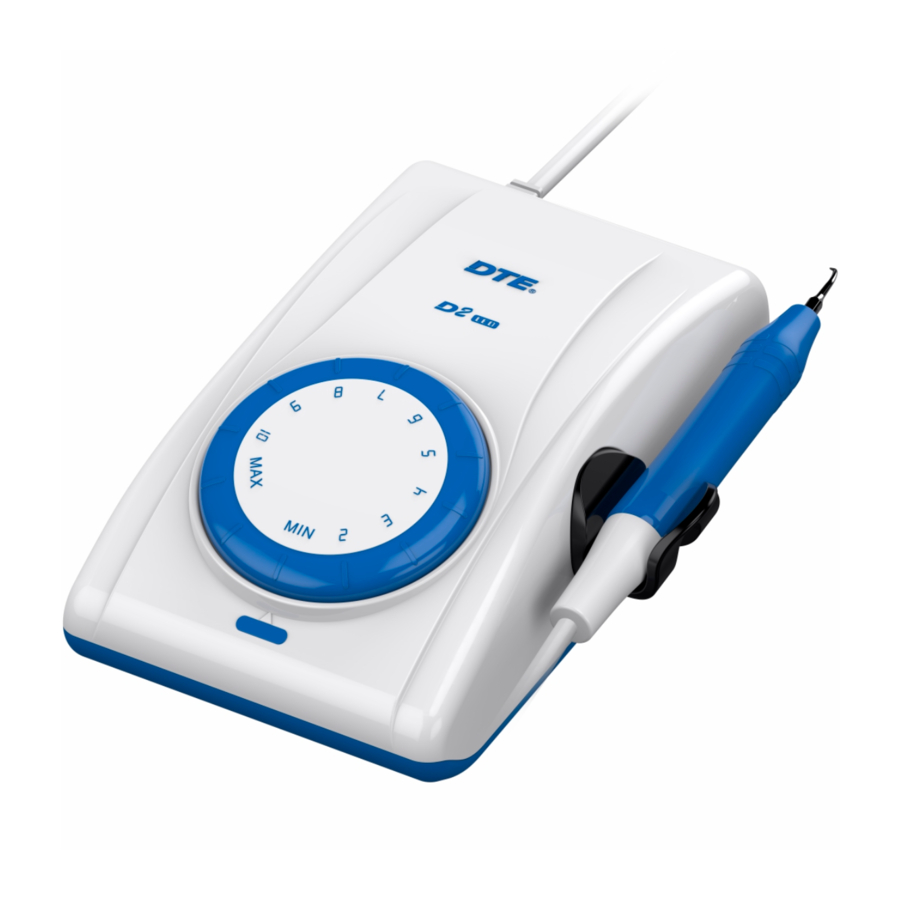

Summary of Contents for Woodpecker DTE D2 LED
-
Page 2: Table Of Contents
Contents 1 The installation and components of equipment—————————————1 1.1 Instruction——————————————————————————1 1.2 Components—————————————————————————1 1.3 The main technical specifications—————————————————1 1.4 Instruction of the main components————————————————2 2. Installation and adjustment————————————————————3 3. Maintenance and sterilization———————————————————4 4. Precaution——————————————————————————7 5. After service——————————————————————————9 6. Environmental protection—————————————————————9 7. Manufacturer’s right——————————————————————9 8. -
Page 3: The Installation And Components Of Equipment
1. The installation and components of equipment 1.1 Instruction Guilin Woodpecker Medical Instrument Co., Ltd. is a high-tech enterprise in researching, developing, and producing dental equipment, and has a perfect quality assurance system, main products including ultrasonic scaler, curing light, micro motor, apex locator and ultrasurgery, automatic water supply system etc. -
Page 4: Instruction Of The Main Components
h) Weight of main unit: 1.56kg i) Operating mode: Continuous operation j) Type of protection against electric shock: class II equipment k) Degree of protection against electric shock: Type BF applied part l) Applied part of the equipment: handpiece and tip m) Degree of protection against harmful ingress of water: Ordinary equipment, the foot switch is drip-proof equipment (IPX1) n) Degree of safety of application in the presence of a Flammable Anesthetic Mixture... -
Page 5: Installation And Adjustment
1.4.3 Instruction of using torque wrench picture 3 2. Installation and adjustment 2.1 Operation 2.1.1 Open the packing box, make sure that all the parts and accessories are complete according to the packing list, take the main unit out of the box, and put it on the the stable plane facing to the operator. -
Page 6: Maintenance And Sterilization
2.1.10 Step on the foot switch, the tip begins to vibrate, and the LED lamp on the top of the handpiece shines. Release the foot switch, the LED lamp keep shining for 10 seconds. 2.1.11 Water volume adjustment: Step on the foot switch, and the tip begins to vibrate, the turn the water control switch to from fine spray to cool down the handpiece and clean the teeth. - Page 7 Fault Possible Solutions The scaling tip is in loose Screw it tightly (see picture The scaling tip doesn’t contact. vibrate, but there is The connector plug of the Contact with the local waterflowing out when handpiece with the circuit distributor or manufacturer. stepping on the foot board is in loose contact.
- Page 8 Fault Possible Solutions The vibration of the tip The tip hasn't been Screw the scaling tip tightly becomes weak. screwed tightly or (picture 3). becomes loose because of vibration. The tip is damaged.[note 3] Change a new one. The tip is damaged Change a new one.
-
Page 9: Precaution
f) Turn on the switch of the multi-function syringe, press the air or water into the water pipe to clean and eliminate the impurity. [Note 3 ] If the scaling tip has been screwed on tightly and there is fine spray too, the following phenomena show that the scaling tip is damaged: a) The vibrating intensity and the pulverization degree become weak obviously. - Page 10 Ⅱ . The changed components are original of "DTE" and operated correctly according to instruction manual. 4.1.14 The screw thread of the scaling tips produced by other manufacturers maybe coarse, rusty and collapsed, which will damage the screw thread of the handpiece irretrievably.
-
Page 11: After Service
Relative humidity: ≤80% Atmosphere pressure: 70kPa to106kPa 5. After service We offer one year free repair to the equipment according to the warranty card. The repair of the equipment should be carried out by professional technician. We are not responsible for any irretrievable damage caused by the not professional person. -
Page 12: Statement
The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. - Page 13 ZMN/WI-04-486 1.2 Edition...
