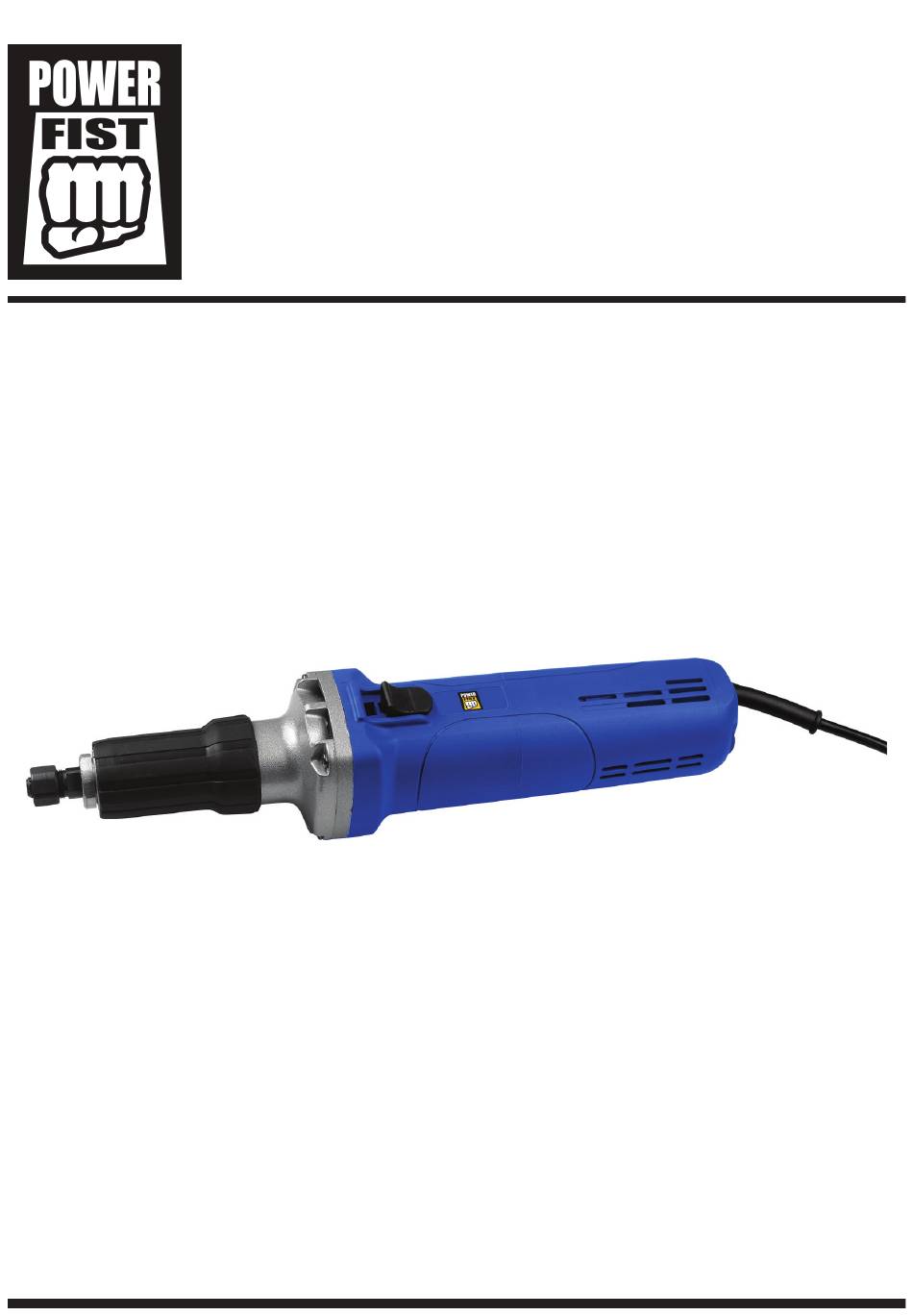

V 2.0
Please read and understand all instructions before use.
Retain this manual for future reference.
6A ELECTRIC
DIE GRINDER
User Manual
8395907

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8395907 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Power Fist 8395907

  • Page 1 V 2.0 8395907 6A ELECTRIC DIE GRINDER User Manual Please read and understand all instructions before use. Retain this manual for future reference.
  • Page 2: Specifications

    V 2.0 8395907 6A ELECTRIC DIE GRINDER SPECIFICATIONS Collet Size 1/4" Voltage 120V 60 Hz 6A No Load Speed 7,000 to 30,000 RPM 1/2" Included Wrenches. 3/4" SAFETY IMPORTANT SAFETY PRECAUTIONS WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 3: Personal Safety

    8395907 6A ELECTRIC DIE GRINDER V 2.0 PERSONAL SAFETY 1. Dress properly, wear protective equipment. Use breathing, ear, eye, face, foot, hand and head protection. Always wear ANSI approved impact safety goggles, which must provide both frontal and side protection.
  • Page 4: Vibration Precautions

    V 2.0 6A ELECTRIC DIE GRINDER 8395907 EXTENSION CORD PRECAUTIONS WARNING! Keep the extension cord clear of the working area. • Position the cord so it will not get caught on the workpiece, tools or any other obstructions while you are working with the power tool.
  • Page 5: Specific Safety Precautions

    8395907 6A ELECTRIC DIE GRINDER V 2.0 SPECIFIC SAFETY PRECAUTIONS • Do not force the tool. Your tool will perform best at the rate for which it was designed. Excessive force only causes operator fatigue, increased wear and reduced control.
  • Page 6: Operation

    V 2.0 6A ELECTRIC DIE GRINDER 8395907 LUBRICATION 1. It is important that the tool be properly lubricated. Without proper lubrication the tool will not work properly and parts will wear prematurely. Avoid over-lubricating the tool. 2. Use the proper lubricant and fill or lubricate parts ONLY as necessary. Use only recommended lubricants.
  • Page 7: Maintenance

    8395907 6A ELECTRIC DIE GRINDER V 2.0 MAINTENANCE 1. Inspecting tightness of the screws. Periodically inspect each screw on all components. If any screws are loose, tighten them to avoid a hazardous situation. 2. Maintenance of the motor. The winding parts of the motor unit are the “heart" of this device. Exercise with due care that this part is not scarred or sprayed with oil.
  • Page 8: Parts Breakdown

    V 2.0 6A ELECTRIC DIE GRINDER 8395907 PARTS BREAKDOWN Description Description Screw 3.9 x 60 Rear Cover Screw ST3.9 x 19 Snap Ring Cable + Plug Shock Proof Ring Cable + Sheath Head Housing Screw ST2.9 x 9 Screw 3.9 x 24...
  • Page 9 V 2.0 8395907 Meule à rectifier les matrices électrique de 6 A Manuel du Propriétaire Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil. Conservez ce manuel afin de pouvoir le consulter plus tard.
  • Page 10: Spécifications

    V 2.0 8395907 Meule à rectifier les matrices électrique de 6 A SPÉCIFICATIONS Taille de pince de serrage 1/4 po Tension 120 V, 60 Hz 6 A Vitesse à vide 7 000 à 30 000 TPM 1/2 po Clés comprises 3/4 po SÉCURITÉ...
  • Page 11: Sécurité Personnelle

    8395907 Meule à rectifier les matrices électrique de 6 A V 2.0 SÉCURITÉ PERSONNELLE 1. Portez des vêtements appropriés et de l’équipement de protection. Utilisez des protections pour les voies respiratoires, les oreilles, les yeux, le visage, les pieds, les mains et la tête. Portez toujours des lunettes de sécurité...
  • Page 12 V 2.0 Meule à rectifier les matrices électrique de 6 A 8395907 7. Si vous utilisez un outil électrique à l’extérieur, utilisez une rallonge d’extérieur identifiée « W-A » ou « W ». Ces rallonges sont approuvées pour un usage extérieur et réduisent le risque de choc électrique.
  • Page 13 8395907 Meule à rectifier les matrices électrique de 6 A V 2.0 PRÉCAUTIONS RELATIVES AUX VIBRATIONS Cet outil vibre pendant son usage. Une exposition répétitive ou prolongée aux vibrations peut causer des blessures temporaires ou permanentes, surtout aux mains, aux bras et aux épaules.
  • Page 14: Utilisation Et Entretien De L'outil

    V 2.0 Meule à rectifier les matrices électrique de 6 A 8395907 UTILISATION ET ENTRETIEN DE L’OUTIL 1. Utilisez le bon outil pour effectuer le travail. N’utilisez pas de petit outil ou de petit accessoire pour effectuer le travail d’un outil industriel plus gros. L’outil offrira une performance et une sécurité supérieures s’il est utilisé...
  • Page 15: Entretien

    8395907 Meule à rectifier les matrices électrique de 6 A V 2.0 UTILISATION ATTENTION ! Assurez-vous de couper l’alimentation électrique et de débrancher la rectifieuse pour empêcher la mise en marche accidentelle de l’outil, ce qui risquerait de provoquer des blessures ou du dommage à la pièce à...
  • Page 16 V 2.0 Meule à rectifier les matrices électrique de 6 A 8395907 MISE AU REBUT DE L’OUTIL Si votre outil est trop détérioré pour être réparé, ne le jetez pas. Apportez-le à un centre de recyclage approprié. RÉPARTITION DES PIÈCES N°...
