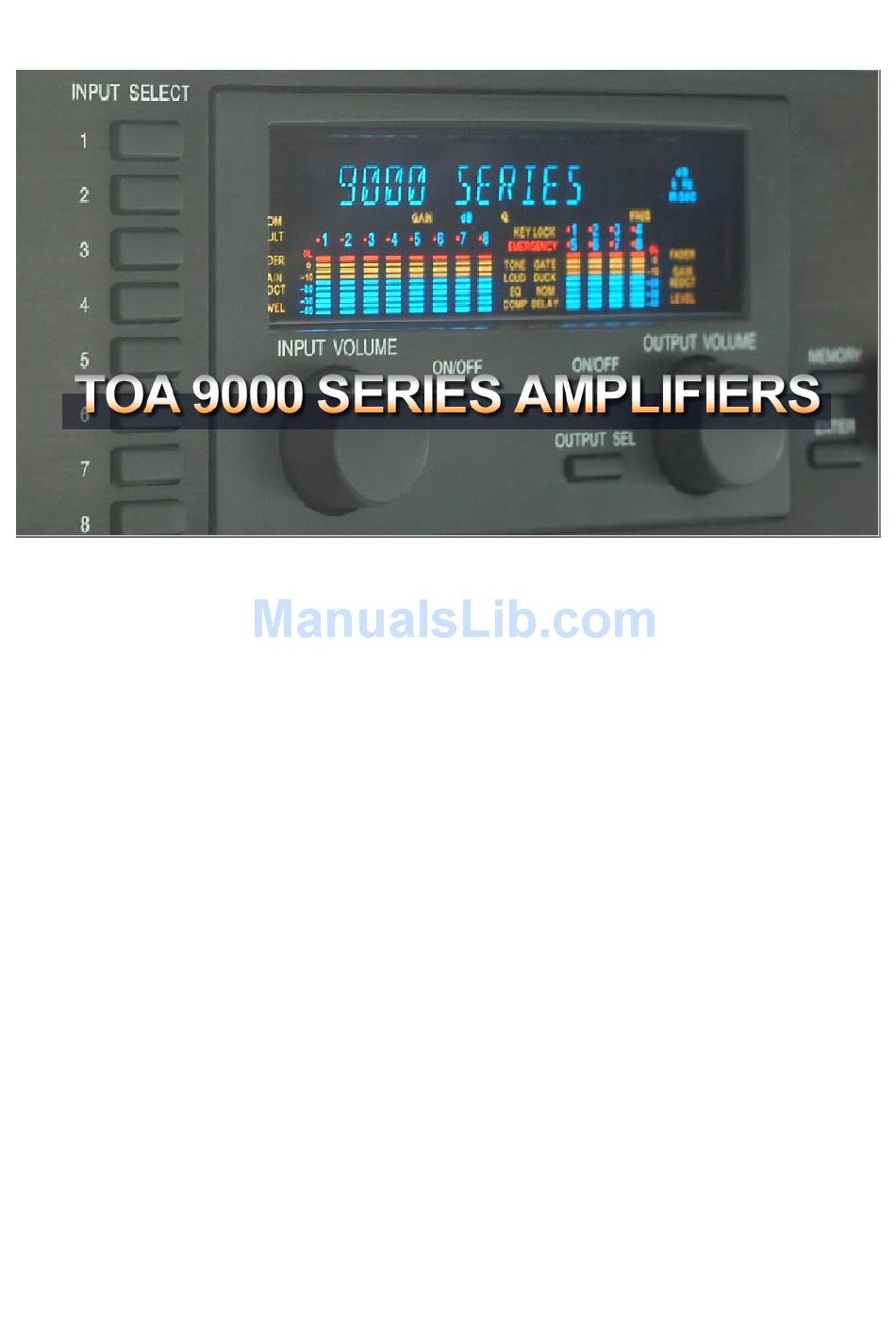

9000 Series Mixer/Amplifiers
RS-232C Protocol Manual
Ver.3.11 2006/11/14
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS 232C and is the answer not in the manual?

Questions and answers

Summary of Contents for Toa RS 232C

  • Page 1 9000 Series Mixer/Amplifiers RS-232C Protocol Manual Ver.3.11 2006/11/14 Page 1 of 24...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SUMMARY……………………………………………………………………... 2. SERIAL PORT SETTING……………………………………………………... 3. COMMAND CONFIGURATION………………………………………………. 4. TRANSMISSION DATA AFTER COMMAND RECEPTION……………….. 5. CONTROL COMMAND AND SETTING VALUE……………………………. 5.1. Channel Fader Gain……………………………………………………………. 5 5.1.1. Channel Fader Gain - Position setting…………………………………… 5 5.1.2 Channel Fader Gain - Step Up/ Step Down…………………………….…. 7 5.2.
  • Page 3: Summary

    1. SUMMARY The RS-232C protocol described in this document is designed to be used to control the 9000 Series Amplifier from a PC and/or remote controller. This specification applies to the 9000 Series firmware version 3.10 or later. Settings that can be controlled are as follows: Channel fader gain •...
  • Page 4: Command Configuration

    3. COMMAND CONFIGURATION Data length Command • • is in the range of 80H to FFH. Command range of 00H to 7FH. Data • Data length (N) refers to the length of the subsequent data of Data 1 to Data N. •...
  • Page 5: Channel Fader Gain

    5.1. Channel Fader Gain 5.1.1. Channel Fader Gain - Position setting Set the input and output channel fader gains to a fixed value position. Note: Command cannot be received during power off. 9000Series Amplifier responds with the same data as that received. 91H, 03H, <Channel Attribute>, <Channel Number>, <Value>...
  • Page 6 Position Gain Position (dB) HEX DEC -∞ -70.0 -68.0 -66.0 -64.0 -62.0 -60.0 -59.0 -58.0 -57.0 -56.0 -55.0 -54.0 -53.0 -52.0 -51.0 -50.0 -49.0 -48.0 -47.0 -46.0 -45.0 -44.0 -43.0 -42.0 -41.0 -40.0 -39.5 -39.0 -38.5 -38.0 -37.5 -37.0 -36.5 Gain Position (dB)
  • Page 7: Channel Fader Gain - Step Up/ Step Down

    5.1.2 Channel Fader Gain - Step Up/ Step Down Set the input and output channel gain positions by the number of steps. Positions can be varied from the current status by the designated number of steps. One position varies per step. 9000Series Amplifier responds with the same data as that received.
  • Page 8 CHANNEL FADER GAIN – STEP UP / STEP DOWN TABLE Step Up Step Down Gain (dB) HEX DEC +0.5 step +1.0 step +1.5 step +2.0 step +2.5 step +3.0 step +3.5 step +4.0 step +4.5 step +5.0 step +5.5 step +6.0 step +6.5 step +7.0 step...
  • Page 9: Crosspoint Gain

    5.2. Crosspoint Gain Set the crosspoint switch gain. 9000Series Amplifier responds with the same data as that received. This command is enabled when in the mixer mode only. Note: Command cannot be received during power off. 95H, 05H, <Source Channel Attribute>, <Source Channel Number>, <Destination Channel Attribute>, <Destination Channel Number>, <Value>...
  • Page 10 CROSSPOINT GAIN TABLE value Gain (dB) HEX DEC -∞ -70.0 -69.0 -68.0 -67.0 -66.0 -65.0 -64.0 -63.0 -62.0 -61.0 -60.0 -59.0 -58.0 -57.0 -56.0 -55.0 -54.0 -53.0 -52.0 -51.0 -50.0 -49.0 -48.0 -47.0 -46.0 -45.0 -44.0 -43.0 -42.0 -41.0 -40.0 -39.0 -38.0 Value...
  • Page 11: Preset Memory Recall

    5.3. Preset Memory Recall Recalls any desired preset memories. 9000Series Amplifier responds with the same data as that received. Note: Settings to be stored in preset memories are referred to as “SCENE” in mixer mode and “EVENT” in matrix mode. In 'Matrix mode', the command of 'EVENT end' is not provided.
  • Page 12: Channel On/Off

    5.4. Channel ON/OFF This performs ON/OFF setting of the Input or Output channel. 9000Series Amplifier responds with the same data as that received. 92H, 03H, <Channel Attribute>, <Channel Number>, <ON/OFF> <Channel Attribute> 00H: Input channel 01H: Output channel <Channel Number> 00H - 07H (Input channel 1 - 8) 00H - 07H (Output channel 1 - 8) <ON/OFF>...
  • Page 13: Tone Control

    5.6. Tone Control Performs Bass and Treble gain settings of the input/output channels. 9000Series Amplifier responds with the same data as that received.. Note: Command cannot be received during power off. AAH, 04H, <Channel Attribute>, <Channel Number>, <Bass/Treble>, <Value> <Channel Attribute> 00H: Input channel 01H: Output channel <Channel Number>...
  • Page 14 TONE CONTROL GAIN POSITION TABLE Value Gain (dB) -12.0 -11.0 -10.0 -9.0 -8.0 -7.0 -6.0 -5.0 -4.0 -3.0 -2.0 -1.0 Value Step Down -1.0 step -2.0 step -3.0 step -4.0 step -5.0 step -6.0 step -7.0 step -8.0 step -9.0 step -10.0 step -11.0 step -12.0 step...
  • Page 15: Eq Settings

    5.7. EQ Settings Perform EQ settings (ON/OFF, Band number, Gain, Q and Center frequency) of the input/output channels. 9000Series Amplifier responds with the same data as that received. Band number, Gain, Q, and Center frequency cannot be received when EQ is set to OFF. They can be valid only when EQ is set to ON.
  • Page 16 <Q Value> EQ-Q TABLE Value <Freq Value> EQ-FREQUENCY TABLE Value Freq (Hz) 31.5 Example: Setting the Input Channel 1’s EQ to ON, Band No. to 1, Gain value to +2 dB, Q value to 0.7 and Center frequency to 40 Hz. A1H, 07H, 00H, 00H, 01H, 00H, 0EH, 02H, 03H Value Freq (Hz)
  • Page 17: Loudness Compensation Settings

    5.8. Loudness Compensation Settings Perform loudness compensation settings of the Input / Output channels. 9000Series Amplifier responds with the same data as that received. Note: Command cannot be received during power off. ABH, 03H, <Channel Attribute>, <Channel Number>, <OFF/ON> <Channel Attribute> 00H: Input channel 01H: Output channel <Channel Number>...
  • Page 18: Filter Settings

    5.9. Filter Settings Perform Filter (HPF/LPF) settings of Input / Output channels. 9000Series Amplifier responds with the same data as that received. Note: Command cannot be received during power off. A2H, 04H, <Channel Attribute>, <Channel Number>, <HPF/LPF>, <Value> <Channel Attribute> 00H: Input channel 01H: Output channel <Channel Number>...
  • Page 19: Input Sensitivity Setting

    5.10. Input Sensitivity Setting Performs input sensitivity setting of Input channel. 9000Series Amplifier responds with the same data as that received. Input sensitivity setting is enabled only for the channel on which the D-001T or AN-001T is used. Note: Command cannot be received during power off. ACH, 02H, <Channel Number>, <Value>...
  • Page 20: Channel Name Request

    Channel Name Request Reads input and output channels’ names. The 9000 Series Amplifier responds with the channel name to this command. F0H, 03H, 40H, <Channel Attribute>, <Channel Number> <Channel Attribute> 00H: Input channel 01H: Output channel <Channel Number> 00H - 07H (Input channel 1 - 8) 00H - 07H (Output channel 1 - 8) Example: Acquiring the Input Channel 1’s name.
  • Page 21: Speaker Preset Setting

    Speaker Preset Setting Recalls speaker EQ preset values for specific TOA model speakers. 9000Series Amplifier responds with the same data as that received. Note: Command cannot be received during power off. ADH, 02H, <Output Channel Number>, <Value> <Output Channel Number> 00H - 07H (Output channel 1 - 8) <Value >...
  • Page 22: Command List

    8. COMMAND LIST Function 91H, 03H, <Channel Attribute>, <Channel Number>, Channel fader gain <Value> (position) 93H, 03H, <Channel Attribute>, <Channel Number>, <Value> (step) 95H, 05H, <Source Channel Attribute>, <Source Channel Crosspoint gain Number>, <Destination Channel Attribute>, <Destination Channel Number>, <Value> F1H, 02H, 00H, <Preset Number>...
  • Page 23: Communication Examples

    9. COMMUNICATION EXAMPLES Command Input ch1 Fader gain=0dB Input ch1 Fader gain 1 step Output ch1 Fader gain=-∞dB Input ch1->Output ch1 0dB Input ch3->Output ch5 -20dB Input ch4->Output ch1 1 step Event1 Start (Matrix) Scene5 Load (Mixer) Input ch1 OFF Output ch2 ON Power OFF Power ON...
  • Page 24 Command Input ch1 Insense -24dB Output ch2 SpPreset F-122 Input ch3 Phantom ON Input ch1 Name “INPUT1” Controller Input sensitivity setting ACH, 02H, 00H, 02H Speaker preset setting ADH, 02H, 01H, 01H Phantom power setting 87H, 02H, 02H, 01H Channel name recall F0H, 03H, 40H, 00H, 00H Page 24 of 24 A-9000 Response...
