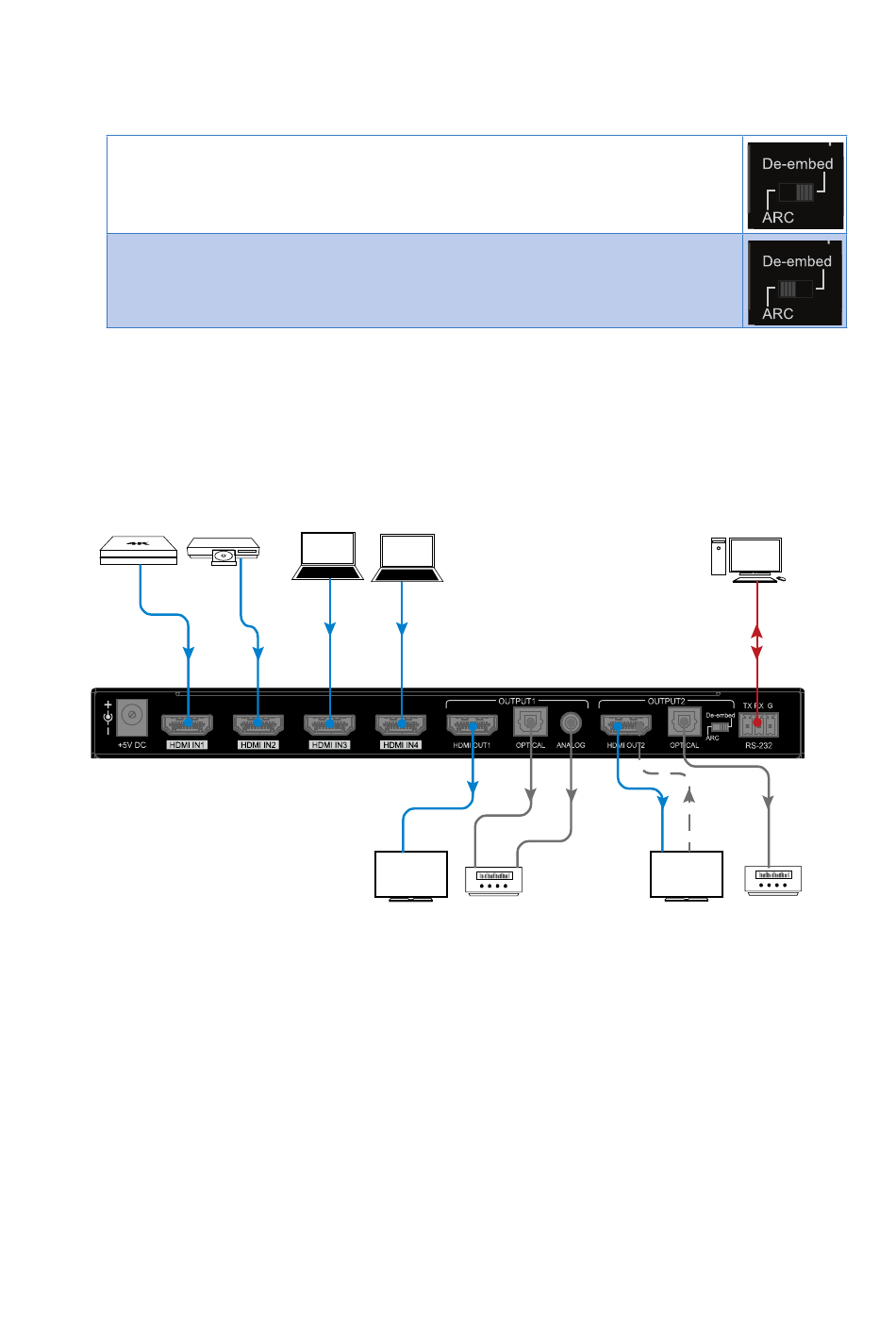

3. Connect SPDIF OUT and AUDIO OUT
Connect audio devices to SPDIF OUT ports of OUTPUT1&2, and connect an audio device
to AUDIO OUT port of OUTPUT1.
Slide the DIP switch to De-embedded mode, the SPDIF OUT of OUTPUT2
will output the digital de-embedded audio from HDMI OUT2.
Slide the DIP switch to ARC mode, the SPDIF OUT of OUTPUT2 will output
the ARC audio from the TV connected to HDMI OUT2.
4. Connect for additional control options:
•
RS232 control: Connect a control PC or control system to RS232 port of the Matrix.
•
IR control: The IR Remote provided is for controlling the Matrix through IR signal.
5. Connect the DC 5V power cord provided.
6. Power on all attached devices.
Blu-ray Player
4K Media Player
HDMI IN
Laptop
Laptop
HDMI IN
HDMI IN
HDMI IN
HDMI OUT
Display
10
AUDIO OUT
SPDIF OUT
HDMI OUT
AV Receiver
PC
RS232
ARC OUT
AV Receiver
Display
