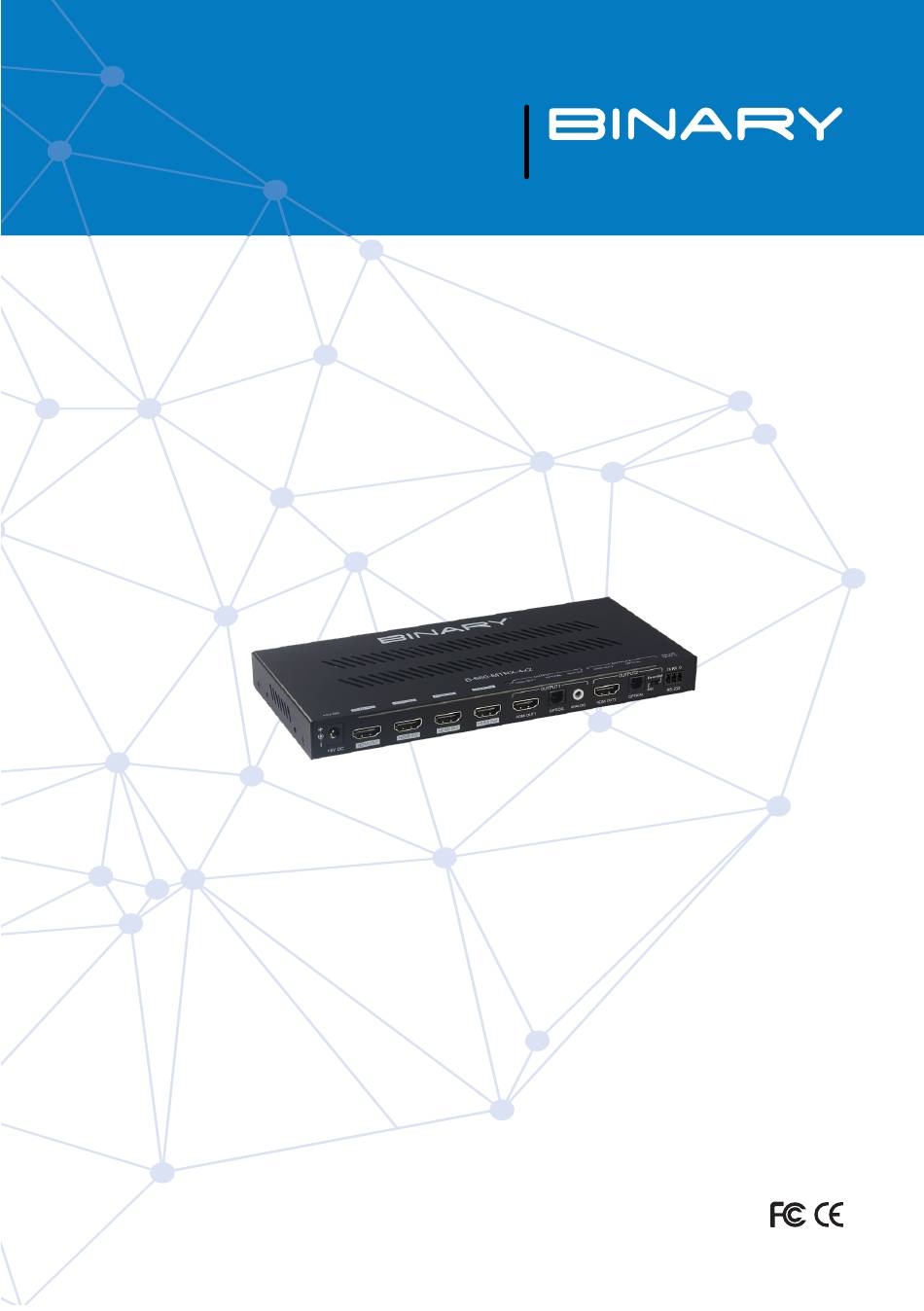

- Page 1 4K HDR HDMI Matrix Switcher - 4x2 B-660-MTRX-4X2 INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
- Page 3 FCC WARNINGS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
Product Overview ............................5 Features ................................5 Package Contents ............................5 Device Layout ..............................6 4.1. B-660-MTRX-4x2 Front Panel ......................6 4.2. B-660-MTRX-4x2 Rear Panel ......................7 Installation & Wiring ............................. 8 5.1. Installation ............................. 8 5.2. Wiring ..............................8 IR Remote control ............................10... -
Page 5: Product Overview
PRODUCT OVERVIEW The B-660-MTRX-4x2 is a 4K HDR 4x2 HDMI Matrix Switcher and allows up to four Ultra High Definition 4K HDR or 1080p HD inputs to be independently routed to two Ultra HD displays. For HDMI output 1, there is a 3.5mm analog and SPDIF optical audio output allowing audio to be extracted from the HDMI source connected to output 1. -
Page 6: Device Layout
DEVICE LAYOUT 4.1. B-660-MTRX-4x2 Front Panel 1. POWER LED On: The device is powered on. Off: The device is powered off. 2. OUTPUT1 SWITCH BUTTON Press to cycle through the active sources that are connected and available for Output 1. -
Page 7: B-660-Mtrx-4X2 Rear Panel
4.2. B-660-MTRX-4x2 Rear Panel 1. +5V DC Connect to the provided DC 5V power adapter. 2. HDMI IN (1-4) Connect to HDMI sources such as Blu-ray player, Media Player, or PC. 3. HDMI OUT1 Connect to an HDMI display such as a TV, Flat Panel Display, or Projector. -
Page 8: Installation & Wiring
INSTALLATION & WIRING 5.1. Installation The B-660-MTRX-4x2 can be placed on a solid and stable surface, installed on a standard equipment rack shelf, or mounted to a wall or distribution box. When installed on a rack shelf, wall, or distribution box we strongly recommend that the included mounting ears be used to secure the device. - Page 9 3. Connect SPDIF OUT and AUDIO OUT Connect audio devices to SPDIF OUT ports of OUTPUT1&2, and connect an audio device to AUDIO OUT port of OUTPUT1. Slide the DIP switch to De-embedded mode, the SPDIF OUT of OUTPUT2 will output the digital de-embedded audio from HDMI OUT2. Slide the DIP switch to ARC mode, the SPDIF OUT of OUTPUT2 will output the ARC audio from the TV connected to HDMI OUT2.
-
Page 10: Ir Remote Control
IR REMOTE CONTROL The Matrix can be controlled by the IR Remote provided by pointing it directly at the IR sensor on front panel. This allows for selecting inputs (source) for each output (display) as well as power On and Off for connected CEC-enabled displays. Note: •... -
Page 11: Rs-232 Control
Connect a control PC or control system to the RS232 port of the receiver. API command for RS232 control is available in the separate document “API Command Set_ B-660-MTRX-4x2”. A professional RS232 serial interface software (e.g. Serial Assist) may be needed as well. -
Page 12: Specifications
SPECIFICATIONS Technical 4 x HDMI IN, 2 x HDMI OUT, 1 x RS-232 (RJ45), 2 x SPDIF OUT ( Digital), Input/Output Port 1 x AUDIO OUT (Analog) 1 x DC 5V IN HDMI with 4K@60Hz 4:4:4, HDR 10, Input/Output Signal Type HLG &... -
Page 13: Warranty
