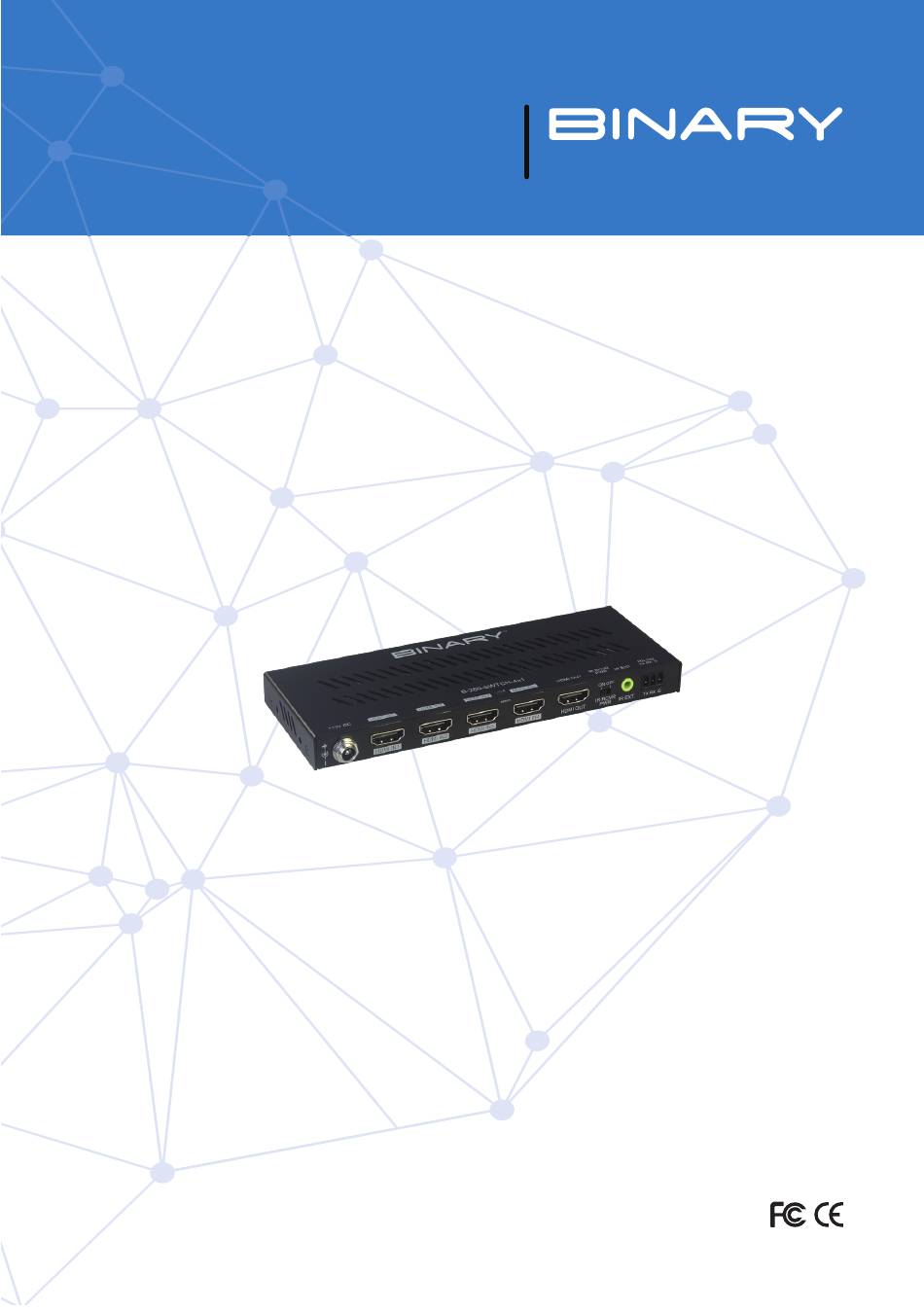

- Page 1 4K HDR Switch with IR - 4x1 B-260-SWTCH-4X1 INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
- Page 3 FCC WARNINGS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
CONTENTS Product Overview ................................5 Features .....................................5 Package Contents ................................5 Device Layout ..................................6 4.1. B-260-SWTCH-4x1 Front Panel ........................6 4.2. B-260-SWTCH-4x1 Rear Panel ........................6 Installation & Wiring ..............................7 5.1. Installation ................................7 5.2. Wiring ..................................8 Control of the Switch ..............................9 6.1. Front Panel Button Control ..........................9 6.2. -
Page 5: Product Overview
Thank you for purchasing this product. For proper installation and optimum performance, please read the instructions in this manual. B-260-SWTCH-4x1 Switch features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K@60Hz 4:4:4 8bit, enabling four Ultra HD sources to be switched to one Ultra HD or non-Ultra HD display. -
Page 6: Device Layout

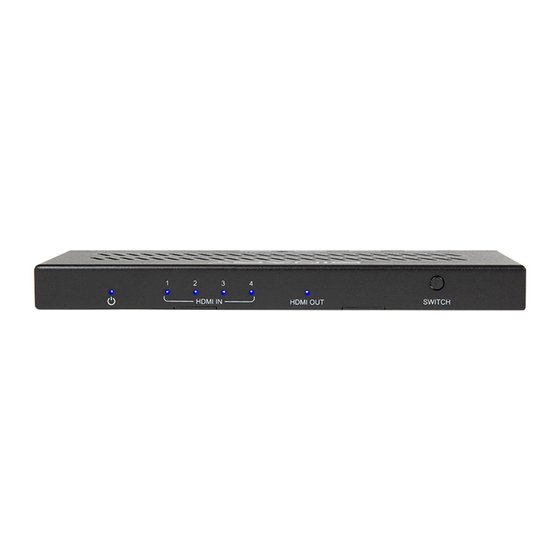

DEVICE LAYOUT 4.1. B-260-SWTCH-4x1 Front Panel 1. POWER LED On: The device is powered on. Off: The device is powered off. 2. HDMI IN 1-4 LED On: The HDMI IN source is selected and active. Off: The HDMI source is not selected nor active. -
Page 7: B-260-Swtch-4X1 Rear Panel
4.2. B-260-SWTCH-4x1 Rear Panel 1. +12V DC Connect the provided 12Vdc power supply’s cord and tighten it in place. 2. HDMI IN (1-4) Connect to the output of HDMI source(s) to the input(s) you require. 3. HDMI OUT Connect to the input of a HDMI display or other similar device. -
Page 8: Installation & Wiring
INSTALLATION & WIRING 5.1. Installation The B-260-SWTCH-4x1 can be placed on a solid and stable surface, installed on a standard equipment rack shelf, or mounted to a wall or distribution box. When installed on a rack shelf, wall, or distribution box we strongly recommend that the included mounting ears be used to secure the device. - Page 9 4K Media Player Laptop Laptop Desktop PC HDMI In HDMI Out Display Application Diagram 1: Basic Wiring Diagram 5.3. IR CONTROL WIRING The following diagrams show the different connections and devices used to control the switcher via IR. 4K Media Player Laptop Laptop Desktop PC...
- Page 10 4K Media Player Laptop Laptop Desktop PC HDMI In HDMI Out IR Controller IR Receiver PWR - O (Sold Separately) Display Application Diagram 3: IR Control via 3 Party Controller 5.4. RS-232 Control Wiring The following diagram shows the connection used to control the switcher via RS-232. 4K Media Player Laptop Laptop...
-
Page 11: Control Of The Switch
6.2. IR Remote Control** B-260-SWTCH-4x1 Switch can be controlled via IR using the provided IR Remote or an IR Control system. In order to use the included IR Remote an IR receiver will need to be purchased separately. -
Page 12: Rs-232 Control
6.3. RS-232 Control Advanced users may also choose to control the device through RS232 CONTROL port. A UART cable is needed to connect a PC or control system to the device. The API command for RS232 control is available below. A professional RS232 serial interface software may be needed as well. -
Page 13: Specifications
WARRANTY 2-Year Limited Warranty This Binary product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled. - Page 14 Rev: 200312-170036 © 2020 Binary...
