S-5104-TRM
Winslet
Tub/Hand Shower Trim
®
Operation & Maintenance Manual
Model Numbers
S-5104-TRM
Tub/Hand Shower Trim
Modifications
CG
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-462HSB
30" slide bar in place of wall cradle on
hand shower units
-STN
Satin nickel finish
Note: Append appropriate -suffix to model number.
Specifications

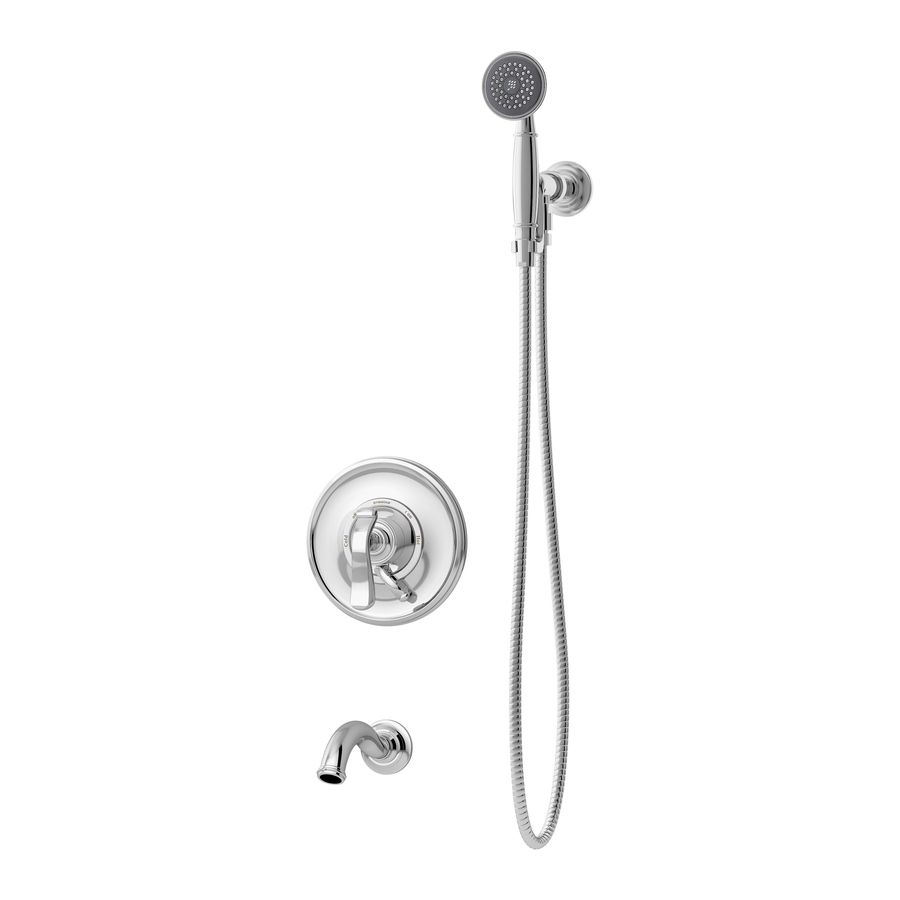

Tub/hand shower trim with lever handle and secondary
integral diverter handle includes wall cradle for hand
shower mounting, non-diverter tub spout, in-line vacuum
breaker, flexible metal hose and 1 mode hand shower
with 2.5 gpm (9.5 L/min) flow restrictor. Components
made from metal and nonmetallic materials plated in
standard polished chrome finish.
Compliance
-ASME A112.18.1; CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Advertisement
Related Manuals for Symmons Winslet S-5104-TRM
Summary of Contents for Symmons Winslet S-5104-TRM
- Page 1 30" slide bar in place of wall cradle on hand shower units -STN Satin nickel finish Warranty Limited Lifetime - to the original end purchaser in consumer installations. 5 Years - for commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Note: Append appropriate -suffix to model number.
- Page 2 Dimensions Measurements 2 1/8", 54 mm Ø 7 1/2", 191 mm 6", 152 mm right or left 40", 1,016 mm Male 1/2" IPS thread must protrude 1/2" from finished wall 2 5/8", 67 mm 32", 813 mm 12", 305 mm 2 7/8", 73 mm 3 1/2", 89 mm 1/2"...
- Page 3 Parts Breakdown Replacement Parts Item Description Part Number Vacuum Breaker EF-104 60" Hose Wall Cradle T-613 Wall Cradle Flange T-606 Handle T-611 Set Screw Dome Cover T-608-PL Shower Escutcheon Mounting Screws T-609A-NS-K001 Mounting Plate Hand Shower 462W Diverter Lever Handle T-610 Tub Spout 512TS...
-
Page 4: Installation
Installation Note: 4) Install dome cover (E) to valve by 7) Attach wall cradle (B) to wall cradle For valve body installation, please turning clockwise. flange (C) turning clockwise to see valve body installation guide. tighten. 1) Install mounting plate (H) onto shower valve (S-46-2-BODY). -
Page 5: Troubleshooting Chart
For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800)796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2018 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3078 REV A 080118...
