ELITE XT - HOW TO INCREASE CLAMPING FORCE
INSTRUCTIONS

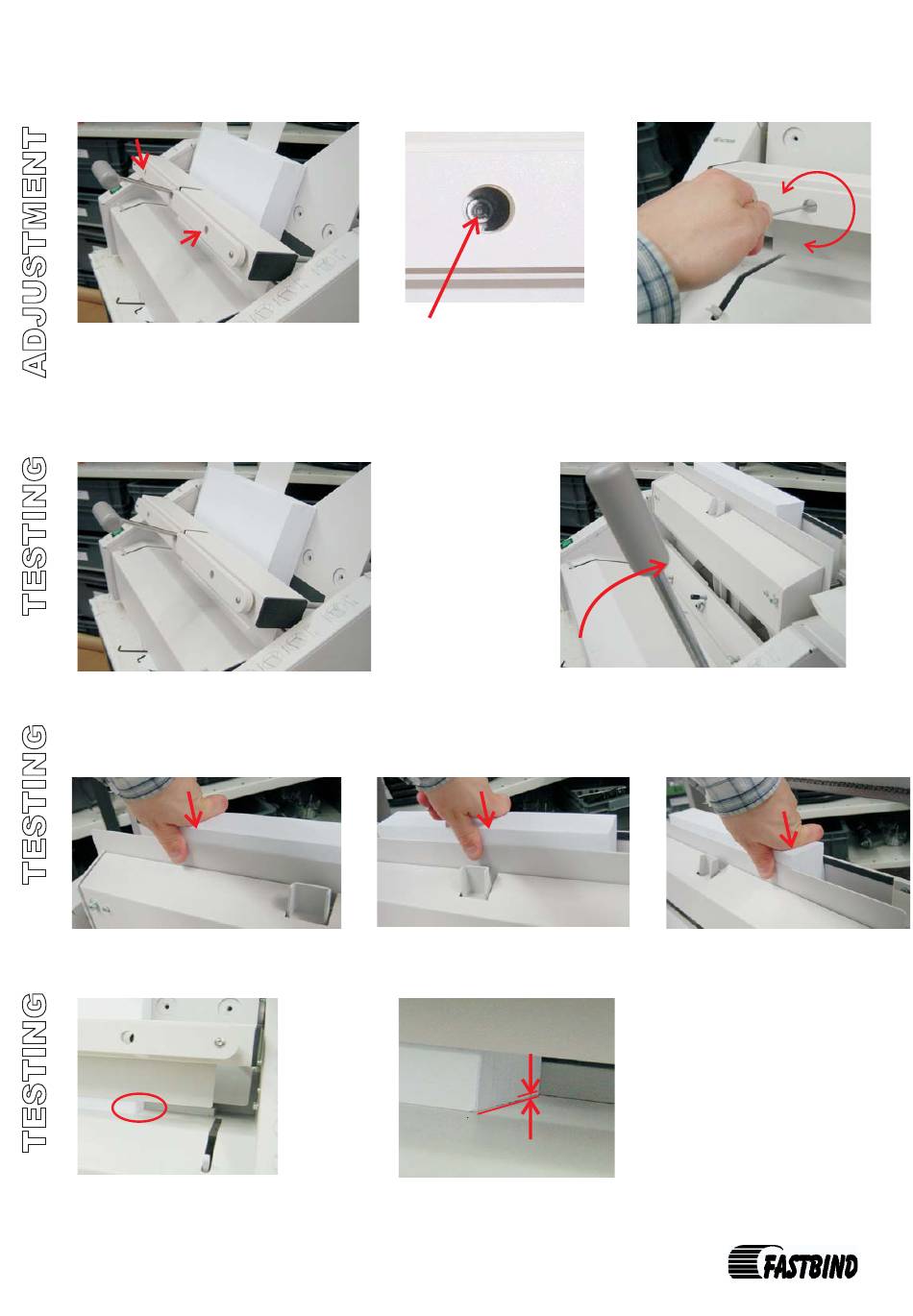

5) Clamp strength adjustment:
both left and right locking has to
be adjusted!!!
6) Clamp strength test: take a 30 - 50 mm thick
block of 80g normal copy paper. Place the block
to the clamp. Lock and close the clamp.
8) Press the paper block down from left side, center and ride side.
9) Turn table back down and check if there is any gap between table and papers.
The larger the gap, the more clamp yields (not strong enough).
Retaining screw
to adjust clamping
strength. Use
2,5 mm hex key.
7) Turn table up.
Page 2 of 3
-
+
Tighten clamp: turn clockwise
Loose clamp: turn counter
clockwise.
