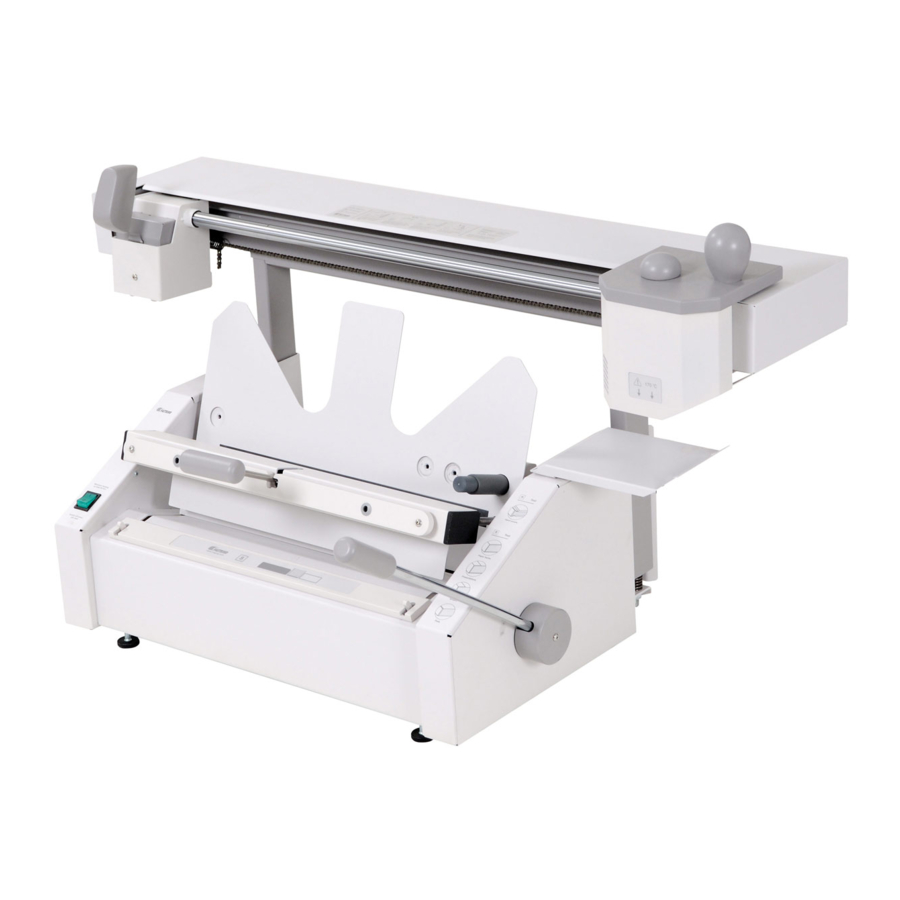

- Page 3 Reservoir cap 0629 a1 Hand knob 1802 STD Washer 5 mm 1809 STD Hex socket screw M5 Part no+ version: Name: Page: 17-01 3352 b2 Elite XT w w w . m a p i n g . c o m...
- Page 4 ITEM NO. Versio Name QTY. 3331 b3 Frame A3 HKP 3509 a3 Bearing 0615 a2 Bearing 3570 a1 Bearing 3560 b1 Gear peg 3511 b3 Back support soft 3634 a1 Positioning plate 3635 a2 Rail support 3548 STD Retaining screw M10 1838 STD Hexagon nut M10 3667 STD...
- Page 5 ITEM NO. Versio Name QTY. 3510 a2 Axis 3621 STD Retaining ring d19 3623 STD Retaining screw M5x8 3639 a2 Nip primary axis 3551 STD Wedge 3555 a3 Spurwheel XT 2 3741 STD Shimming washer 14x20x1,0 Name: Part no+ version: Page: 17-03 3334 c1...
- Page 6 ITEM NO. Versio Name QTY. 3732 a2 Table A3 KP 4015 a2 Table shaft HKP 3643 a2 Spring link 3663 STD Retaining screw M8x10 Name: Part no+ version: Page: 17-04 3334 c1 Frame w w w . m a p i n g . c o m...
- Page 7 ITEM NO. Versio Name QTY. 3509 a3 Bearing 3565 a4 Spurwheel XT 3 4022 a3 Pivot shaft short 3551 STD Wedge 3561 b1 Gearbox frame 4021 b4 Spurwheel XT 2 3552 a3 Bearing 3650 a2 Bearing 2283 STD Blind rivet nut M5 1829 STD Hexagon nut M5 3740 STD...
- Page 8 ITEM NO. ID Versio Name QTY. 3377 a3 Clamp A3 3373 a1 Clamp guide rod XT 3351 a1 Guide support 3645 a1 Softcover paperguide 3500 c2 Table back cover 3562 a4 Cable bracket 2317 STD Washer -A M5 1813 STD Panel screw 5x12 1808 STD Hex socket screw M5x12...
- Page 9 ITEM NO. Versio Name QTY. 4027 a3 Side panel right 3568 b1 Side panel left 3563 a1 Nip return spring 2261 STD Plate screw 2,9x9,5 Name: Part no+ version: Page: 17-07 3334 c1 Frame w w w . m a p i n g . c o m...
- Page 10 ITEM NO. Name QTY. 3722 Main handle 3394 Soft cover nip tool 3721 Cup 1813 Panel screw 5x12 1843 Retaining screw M6 Name: Part no+ version: Page: 17-08 3334 c1 Frame w w w . m a p i n g . c o m...
- Page 11 QTY. Versio Name ITEM NO. 26163 a1 Bar assembly 3376 Rotary unit A3 KP 3379 Clamp handle A3 3542 End plug 4042 Spring bracket 3563 Spring XT clamp 4043 Locking unit A3 KP 4050 Plug 2246 Retaining screw M5x10 Part no+ version: Name: Page: c Maping Co 2011.
- Page 12 ITEM NO. ID Versio Name QTY. 3353 b1 Elite XT rail 3357 a2 Elite XT rail guide rod 3233 a4 Applicator assembly 2899 a2 Roughener 3366 a4 Guide pin 3514 a5 Elite XT rail cover 3538 b1 Elite XT chain with fasteners...
- Page 13 ITEM NO. ID Versio Name QTY. 0405 a3 Handle holder 4126 STD Plate screw 0327 a1 Roughener roller 2888 a1 Roughner handle 1524 a2 Roughener cover 1813 STD Panel screw 5x12 1829 STD Hexagon nut M5 2385 a1 Pull spring 1809 STD Hex socket screw M5 2271 STD...
- Page 14 ITEM NO. ID Versio Name QTY. 3804 a2 Applicator body pre-assy 3229 a3 Twin groove pin d8x30 1163 a1 Chain pulley 1173 a1 Driving chain wheel 0695 a1 Thermal resistor assembly 3807 a1 Normal thermostat 175 KO 1827 STD Retaining screw 5x10 2261 STD Plate screw 1849 STD...
- Page 15 BEARING ROCKER ADJUSTMENT 1. Loosen the upper locking screw from the bearing rocker. Locking screw ( Feeler gauge 2. Insert 0,15 mm feeler gauge between the rail and upper ball bearing. 0,15 mm 3. Use a screwdriver to lever the bearing rocker and tighten the locking screw (6 Nm torque).
- Page 16 Back cover Brown Connection box of Back case Black glue applicator White Side box left Black Heating Resistor W1+F2 Glue applicator 1.8.2006 PAR ELITE XT WIRING DIAGRAM 17-14 www.maping.com (c) Maping Co...
