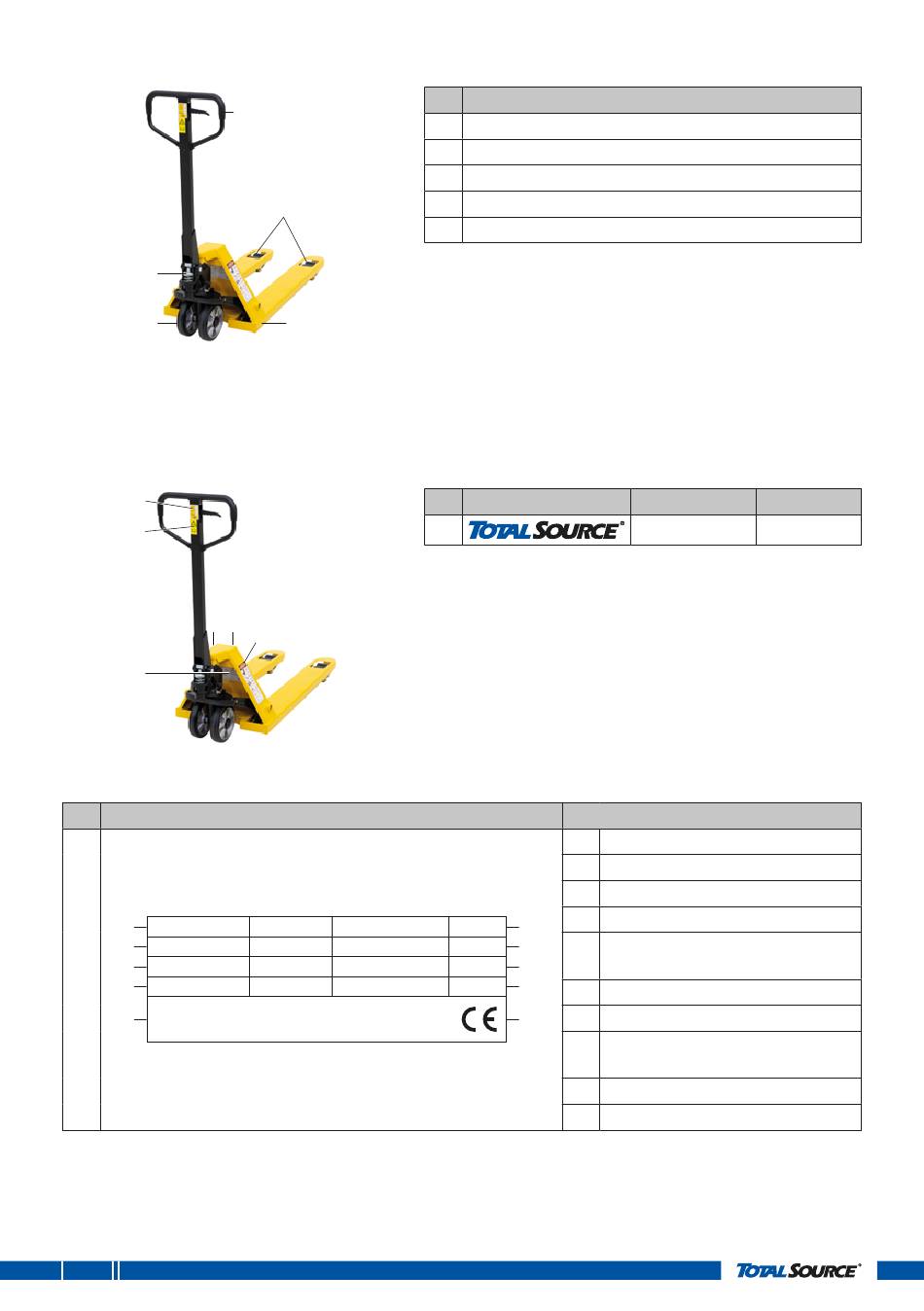

Main Components Of The Product; Placement Of The Decals; Type Plate - Total Source TRP0007 Operating Manual

2.2.

Main components of the product

2
3
2.3.

Placement of the decals

The safety and warning labels should be placed as described in the pictures below.
See chapter 3 for the explanation of the safety warnings. If the decals are damaged or
missing, replace them.
6
3
1 4
2
2.4.

Type plate

N°
2
1
Type of pallet truck
2
Serial n°
3
Capacity
4
Net weight
Manufactured outside the EU for:
5
TVH PARTS HOLDING NV
Brabantstraat 15 • 8790 Waregem • Belgium
8/32
1
5
4
5
Type plate
xxxx Fork length
xxxxxx Width over forks
xxxx kg Wheels
xx kg Year of manufacturing
N° Component
1 Tiller with handle
2 Pump unit
3 Steering wheels
4 Frame
5 Fork wheels
N° Decal
1
Explanation
1 Type of pallet truck
2 Serial number
3 Capacity of the pallet truck
4 Weight of the pallet truck
6
xxxx mm
5 Name and address of the
7
xxx mm
8 manufacturer
xxx
9
xxxx
6 Length of the forks
10 7 Width across the forks
8 Wheel combination
(fork wheels/steering wheels)
9 Year of manufacture
10 CE logo
Explanation Reference
Brand decal 166TA2311
