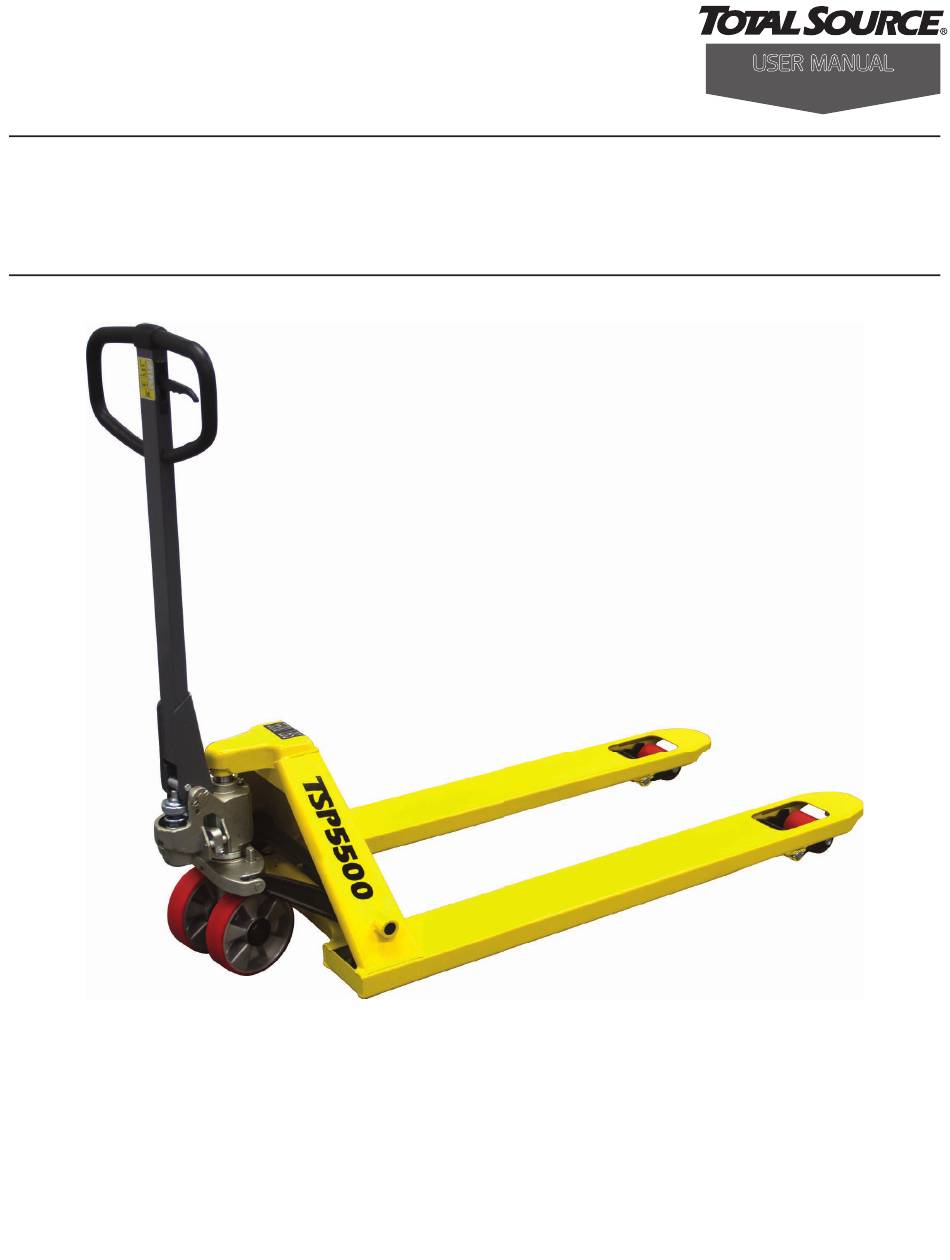

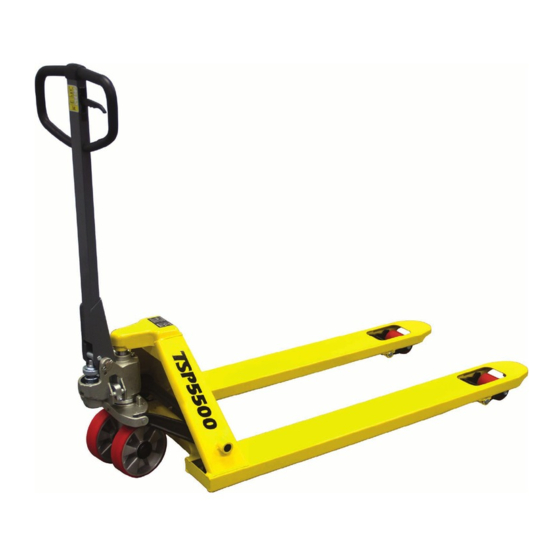

- Page 1 USER MANUAL Operating Instructions Parts List Hand Pallet Truck Note: Operator MUST read and understand this operating manual before using this Hand Pallet Truck.
- Page 2 Thank you for using our pallet truck. Your pallet truck is made of high quality steel and is designed for the horizontal lifting and transport of loads on a pallet or standardized containers on a level, fixed base. For your safety and correct operation, please read these instructions carefully before use.
- Page 3 1. TO ATTACH DRAW-BAR TO PUMP UNIT If you have purchased a pallet truck in a box, some assembly is required. You will need a hammer, pliers and a spanner. Parts included with the pallet truck are: one axle with hole (105A), two elastic pins (106) *one is in the axle (105A).
- Page 4 DAILY CARE Daily care of the pallet truck can limit general wear and tear. Special attention should be paid to the wheels and axles as thread, rags, etc. may get caught in the wheels. The forks should be unloaded and lowered to the lowest position when not in use. LUBRICATION All bearings and shafts are provided with long-life grease at the factory.
- Page 5 5. TROUBLESHOOTINg Problem Cause Solution 1 The forks will not rise to Not enough hydraulic oil Add oil maximum height 2 The forks cannot be • No hydraulic oil • Add oil raised • The oil has impurities • Change the oil •...
- Page 7 List of Draw-Bar Description Qty. Remark Release Rod Chain Adjusting Bolt Adjusting Nut 105A Axle with Hole Elastic Pin Bushing Roller Pin Pressure Roller 109A Bushing 110A Handle Plain Climax Handle 110B Handle Complete Climax Handle Type WP Stop Rubber Elastic Pin Blade Spring Spring...
- Page 10 List of Fork Frame Description Qty. Remark Description Qty. Remark Fork Frame Fork Frame 202G Bolt For Type G 223D* Shaft for Roller Rock - Arm 224D* Linking Plate For Type D Bushing Elastic Pin 8 or 2 Shaft Washer 8 or 4 Bushing Bearing...
- Page 11 Type A Hydraulic Pump Description Qty. Remark Description Qty. Remark Spring Cap Spring Cap Spring Elastic Pin Pump Piston Valve Cartridge Dust Ring 322A Pump Body Seal Seal Washer Dust Cover Screw Plug Locking Ring Seal Washer O-Ring Bearing Dust Ring Loading Wheel Piston Rod Elastic Pin...
