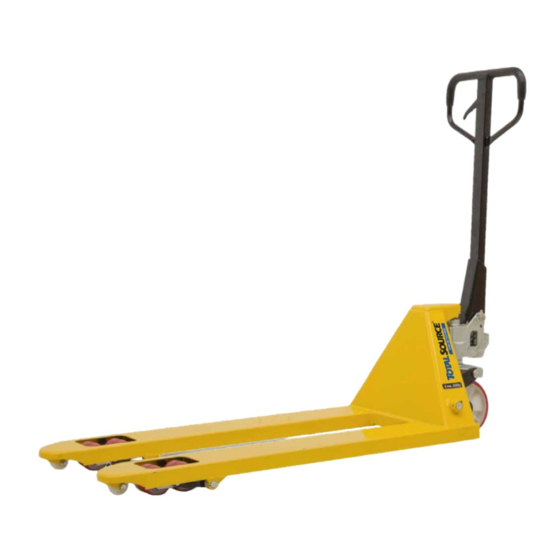

Pallet truck
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

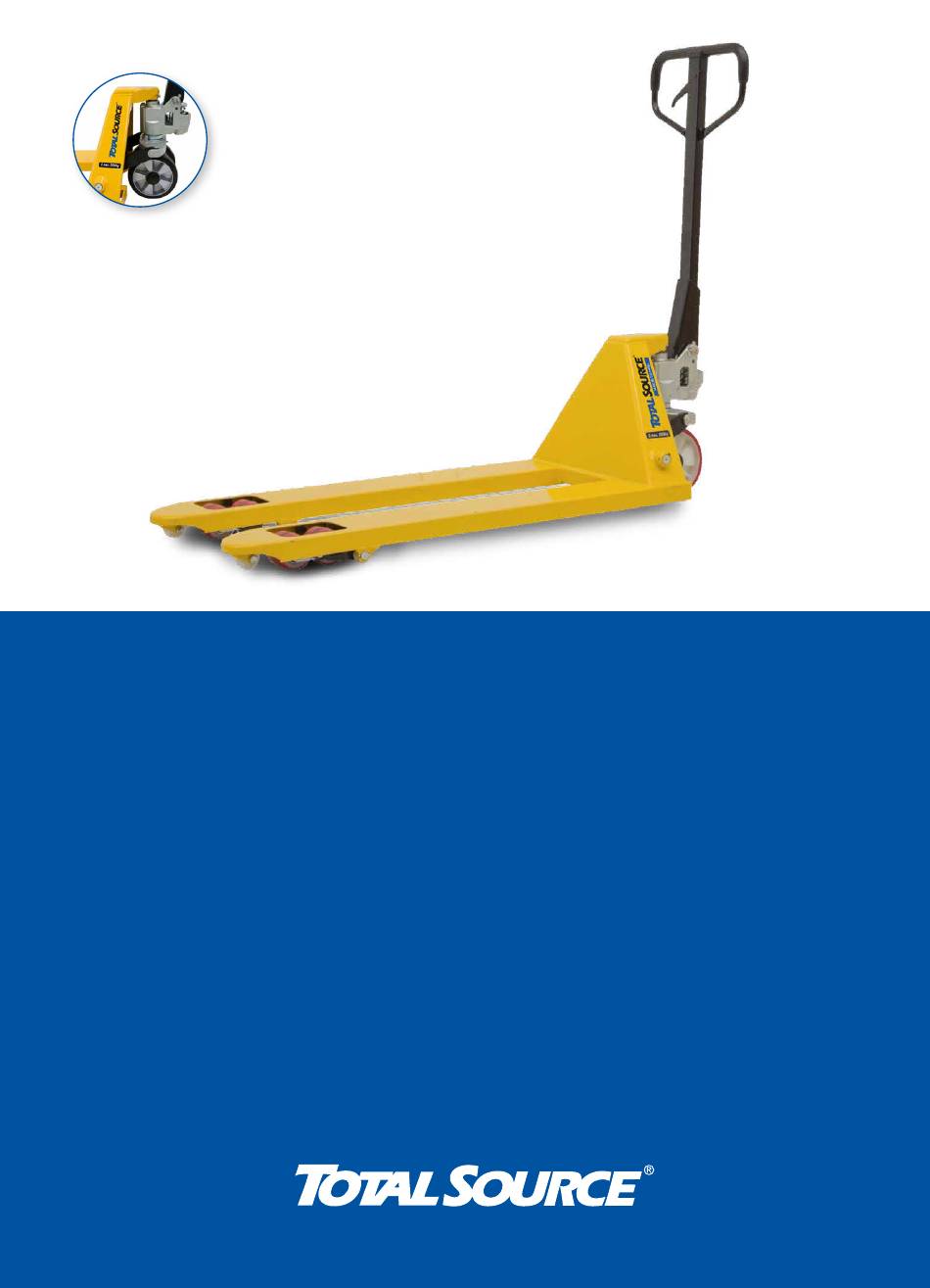

OPERATION MANUAL
PALLET TRUCK
T R P 0 0 0 3 - T R P 0 0 0 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRP0003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Total Source TRP0003

Summary of Contents for Total Source TRP0003

  • Page 1 OPERATION MANUAL PALLET TRUCK T R P 0 0 0 3 - T R P 0 0 0 4...
  • Page 2 © 05-2019. TotalSource and TVH are registered trademarks. TVH Parts Holding nv, Brabantstraat 15, B-8790 ® ® Waregem. TVH is a supplier of after-market spare parts and accessories that are suitable for the maintenance and repair of OEM-equipment. All sales are subject to the general and special terms & conditions of sale on www.tvh.com/avv.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. FOREWORD ........... . . 4 2.

  • Page 4: Foreword

    1. FOREWORD NOTE: Operator MUST read and understand these operating instructions before using this Pallet Truck. ATTENTION: · The waste packages should be sorted and put into the solid dustbin according to the materials, and be collected by local special environment- protection bureau.

  • Page 5: Correct Application

    2. CORRECT APPLICATION This truck is a manually operated Pallet Truck designed to lift and transport the rated load on industrial pallets. Do not lift or carry persons and don’t use this truck for other purposes than its intended use. A wrong usage can cause human injuries or can damage equipment.

  • Page 6: General Specifications

    3. GENERAL SPECIFICATIONS Capacity (kg) 2000/2500/3000 Max fork height (mm) Min fork height (mm) Fork length (mm) 800/1000/1150/1500/1800/2000/2500 Width overall forks (mm) 540/685 Individual fork width (mm) Load wheel Diameter (mm) 80 mm nylon, polyurethane Steering wheel Diameter (mm) 200 mm nylon, polyurethane, rubber Materials and specification are subject to change without notice.
  • Page 7 Description of safety devices and warning labels. The safety and warning labels should be placed according to figure 3. The advices on the truck are additional to this handbook. Please follow the operating instructions. If the decals are damaged or missing, please replace them.

  • Page 8: Assembly Of The Tiller Handle

    4. ASSEMBLY OF THE TILLER HANDLE 1. Remove the cardboard packaging from the lever. Attention: the axle for the installation of the lever is included in the lever 2. Take the lever, the axle and the split pin. 3. Insert the axle in the pump through the holes in the pump and through the holes of the lever from...
  • Page 9 6. Take the chain in the lever and run it through the hole of the axle. 7. Secure the chain to the lever of the lowering valve. 8. If the pump functions unsatisfactorily: loosen the nut and adjust by tightening or loosening the screw.

  • Page 10: Adjusting The Release Mechanism

    5. ADJUSTING THE RELEASE MECHANISM On the draw-bar of this pallet truck, you can find the control handle which can be regulated in three positions: Lower Neutral Raise Raise Handle down Neutral Handle in centre position Lower Handle up, the lever moves back to the drive position when released If however they have been changed, you can adjust according to following step:...

  • Page 11: Maintenance

    6. MAINTENANCE Your pallet truck is largely maintenance-free. 6.1. Oil Please check the oil level every six months. The oil capacity is about 0.3 litre. Restore the fluid level in the rubber reservoir to 5 mm below the top; this must be with the forks in the lowered position.

  • Page 12: Warning And Safety Instructions

    7. WARNING AND SAFETY INSTRUCTIONS For safe operation of the Pallet Truck, please read all warning signs and instructions here and on the pallet truck prior to use. · Do not operate the pallet truck unless you are familiar with it and have been trained or authorised to do so.
  • Page 13 Per il sollevamento rapido del transpallet: Se il carico pesa meno di 120 kg, il transpallet può utilizzare la funzione di sollevamento rapido. Ciò consente di sollevare le forche dall’altezza minima all’altezza massima con circa 5 corse della maniglia timone. Se il carico pesa più...

  • Page 14: Troubleshooting

    8. TROUBLESHOOTING N° Problem Cause Action The forks can’t be • The hydraulic oil is not • Add hydraulic oil raised up to the enough max height The forks can’t be • No hydraulic oil in the • Fill the oil reservoir raised reservoir •...
  • Page 15 NOTES .....................
  • Page 16 Your distributor: Manufactured outside the EU for: TVH PARTS NV Brabantstraat 15 • 8790 Waregem • Belgium T +32 56 43 42 11 • F +32 56 43 44 88 • info@tvh.com • www.tvh.com...

This manual is also suitable for:

Trp0004
