Recovery Pump RP Lite Model 760R User Manual

Massage system

Hide thumbs

Table Of Contents

RP Lite

Model 760R

Massage System

User Manual

RP Sports

9 Lacrue St. Ste 108

Glen Mills, PA 19342

855.732.7867

www.rpsports.com

L98107R0-G

Table of Contents

Summary of Contents for Recovery Pump RP Lite Model 760R

Page 1 RP Lite Model 760R ® Massage System User Manual RP Sports 9 Lacrue St. Ste 108 Glen Mills, PA 19342 855.732.7867 www.rpsports.com L98107R0-G...
Page 3: Table Of Contents
RP Lite Model 760R RP Sports User Manual ® Table of Contents 1. Important Safety Information ............2. RP Lite® Specifications and Dimensions ........3. Labels ....................4. Indications for Use ................5. About RP Lite® ................. 6. Components of the RP Lite® System ..........
Page 5: Important Safety Information
• Electric Shock Hazard: To prevent electric shock, do not open the console. Do not attempt to service the console yourself. All maintenance tasks should be performed only by Recovery Pump ® trained and authorized service personnel. Service by unauthorized personnel shall void any warranty.
Page 6 RP Lite Model 760R RP Sports User Manual ® Caution: • Do not operate the RP Lite system during transit. ® • Do not store or transport the RP Lite system beyond the specified ® temperature, humidity, and atmospheric pressure range (see Chapter 8 - Maintenance and Storage).
Page 7: Rp Lite® Specifications And Dimensions
2. RP Lite Specifications and Dimensions ® Model: 760R, appliance coupler, transportable, rated: 100-240 VAC, 50-60 Hz Type of protection against electric shock Class II Degree of protection against electric Type BF shock Degree of protection against ingress of IP21 water Degree of safety of application in the Equipment not suitable for use in the...
Page 8: Labels
RP Lite Model 760R RP Sports User Manual ® 3. Labels The following labels and symbols appear on the console, garments and/or packaging. Label Description Location Degree of protection against ingress of IP21 On console base water Read instructions before use On console base Read instructions before use (for China On console base...
Page 9 Label Description Location In accordance with Directive 2014/35/EU electrical equipment designed for use On console within certain voltage limits, and Directive 2014/30/EU electromagnetic compatibility Serial number of the console On console base Fragile, handle with care On package On package and Keep dry console base This side Up...
Page 10 RP Lite Model 760R RP Sports User Manual ® Label Description Location Do not bleach On garment tag Do not iron On garment tag L98107R0-G...
Page 11: Indications For Use
4. Indications for Use RP Lite is indicated for the temporary relief of minor muscle aches and pains, ® and for temporary increase in circulation to the treated areas in people who are in good health. RP Lite simulates kneading and stroking of tissues by using an inflatable ®...
Page 12 RP Lite Model 760R RP Sports User Manual ® Figure 1 - The Massage Sequence L98107R0-G...
Page 13: Components Of The Rp Lite® System

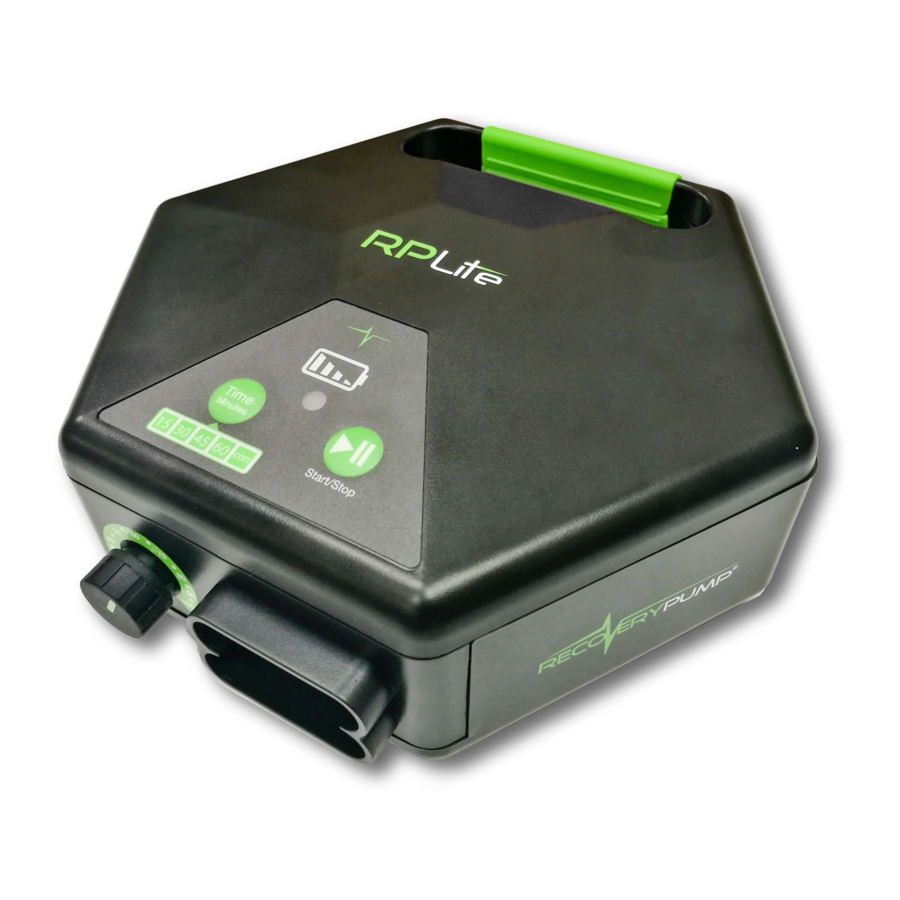

6. Components of the RP Lite System ® The RP Lite Console ® (see Figure 2) The console takes air from the room environment and sends it to individual air chambers in the garment(s). The RP Lite console is powered by either a DC power adapter or by a ®...
Page 14 RP Lite Model 760R RP Sports User Manual ® Caution: • For indoor use only. • Use only the DC power adapter provided with the console. L98107R0-G...
Page 15 Battery Pack (see Figure 5) • The console can operate on battery power for up to eight (8) hours when the battery is fully charged. • Battery may be charged during normal operation of the console. • Battery charging time is up to 8 hours. •...
Page 16 RP Lite Model 760R RP Sports User Manual ® Massage Garments (see Figure 6, Figure 7, Figure 8, and Figure 9) A variety of garments are available. Leg garments are available in several sizes. RecoveryCore™ is adjustable. Figure 6 - Leg Garment Figure 7 - Arm Garment Figure 8 - Mini Boot Garment Figure 9 - RecoveryCore™...
Page 17 L98107R0-G...
Page 18: How To Operate The Rp Lite® System
RP Lite Model 760R RP Sports User Manual ® 7. How to Operate the RP Lite System ® Following is a description of the RP Lite console operating panel and controls ® (see Figure 10). Read this section before operating the console for the first time.
Page 19 Control Function Power Switch: Used to turn On/Off the console (located at back of console, on the left side) DC Adapter Socket: Used for connecting DC power adapter (located at back of console, on the right side) L98107R0-G...
Page 20 RP Lite Model 760R RP Sports User Manual ® Step 1: Set up the RP Lite Console ® L98107R0-G...
Page 21 Caution: When the system has been stored in extreme temperature conditions of 20°C (-4°F) or 70°C (158°F) between uses, wait for two (2) hours before using the system. a. Place the console on a flat stable surface from where it will not slip or fall Make sure the front of the console is at least six inches from the edge of the surface.
Page 22 RP Lite Model 760R RP Sports User Manual ® Note: The console is "multi-voltage" and can be used for travel. An appropriate socket adapter must be used in countries with incompatible wall outlets. L98107R0-G...
Page 23 Step 2: Prepare for Massage • Always wear light clothing underneath the garment, for hygienic reasons, to avoid irritation and to absorb perspiration. • Do not wear the garment directly over bare skin. • Make sure clothing is unrestrictive, absorbent, and free of zippers, buttons, or other items that can rub and chafe under the massage.
Page 24 RP Lite Model 760R RP Sports User Manual ® Figure 11 - Putting on the Leg or Mini Boot Garment L98107R0-G...
Page 25 Arm Garment a. Insert the arm into the garment. b. Pull the garment over the shoulder to cover it. c. Wrap the fastening strap around the body, under the untreated arm. Fasten the strap and adjust the buckle for a comfortable fit. The Arm Garment is designed to fit on either the right or the left arm.
Page 26 You should be able to slip the garment off and pull it on again for each use without completely unzipping the garment. Note: Use only Recovery Pump garments with the RP Lite console. ®...
Page 27 Step 4: Connect the Garment Hose Bundle to the Console L98107R0-G...
Page 28 RP Lite Model 760R RP Sports User Manual ® Note: Hold the console handle with one hand while connecting or disconnecting the hose bundle with your other hand. a. Securely insert the garment hose bundle connectors, with the logo facing up, into the air socket on the console (see Figure 12).
Page 29 Step 5: Set Massage Pressure and Time a. Press and hold the Pressure Knob while setting the pressure to the desired pressure. Once setting the pressure, the Pressure Knob is locked. b. Press the Time button to set massage time. Note: •...
Page 30 RP Lite Model 760R RP Sports User Manual ® Step 7: Start the Massage Now you are ready to operate the console and begin your massage. Note: Hold the console handle with one hand while turning On/Off the Power Switch with your other hand. a.
Page 31 Step 8: End, Stop, Restart, Pause, or Resume the Massage When the massage time is complete, the massage stops. • To stop the massage at any time, press the Start/Stop button. • To pause the massage without resetting the time, press and hold the Start/ Stop button for 3 seconds.
Page 32: Maintenance And Storage
RP Lite Model 760R RP Sports User Manual ® 8. Maintenance and Storage Cleaning the Console Caution: Disconnect the console from electrical outlet before cleaning. Let it dry completely before reconnecting it to the electrical outlet. • Wipe clean using a slightly damp cloth. •...
Page 33 Storage a. Keep the console, hoses and garments away from direct sunlight. b. Store in a dry, shaded place (see caution below). c. Do not twist or fold the garment hoses. d. Store the DC power adapter lightly wrapped and secured. e.
Page 34 RP Lite Model 760R RP Sports User Manual ® Replacing the Battery L98107R0-G...
Page 35 Note: Use only batteries supplied by Mego Afek AC Ltd. To replace the battery: a. Open the battery compartment cover, located at the bottom side of the console, under the carrying handle (see figures below). b. Disconnect the battery and remove it from the battery compartment (see figures below).
Page 36: Troubleshooting
RP Lite Model 760R RP Sports User Manual ® 9. Troubleshooting L98107R0-G...
Page 37 Note: Before continuing, inspect all accessories for any defects. Table 5 - Troubleshooting Guide Symptom Possible Cause Corrective Action The console is not No electricity Inspect the electrical wall outlet. working. DC power adapter Verify that the DC power adapter cable is connected to the DC adapter socket on the console, and the DC power adapter is connected to the...
Page 38: Warranty And Contact Information
RP Lite Model 760R RP Sports User Manual ® 10. Warranty and Contact Information Manufacturer Address Mego Afek AC Ltd. Kibbutz Afek, 3004200 Israel Warranty • Mego Afek AC Ltd. warrants the RP Lite console and RecoveryPump ® ® garments to be free of defects in materials and workmanship. •...
Page 39 Distributor in the USA RP Sports 9 Lacrue St. Ste 108 Glen Mills, PA 19342 855.732.7867 www.rpsports.com L98107R0-G...
Page 40: Emc Manufacturer Declarations
RP Lite Model 760R RP Sports User Manual ® 11. EMC Manufacturer Declarations Electromagnetic Compatibility (EMC) Statement for Home Healthcare Environment The RP Lite system has been evaluated to international standard ® IEC 60601-1-2 "General requirements for basic safety and essential performance - Collateral standard: Electromagnetic compatibility - Requirements and tests".
Page 41 RF emissions Class B CISPR 11 The Model 760R is suitable for use in all establishments, including Harmonic emissions Complies domestic establishments and those directly connected to the public IEC 61000-3-2 low voltage power supply network that supplies buildings used for domestic purposes.
Page 42 RP Lite Model 760R RP Sports User Manual ® Conducted 3 Vrms 3 Vrms d = 1.2 150 kHz to 80 MHz 61000-4-6 Radiated RF 3 V/m 3 V/m d = 1.2 80 MHz to 800 MHz 80 MHz to 2.5 GHz 61000-4-3 d = 2.3 800 MHz to 2.5 GHz...
