Summary of Contents for Bartscher CHEF IDEE CI2X8L

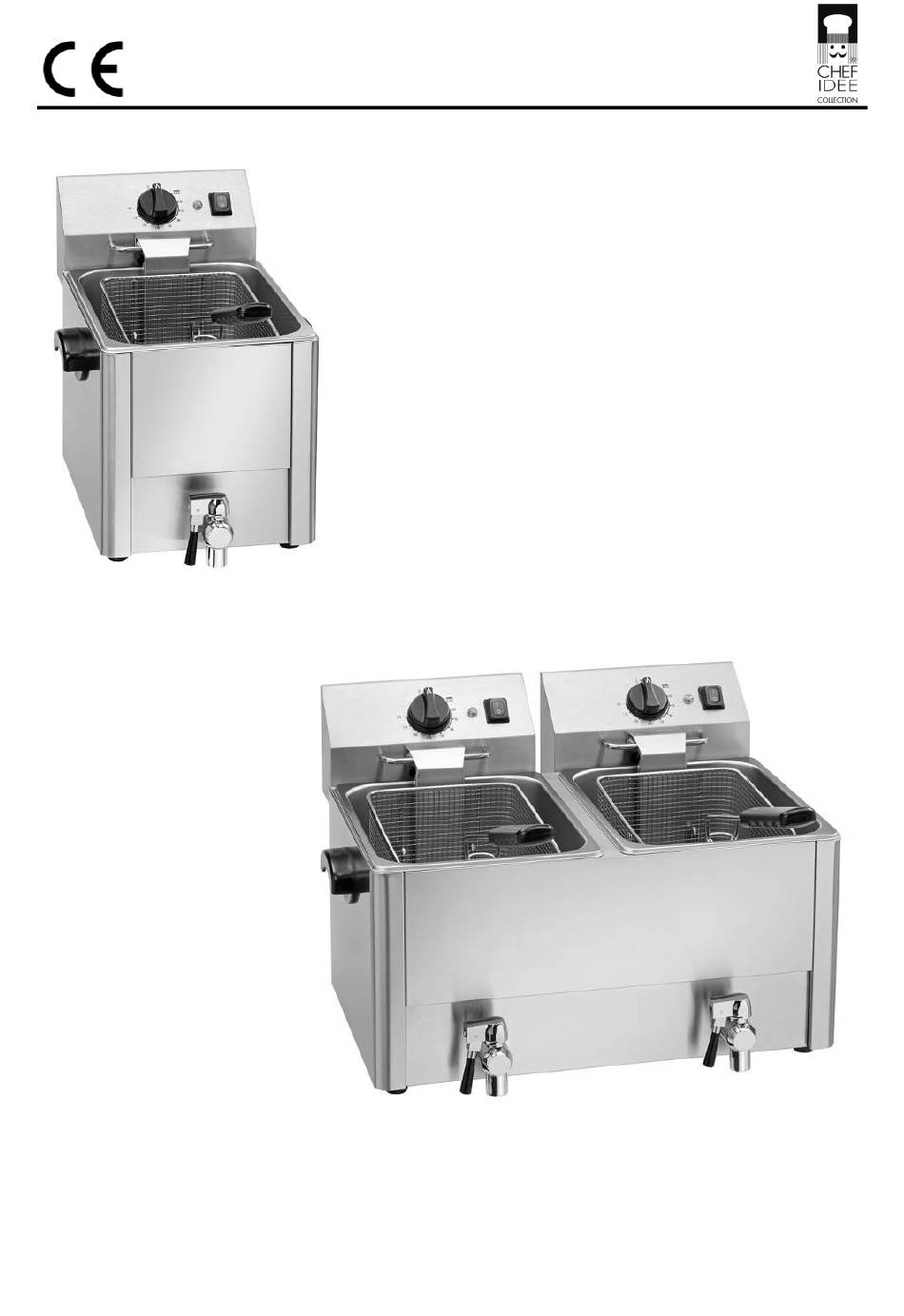

- Page 1 A162808 / 8L A162809 / 2 x 8L Original-Gebrauchsanleitung V1/0617...
-
Page 2: Table Of Contents
5. Installation and operation ..................38 5.1 Installation ......................38 5.2 Operation ......................39 6. Cleaning ........................45 7. Possible Malfunctions .................... 47 8. Waste disposal ......................48 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 Do not leave the device unattended during operation since there might occur malfunctions which could result in over- heating of the oil. In case of high temperatures oil might ignite. Prevent access of children to the package materials like plastic bags and foamed polystyrene elements.
- Page 6 Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water. Inspect the power cable regularly for damage. Never use the device if the cable is damaged.
- Page 7 HOT SURFACE! Burn hazard! To avoid the effects of this risk, follow the safety instructions presented below. During the operation the surface of the device is very hot! To avoid burns to the hands and fingers, do not touch the hot surface of the device! Operate the device only using the designated handles and switches.
-
Page 8: Proper Use
When a fire arises unplug the power cord from the socket before you initiate appropriate measures for fire-fighting. Provide sufficient supply of fresh air. Caution: Never extinguish the fire with water when the power plug is connected to the socket. Electric shock hazard! 1.3 Proper use The operational safety of the device is assured only in case of proper use, according... -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Declaration Of Conformity
2.3 Declaration of conformity The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity. 3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. -
Page 11: Storage
3.3 Storage Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings. Packages should be stored under consideration of the following: Do not store outdoors. Keep it dry and dust-free. Do not expose it to aggressive media. Do not expose it to direct sunlight. - Page 12 Name Deep fat fryer CI2X8L A162809 Code-no.: Chrome nickel steel Material: Designed for frying oil and block grease Safety thermostat 2 oil drain taps Cold zone Design: 2 ON/OFF switches with indicator light 2 heating indicators ...
-
Page 13: Overview Of Parts
4.2 Overview of parts A162808 Main device Handle (2) Frying basket with handle Control box with heating element Control panel Basin Oil drain tap Feet (4) MIN/MAX marks Heating element shield Lid with handle - 36 -... - Page 14 A162809 1 Main device 2 Handle (2) 3 Frying basket with handle (2) 4 Basin (2) 5 Control box with heating element (2) 6 Control panel (2) 7 Feet (4) 8 Oil drain tap (2) 9 MIN/MAX marks 10 Heating element shield (2) 11 Lid with handle (2) - 37 -...
-
Page 15: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! Any installation, connection and maintenance work related to the device may be performed by the qualified and authorised technician only, according to the valid international, national and local regulations. Positioning Unpack the device and remove all packing material. ... -
Page 16: Operation
Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! ... - Page 17 CAUTION! During cleaning and preparation of the device, make sure the device is not connected to the power supply and that the temperature adjustment knob is in “OFF” position. Prepare the device Remove the lid and take out the frying basket and the heating element shield out of the device.
- Page 18 Tips regarding the use of oil or fat in blocks Use appropriate oil for frying (e.g. vegetable, sunflower, groundnut oil etc.) or fat in blocks. Use only oil or fats suitable for high temperature cooking. Do not mix different types of oil or fat, because they may have different boiling points.
- Page 19 In a separate container In order to quickly melt the fat in blocks, use a separate container (e.g. cooking pan) placing it on the cooker. Then pour the melted fat to the basin of the deep fat fryer. Filling in the basin with oil or fat in blocks ...
- Page 20 WARNING! Risk of burns! When in use the deep fat fryer and oil in the container are very hot, and there is a risk of oil catching fire. The device should not remain in use for extended periods of time! ...
- Page 21 WARNING! Risk of burns! Do not use the deep fat fryer with the lid on! The lid serves as a dust protection and is used for keeping the temperature of oil/fat in case of possible interruptions in operation. Set the temperature adjustment knob to the lower temperature.
-
Page 22: Cleaning
After the unit has automatically turned off via the overheating prevention system, it can only be reactivated by pressing the RESET button at the rear of the control panel. For this purpose, cool the device off, then unscrew the plastic plug of the RESET button counter-clockwise, press the peg and again screw the plug turning it clockwise. - Page 23 o Frying oil or liquid fat should be carefully poured out to an appropriate container after they have cooled off. For this purpose, lift the handle of the oil drain tap and tilt it forward. Observe the instructions included in section “Replacement and removal of frying oil”...
-
Page 24: Possible Malfunctions
7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Problem Cause Solution ... -
Page 25: Waste Disposal
Utilization of the stale frying oil Please, remove the used frying oil / fat with due care for the environment and in accordance with all applicable local regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0...
