MicroHAWK Accessory Guide

Outer LED Removal, MicroHAWK ID-30/MV-30 and ID-40/MV-40

Note: If installing an LED accessory only, skip to Step 6.
Step 4: Remove the two screws from the LED boards.
Step 5: Unplug the LED boards from the reader.
Note: The LED boards have a connector interface. Gently pry the top of each LED board from the main
board using fine-tipped tweezers or an equivalent tool. Use caution not to contact the LEDs as they may
become damaged.

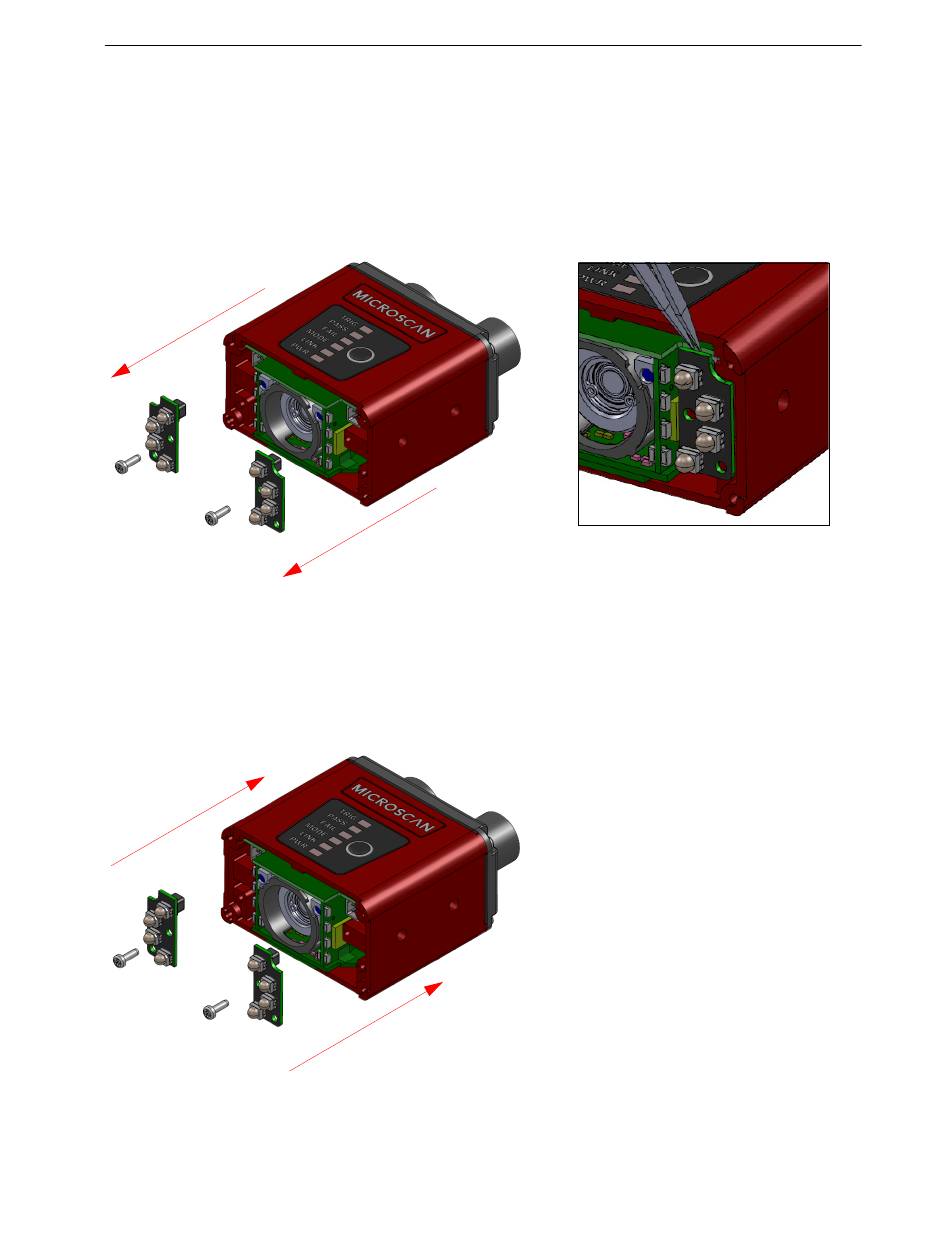

Steps 4 and 5

Outer LED Installation, MicroHAWK ID-30/MV-30 and ID-40/MV-40

Step 6: Plug the LED boards into the main board. Use caution not to touch the LEDs, as they may be
damaged by contact.
Step 7: Secure the LED boards in place using the screws provided. Do not over-tighten the screws.
(1.0 in./lbs. (0.11 nm max.)
Steps 6 and 7
