Project Source F4510062CP Installation Manual page 5

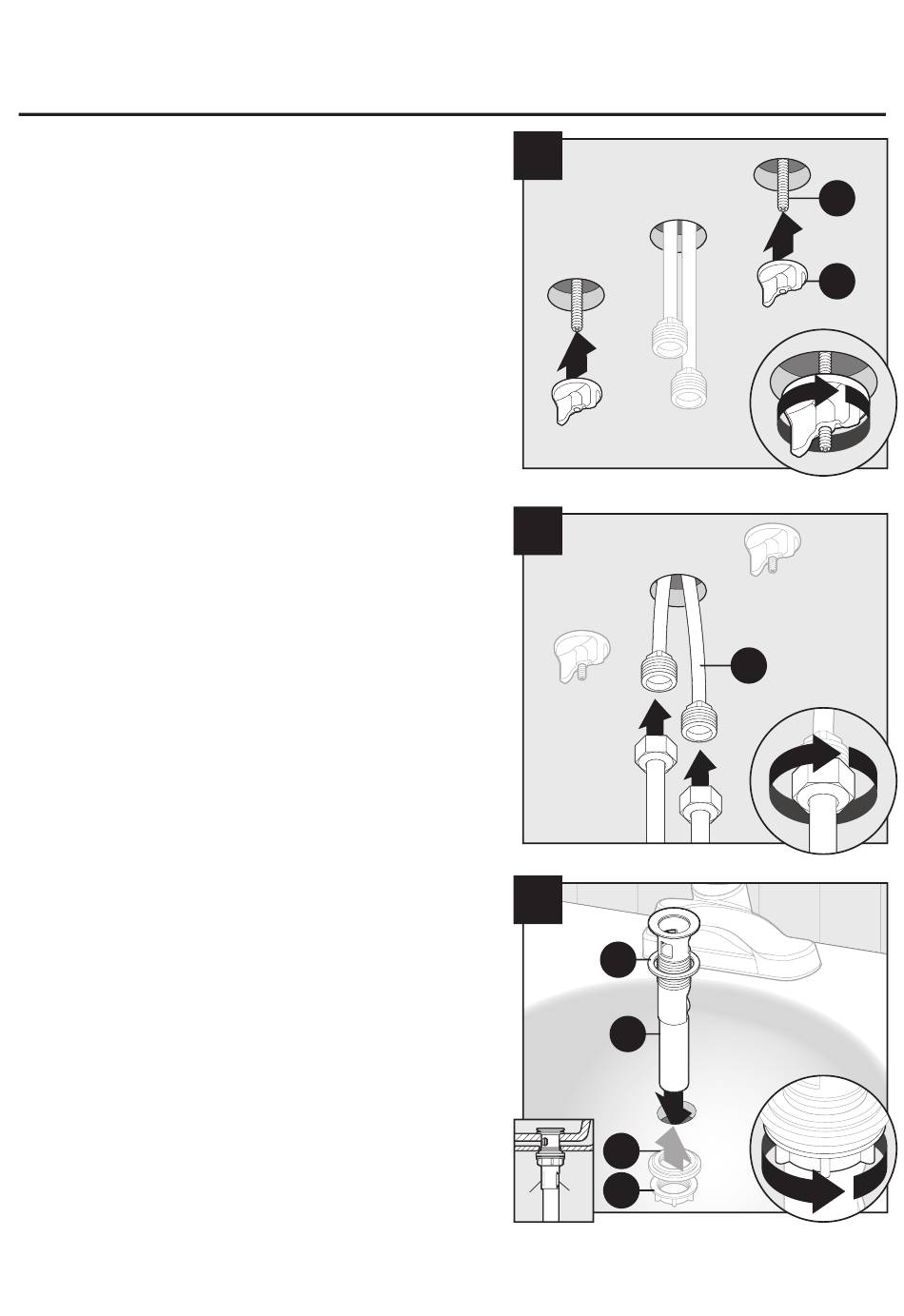

ASSEMBLY INSTRUCTIONS
4. Install lock nuts (AAA) onto threaded rod (C)
and hand tighten.
5. Attach water supply lines (not included) to the
faucet (A).
6. Install drain body (DD) and rubber washer
(AA) through top of sink (not included).
Secure with large rubber washer (BB) and
lock nut (CC).
Note: Opening for ball rod must face rear of
sink.
4
4
1
5
5
6
6
AA
DD
6
BB
CC
No Yes
5
1
4
AAA
2
5
A
1
2
1
6
1
2
3
C
