Summary of Contents for Bogen Platinum Series

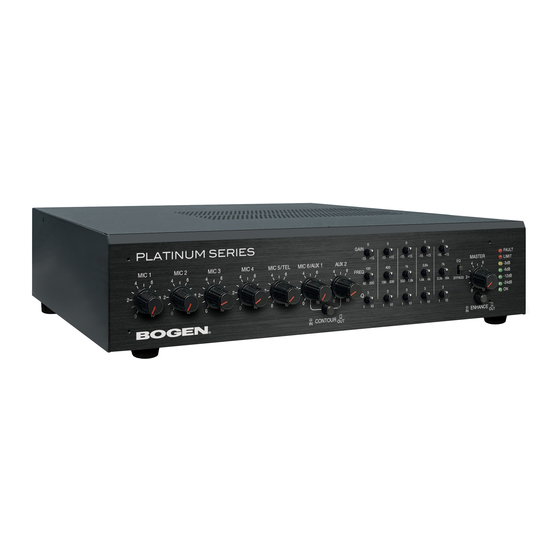

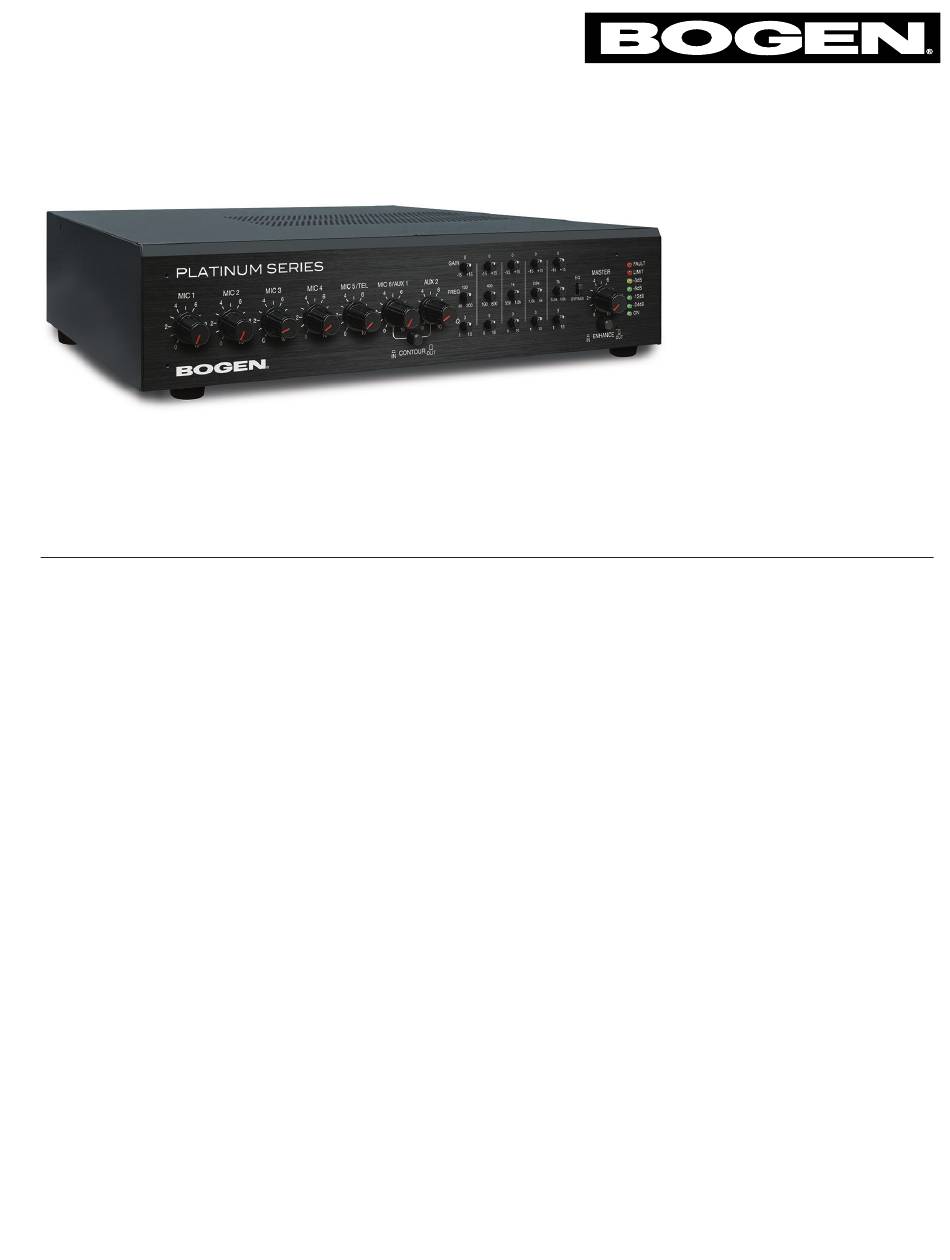

- Page 1 Platinum Series Public Address Amplifiers PS600, PS240, PS120, PS60 Models Installation and Use Manual © 2020 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 740-00118B 2007...
- Page 2 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Avertissement: pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
-
Page 3: Table Of Contents
Contents Introduction ............1 Features . - Page 4 This page intentionally left blank.
-
Page 5: Introduction
(5) year warranty. Unlike other typical amplifier lines, the professional sound contractor need not purchase a higher-powered amplifier just to get more extensive features or flexibility. Each of the Platinum Series amplifier models incorporate the exact same set of features. -
Page 6: Panel Descriptions
Panel Descriptions Front Panel (All Models) GAIN GAIN FAULT FAULT + 15 + 15 + 15 + 15 + 15 MIC IC 1 MIC IC 2 MIC IC 3 MIC IC 4 MIC IC 5/TEL MIC IC 6/AU AUX 1 AUX 2 MASTER MASTER... -
Page 7: Rear Panel
POWER Switch - AC power switch. Amplifier Output Speaker Terminals - Pluggable screw terminals connect to speaker loads. Class 2 wiring acceptable. REMOTE MASTER - Pluggable screw terminals pair for connection of remote master volume control (Bogen model GSRVC). MIC/AUX/TEL PRECEDENCE - Pluggable screw terminal connections that allow externally controlled muting of individual inputs. -
Page 8: Input Connections
Remote Volume Control (Rear Panel; #10) If remote volume control is desired, connect the Bogen accessory GSRVC Remote Volume Control to the screw terminals marked REMOTE MSTR. Wire length can be up to 1000 feet using 22-gauge wire. Connections are not polarity sensitive. -
Page 9: Output Connections
Output Connections Pre-Out/Power Amp In Jacks (Rear Panel; #12, #13, #14) These jacks permit the insertion of signal processing equipment into the signal path between the preamp output and the power amp input. The LINK switch should be in the IN position for normal operation. When using exter- nal signal processing equipment, place the switch in the OUT position and connect PRE OUT to the signal processing equipment’s input. -
Page 10: Operation
Operation Power Switch (Rear Panel; #2) The POWER switch applies power to the unit. An LED labeled ON, which is located on the front panel, illuminates GREEN when power is on. MIC 1 MIC 2 MIC 3 MIC 4 MIC 5/TEL MIC 6/AUX 1 AUX 2 MIC 1... -
Page 11: Parametric Equalizer
3. 3.3k 16k BYPASS BYPASS for the Platinum Series is -15 dB to ±15 dB as indicated on the GAIN row of controls on the Platinum Series front panel. MASTER • FREQ (Frequency) - The frequency region where the gain boost/ cut is desired. -
Page 12: Alc
GAIN + 15 + 15 + 15 + 15 + 15 Operation 2.8k FREQ (Rear Panel; #17) 550 1.8k 1.6k 3.3k 16k BYPASS The TEL input features an automatic level control (ALC) which compen- MIC 5/TEL sates for different voice levels and speaking styles of the individuals using the system. -
Page 13: Troubleshooting
Troubleshooting Amplifier will not turn ON. Check the fuse. Replace fuse only with same type and rating. No audio output. Double-check the position of the LINK switch. Make sure that the MIC 5/TEL switch is in the TEL position. No telephone output. Make sure the VOX control is set properly When connecting the telephone Tip &... -
Page 14: Technical Specifications
Technical Specifications Power Rating (RMS): ..PS60: 60 watts; PS120: 120 watts; PS240: 240 watts; PS600: 600 watts Frequency Response: ..20 Hz to 20 kHz, +0/-2 dB @ -2 dB Distortion: ..0.3% (typ.), 20 Hz to 20 kHz Signal-to-Ratio Noise: . -
Page 15: Limited Warranty; Exclusion Of Certain Damages
Limited Warranty; Exclusion of Certain Damages Bogen's Platinum Series amplifiers are warranted to be free from defects in material or workmanship for five (5) years from the date of sale to the original purchaser. Any part of any Bogen product covered by this warranty that, with normal installation and use, becomes defective (as confirmed by Bogen upon inspection) during the applicable warranty period, will be repaired or replaced by Bogen, at Bogen’s... - Page 16 www.bogen.com...
