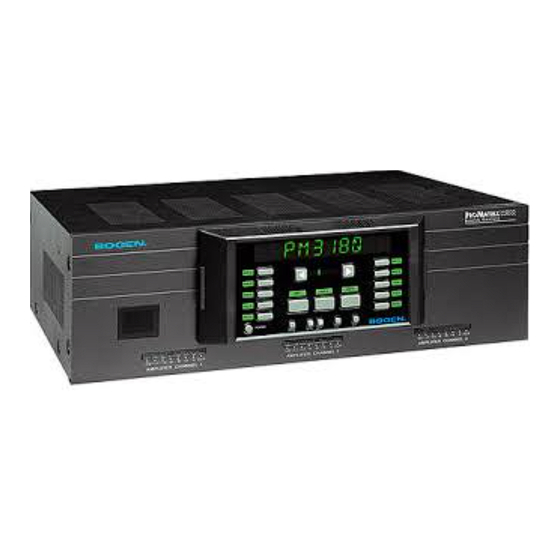

Bogen PM3180 Specifications
Digitally matrixed amplifier
Hide thumbs
Also See for PM3180:
- User manual (50 pages) ,
- Specifications (2 pages) ,
- Brochure & specs (13 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Bogen PM3180
Summary of Contents for Bogen PM3180
- Page 1 Amplifier Model: PM3180 ProMatrix PM3180 Digitally Matrixed Amplifier Three Independent Amplifier Channels • Unique Digital Interface • Tremendous Flexibility •...
- Page 2 Through easy-to-understand setup menus, the ProMatrix can be instructed to handle audio signals in ways that For the installer, the PM3180 is about as easy to install would normally require banks of equipment and compli- as a home stereo. Simply plug in the audio input sources, cated wiring schemes.

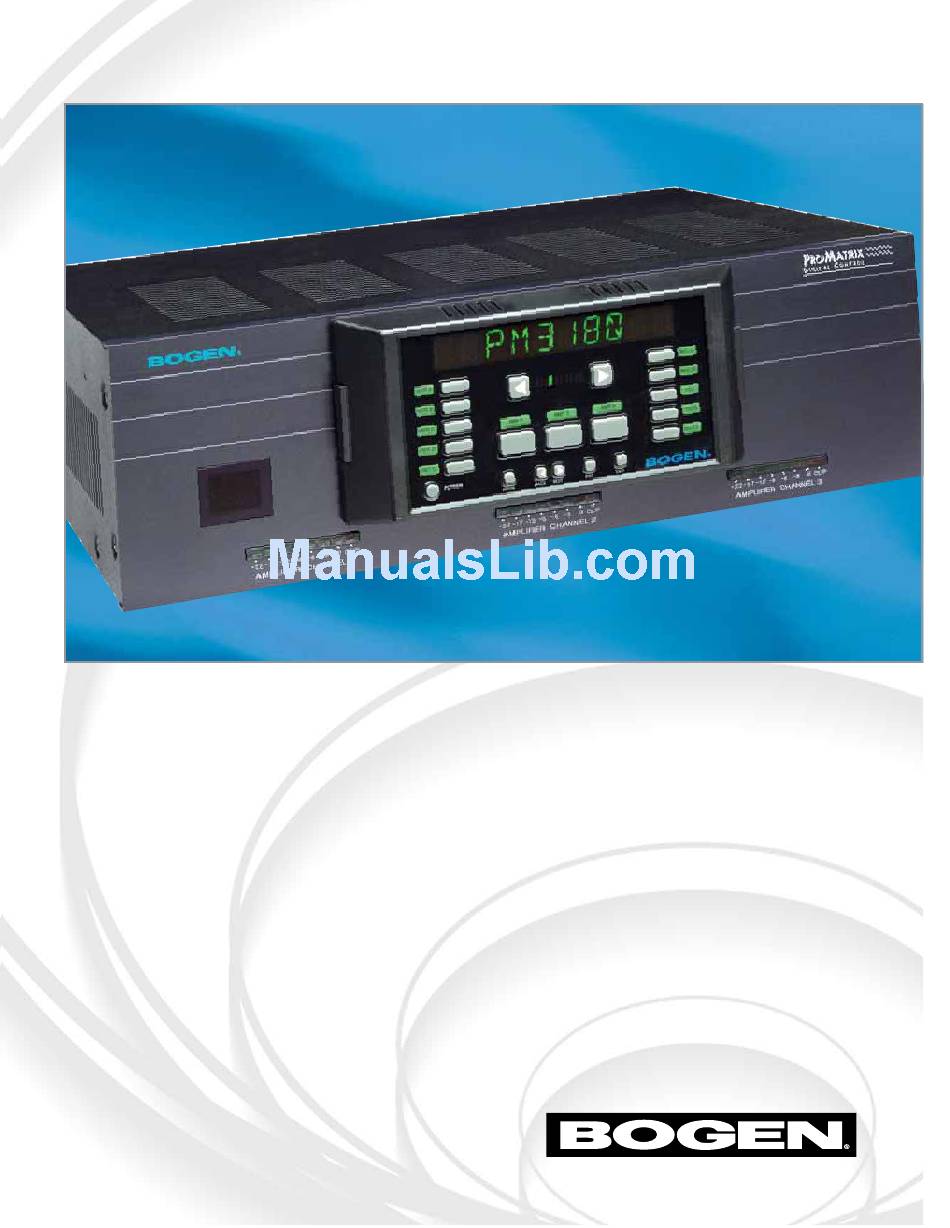

- Page 3 ProMatrix 3180 Front Panel Infrared Remote LED Level Meters: Control Panel Control Window Amp Channels 1, 2, and 3 Connections ProMatrix 3180 Relocatable Control Panel Audio Level Control Buttons and Position Pointer: 10 Character Adjusts Level of Selected Alphanumeric Function: VOL, BASS, TREB; Display Area Pointer Shows Approximate Level Setting...
-
Page 4: Application Example
Application Example The following application example shows the ProMatrix in A push to talk microphone will be used to page into the a typical medium-size restaurant. The ProMatrix controls Bar and Waiting Area and will include variable music a variety of input sources preprogrammed for the specific muting. -
Page 5: Simple Setup
The ProMatrix provides audio processing capabilities that can satisfy most installations. However, audio processing links I/R Remote Control are provided on the PM3180 for each amplifier channel so The ProMatrix infrated remote control provides a convenient that external signal processing devices can easily be added wireless means of control. -
Page 6: Physical Installation
Installation begins by connecting the speaker loads and With these steps completed, you are now ready to set the input signal cables to the rear of the unit. The PM3180 and system configuration. All selections and adjustments will be input sources are then turned on and the AUX Trim Controls made through the push button controls of the front panel are adjusted to provide the correct signal level. - Page 7 The last step in this installation is to program the PM3180 to replace the default input display names with the name The PM3180 is capable of muting an AUX input source to a of the input source. The LABELS menu is used to cus- predetermined level while a page is in progress.
-
Page 8: Technical Specifications
Rack Mounting Kit 50 Spring Street Ramsey, NJ 07446, U.S.A. RMPWMK3 Tel: 201-934-8500 • Fax: 201-934-9832 www.bogen.com Remote Wall Mounting Kit for Removable Front Panel 54-9109-01B 1204 © 2012 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice.
