Features
•
Electronically-balanced
•
XLR connector
•
Phantom power
•
Gain/Trim control
•
Hi- and Lo-cut filters
•
Adjustable voice enhancer
•
Audio gating with threshold adjustment
•
Variable signal limiter
•
4 levels of available priority
•
Can be muted from higher priority modules
•
Can mute lower priority modules

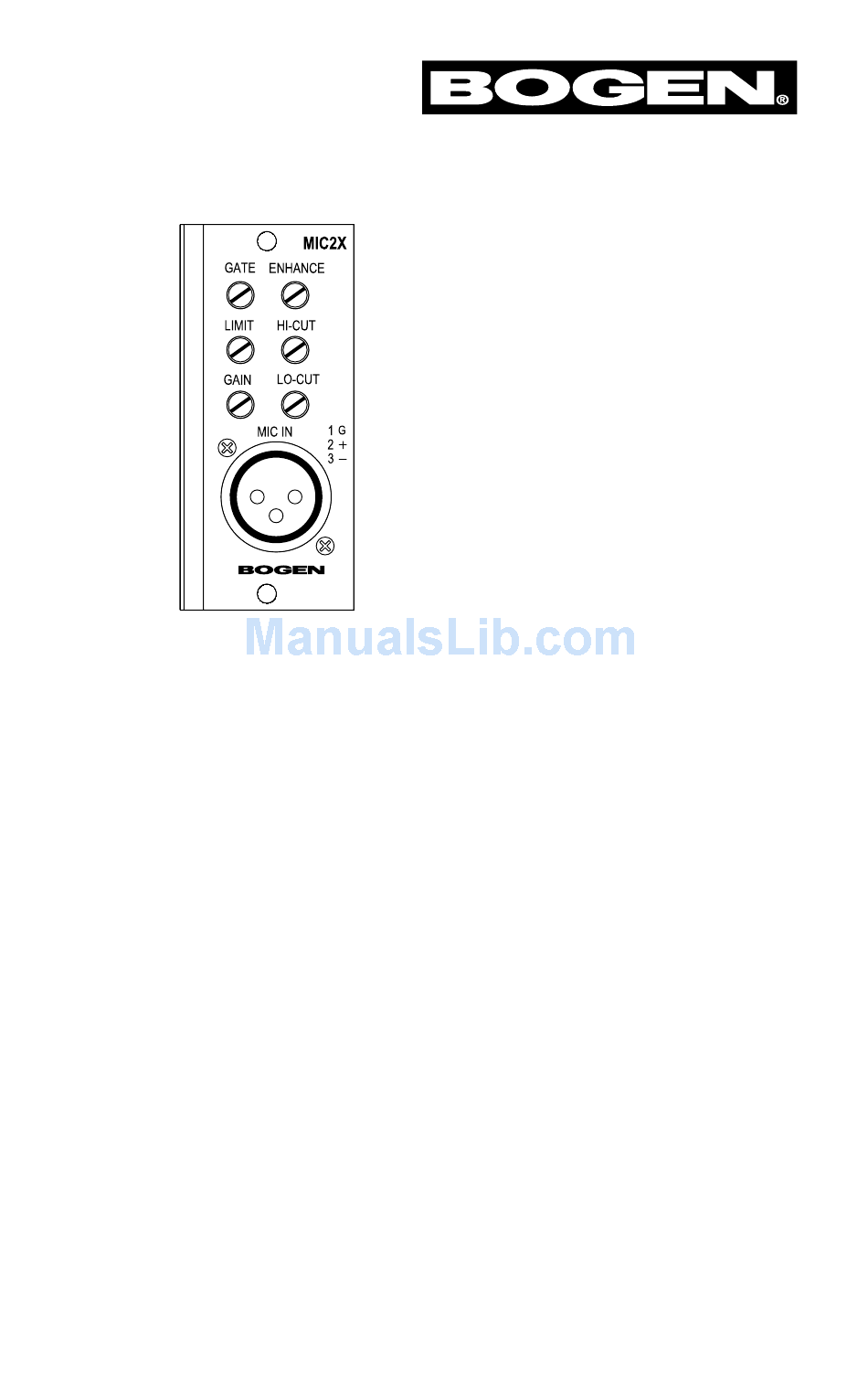

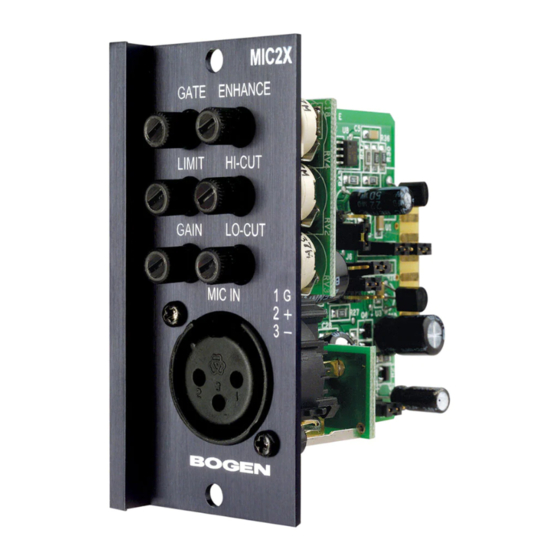

MIC2X
Microphone Input
Module
Printed in Taiwan.
© 2002 Bogen Communications, Inc.
54-2079-01R3
Specifications subject to change without notice.
0208
Advertisement
Related Manuals for Bogen MIC2X
Summary of Contents for Bogen MIC2X
- Page 1 • Variable signal limiter • 4 levels of available priority • Can be muted from higher priority modules • Can mute lower priority modules Printed in Taiwan. 0208 © 2002 Bogen Communications, Inc. 54-2079-01R3 Specifications subject to change without notice.
- Page 2 Module Installation 1. Turn off all power to the unit. Make all necessary jumper selections. Position module in front of desired module bay opening, making sure that the module is right- side up. Slide module on to card guide rails. Make sure that both the top and bottom guides are engaged.
- Page 3 Block Diagram 50 Spring Street, Ramsey, NJ 07446, U.S.A. 201-934-8500; Fax: 201-934-9832 www.bogen.com...
