Audio Control Module
Installation and Setup
The Audio Control is available as a stand-alone module
installed in a SideBox, or as an addition to your existing
control panel. If your Audio Control module is installed
into a SideBox, you can move on to setting up the
module.
Note:
The switcher supports a maximum of four (4) Audio
Control modules connected to a control panel. Two can be
installed inside the control panel, and two outside the control
panel.

Installing a Module

To install a module into the control panel, you must first
remove the existing module, or blank cover plate, that is
installed in the module opening. After the module has
been removed, you must install and cable the new module
into the empty module opening.

To Remove a Module

1. Lift up the control panel lid and turn off all
power supplies in the control panel.
2. Disconnect the power supplies from mains
power.
3. Identify the module or blank cover plate that you
want to remove.
4. If you are removing a module, you must
disconnect the cables to the module.

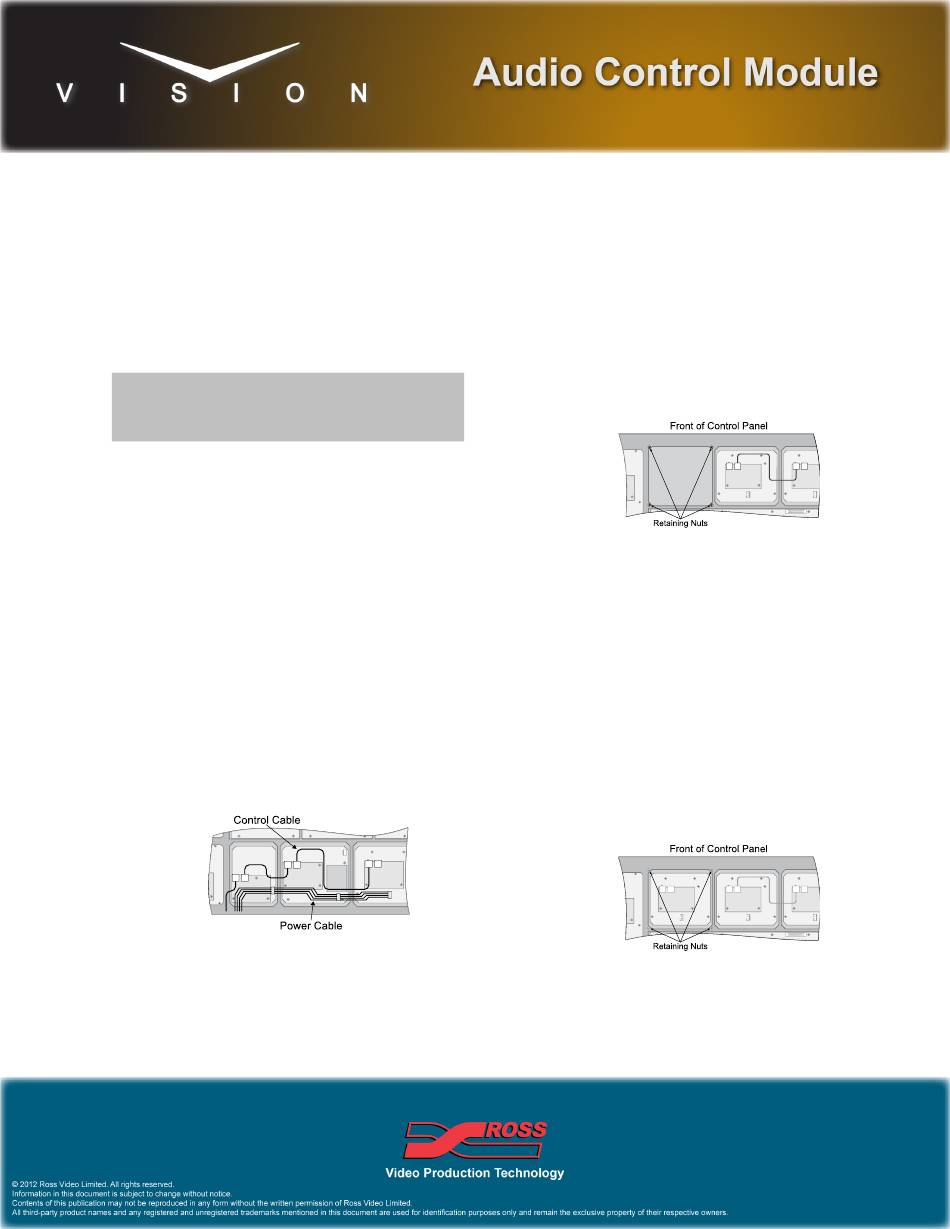

Figure 1: Module Cables
a) Disconnect the 4-conductor Module Power
Cable from the module.
This cable delivers power to all of the
modules in the row. When unplugging the
cable, ensure that you do not accidentally
unplug it from any neighbouring modules.
b) Disconnect both the CAT5 Module Control
Link Cables from the module.
This cable delivers all of the command signal
to and from the module, as well as other
modules in the same row.
5. Use a 1/4 inch hex driver to remove the four
Retaining Nuts located at each corner of the
module.
Figure 2: Remove Module Cover Plate
6. Remove the module or blank cover plate from
the control panel.

To Install a Module

1. Lift up the control panel lid and turn off all
power supplies in the control panel.
2. Disconnect the power supplies from mains
power.
3. Install the module into the control panel.
4. Use a 1/4 inch hex driver to install the four
Retaining Nuts located at each corner of the
module.
Figure 3: Install Module
5. Connect the cables to the module.
4800DR-356-01
