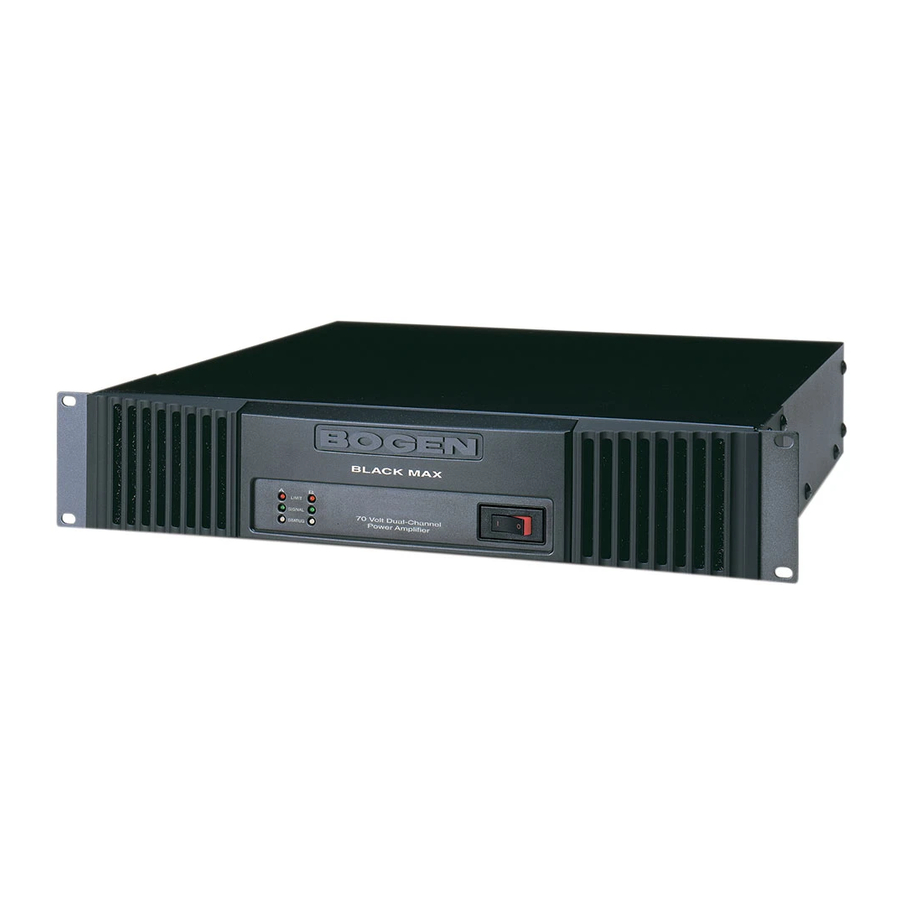

Bogen X300 Specifications

Black Max
Amplifiers
Models X600, X450,
and X300
Bogen's Black Max amplifiers are designed to provide maximum performance in constant voltage speaker sys-
tems. Dual 70V transformerless outputs deliver exceptionally clean audio to speaker systems requiring up to
Description
1200 watts of total power, or two separate channels of audio up to 600W per zone, in a single package. High
efficiency class H amplifier design and auto-sleep feature reduce power consumption on continuously-powered
systems. Rear-mounted volume controls, independent low-cut filters on each input, and pluggable input termi-
nal strips were specifically designed for the fixed install market. Built-in power sequencing for controlling mul-
tiple Black Max amplifiers combats current in-rush problems of large audio systems. Massive power toroid and
heat sinks; heavy 14-gauge chassis; Back-Slope™ AC voltage stabilization; clip limiters; and DC voltage, over-cur-
rent, and thermal protection circuits make this a workhorse amplifier.
• Dual 70V amplifier channels
• 3 power levels: 600W, 450W, or 300W per channel
for 70V speaker systems
Features
• Low noise, low distortion, and high slew rate
• High efficiency class H amplifier design
• Transformerless direct drive outputs
• Electronically balanced high-impedance inputs
• Pluggable terminal strips for input connections
• Independent low-cut filters on each input
• Built-in power sequencing for multiple Black Max
amplifier installations
• Pluggable terminal strip for sequencing wiring
• Rear-mounted power sequencing status indicator
• DC, overload, short circuit, and thermal protection
circuits
™
• Clip limiting circuits for speaker protection
• Power-saving sleep mode for intermittent use
applications
• Status, Signal, and Limit indicators
• Back-Slope AC voltage stabilization for dependable
performance over varying AC line voltages
• Heavy-gauge steel chassis with cast aluminum front
panel
• Rear-mounted volume controls
• Mounts in 2 rack spaces (3-1/2") directly stackable
without need for extra space above or below
• 2 independent, continuously variable, cooling fans
for dependable and quiet operation
• Easily removable front fan grilles with filters
Specifications subject to change without notice.
© 2001 Bogen Communications, Inc.
Part No. 54-8011-01B Printed in U.S.A. 0301
