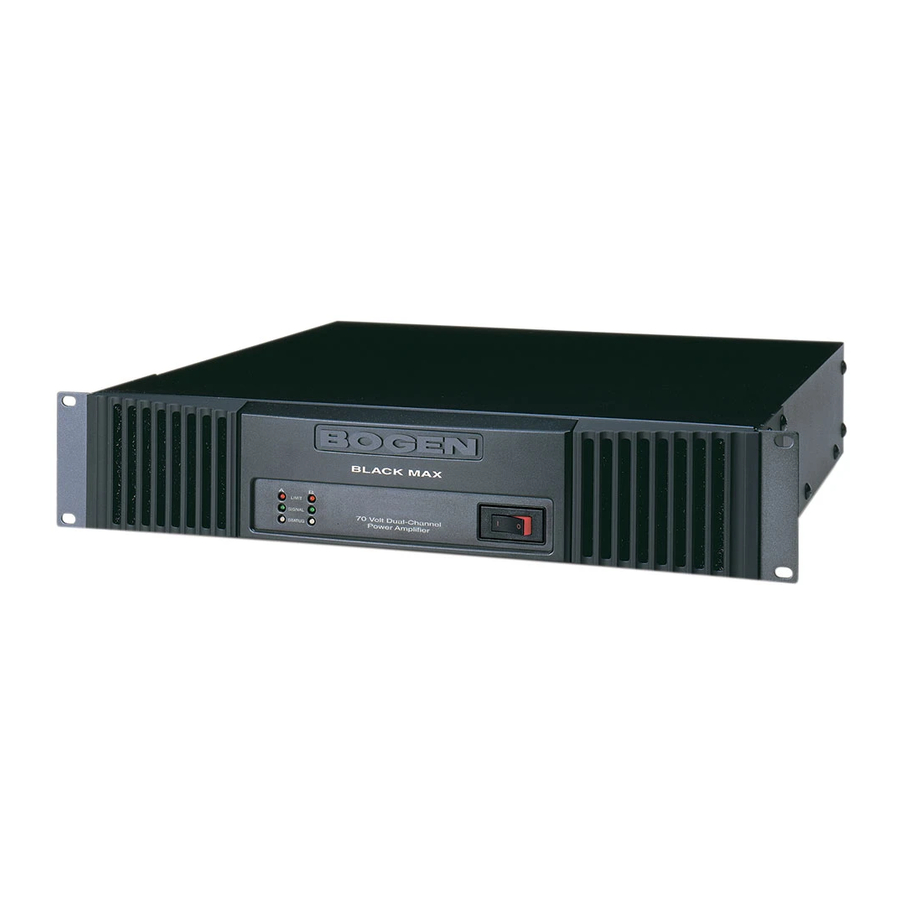

Bogen X300 Installation And Use Manual
Black max amplifier
Hide thumbs
Also See for X300:
- Installation and use manual (15 pages) ,
- Specifications (2 pages) ,
- Brochure & specs (3 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bogen X300
Summary of Contents for Bogen X300
- Page 1 Black Max ™ X300, X450, & X600 Models Installation and Use Manual Amplifier © 2005 Bogen Communications, Inc. All rights reserved. 54-2063-01C 0506...
- Page 2 Every effort was made to ensure that the information in this guide was complete and accurate at the time of printing. However, information is subject to change. Important Safety Information WARNING: To Reduce The Risk of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.
-
Page 3: Table Of Contents
Contents INTRODUCTION...1 Package Contents ...1 PANEL DESCRIPTIONS...2-3 Black Max Front Panel ...2 Black Max Rear Panel...3 INSTALLATION ...4-5 Mechanical Components ...4 Ventilation ...5 Rack Mounting ...5 Rear Rack Mounting ...5 Table Mounting ...5 CONNECTIONS...6 Speakers...6 Inputs ...6 SEQUENTIAL TURN-ON...7 Sequential Turn-On Operation...7 OPERATION ...8-9 Front Controls &... -
Page 5: Introduction
Bogen's Black Max™ amplifiers deliver on what professional sound installers need most: Power and Reliability. Power With three different models (X600, X450, and X300), the Black Max series provides 2 independent channels of amplification at 600W, 450W, and 300W per channel into 70V constant voltage speaker loads safely and securely. -
Page 6: Panel Descriptions
Under such conditions, a built-in Clip/Limiting circuit activates and reduces input signal levels to protect both amplifier and speaker loads. One for each channel. 4. Power Switch/Circuit Breaker - Magnetic circuit breaker controls AC power to the amplifier. -
Page 7: Black Max Rear Panel
4. CH B Input Select Switch - Allows output Channel B to source its input signal from either "A BAL INPUT" or "B BAL INPUT". 5. Lo-Cut Filters - Roll off frequencies below 60 Hz (2nd order) to prevent saturation of speaker transformers. Flush switch actuators reduce tampering. -
Page 8: Installation
Installation Mechanical Components 1. Rack Ears - Prior to installing the amplifier into a 19" rack, you will need to attach the rack ears. Remove and save the 6 front most cover screws on each side panel of the amplifier. Position the rack ears as shown and attach using the 6 screws. 2. -
Page 9: Table Mounting
Ventilation The Black Max amplifiers were designed to be placed on a table or rack-mounted. For rack-mounted applications, the amplifiers can be stacked one on top of the other for maximum use of the rack space available without any extra, empty rack spaces between them. An open air space of at least 4"... -
Page 10: Connections
The polarity of each set of speaker outputs (A & B) is indicated with a "+" and "-" sign. Use these indicators to ensure that the phasing of the speakers are correct. -
Page 11: Sequential Turn-On
Sequential Turn-On Operation Black Max amplifiers contain a sequential turn-on feature that is designed to turn on a bank of Black Max amplifiers, one at a time, in sequence with approximately 1 second between each amplifier. This type of sequencing of power is necessary in large systems where the in-rush current of all the system amplifiers turning on at once would over- load the AC mains supplying the system. -
Page 12: Operation
LIMIT - When illuminated, it indicates a condition in which the amplifier is limiting and automatically reducing signal level to reduce the overload con- dition. Limiting is a result of speaker load impedances that are too low or input signals that are too high, which drive the outputs beyond their opera- tional ranges. -
Page 13: Power Status Indicator
Sleep Switch The Black Max amplifier includes a sleep mode feature that greatly reduces the power consumption of the amplifier after it has been idle (no audio activity) for more than 3 minutes. Any audio activity present at the input will power up the amplifier instantaneously and noiselessly, so that there is no loss of audio. -
Page 14: Troubleshooting
• Poor speaker connections • Lo-Cut Switch set to Flat • Input Sensitivity Switch not set correctly • Speaker transformers saturating at low frequencies, Lo-Cut filter off, need additional Hi-Pass filtering • Below minimum load rating on output • Exceeding maximum power output rating •... -
Page 15: Specifications
RF, DC, Low-frequency,Thermal, Low-impedance, Circuit Breaker, Short Circuit Sequential Turn-On Circuitry (defeatable), Sleep Mode (defeatable), Back-Slope™ AC Voltage regulation,Toroidal Power Transformer, Input Sens, CH B Input Select Specifications X450 X300 300W / Ch @ 70V 1V/0.1V 15A line cord 15A line cord less than .02%... - Page 16 50 Spring Street, Ramsey, NJ 07446, U.S.A. Tel. 201-934-8500; Fax: 201-934-9832; www.bogen.com...
