- Page 1 Telephone Paging Amplifier Model TPU15A Installation and Use Manual © 2009 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-5876-02B 0902...
- Page 2 Notice IMPORTANT Every effort was made to ensure that the information in this guide was complete and accurate at the time of printing. However, information is subject to change. Important Safety Information CAUTION: TO PREVENT THE RISK OF WARNING: To Reduce The Risk of Fire Or Electric Shock, ELECTRIC SHOCK, DO NOT REMOVE COVER Do Not Expose This Apparatus To Rain Or Moisture.
-
Page 3: Table Of Contents
Contents INTRODUCTION..........................4 INSTALLATION ..........................4 Unpacking..........................4 Mounting ..........................4 FRONT PANEL ..........................5-6 Music ............................5 Paging............................5 Night Ringer ........................5 Power ............................5 Speakers ..........................5 Paging............................5 Night Ringer Control ......................5 Music ............................6 Tone Control ........................6 Peak Level ............................6 Lo-Cut Switch ........................6 Circuit Breaker ........................6 TECHNICAL SPECIFICATIONS ..................7 LIMITED WARRANTY;... -
Page 4: Introduction

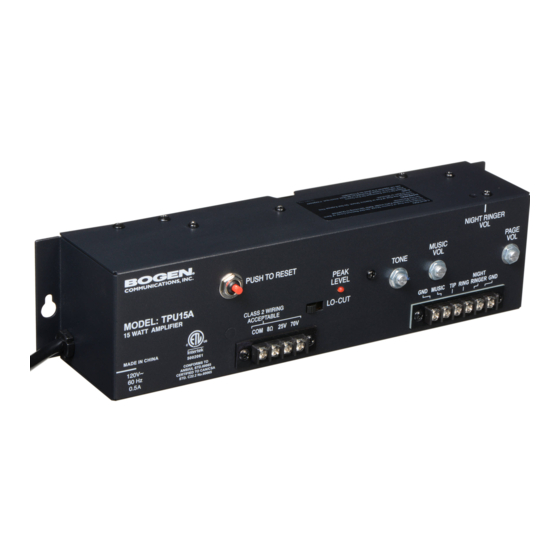

Introduction The Bogen Model TPU15A is a 15-watt wall-mounted amplifier, specifically designed for telephone paging applications. This compact unit includes voice-activated muting of music when paging. The page channel features Automatic Level Control (ALC) as channel input varies, which is particularly advantageous where persons of varying voice levels and paging techniques have access to the system. -
Page 5: Front Panel
(which are customer supplied). A steady ringing tone will be heard as long as the dry contacts are closed. Once connection has been made to a 120V AC, 60 Hz power source, the TPU15A Power will remain in a power standby condition. (Also see Circuit Breaker information.) -
Page 6: Circuit Breaker
Front Panel (cont.) Music The MUSIC VOL screwdriver-adjustable control is used to adjust the volume of the background music input. Rotate the control clockwise to increase volume and counter-clockwise to decrease it. Set the control to minimum if the input is not used. Tone Control The TONE screwdriver-adjustable control is used to adjust the tonal characteristic of the amplifier output. -
Page 7: Technical Specifications
Technical Specifications 15W RMS Rated Output Power: Distortion: Less than 2% Music: ±2 dB, 70 Hz to 12 kHz Frequency Response: Paging: shaped for maximum intelligibility Music: 70 mV Input Sensitivity: Paging: -20 dBm Input Impedance: Music: Hi-Z unbalanced; 25k ohms Paging: 600 ohms balanced, transformer-isolated Outputs: 8 ohms, 25V, and 70V balanced, transformer coupled... -
Page 8: Limited Warranty; Exclusion Of Certain Damages
Limited Warranty; Exclusion of Certain Damages The Bogen TPU15A Telephone Amplifier is warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective will be repaired or replaced by Bogen, at our option, provided the product is shipped insured and prepaid to: Bogen Factory Service Department, 50 Spring Street, Ramsey, NJ 07446, USA.
