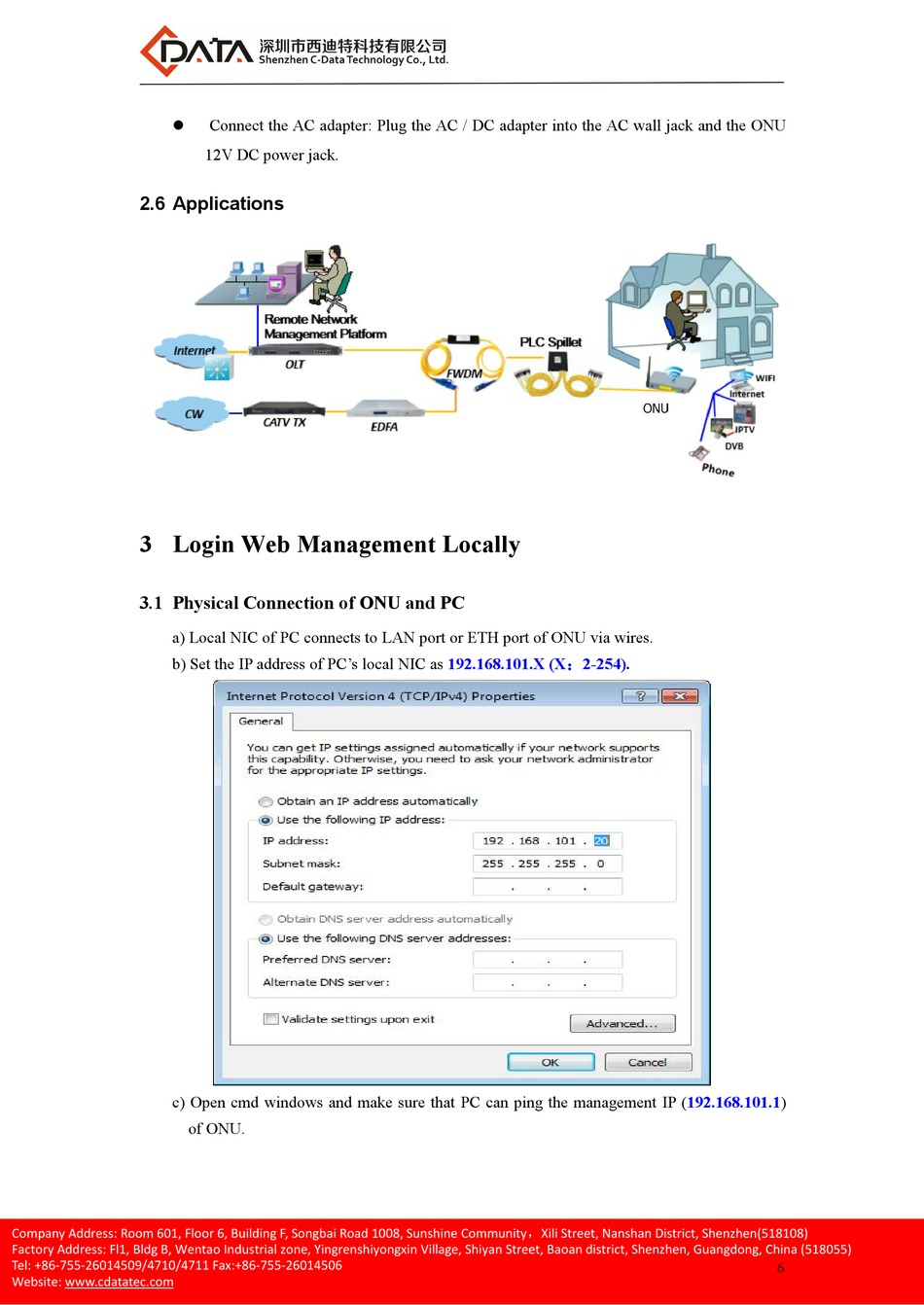

2.6 Applications

3 Login Web Management Locally

3.1 Physical Connection of ONU and PC

a) Local NIC of PC connects to LAN port or ETH port of ONU via wires.
b) Set the IP address of PC's local NIC as
c) Open cmd windows and make sure that PC can ping the management IP (192.168.101.1)
Company Address: Room 601, Floor 6, Building F, Songbai Road 1008, Sunshine Community，Xili Street, Nanshan District, Shenzhen(518108)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
Connect the AC adapter: Plug the AC / DC adapter into the AC wall jack and the ONU
12V DC power jack.
of ONU.
192.168.101.X (X：2-254).
