6 ONU LAN Configuration

6.1 LAN IP Address Configuration

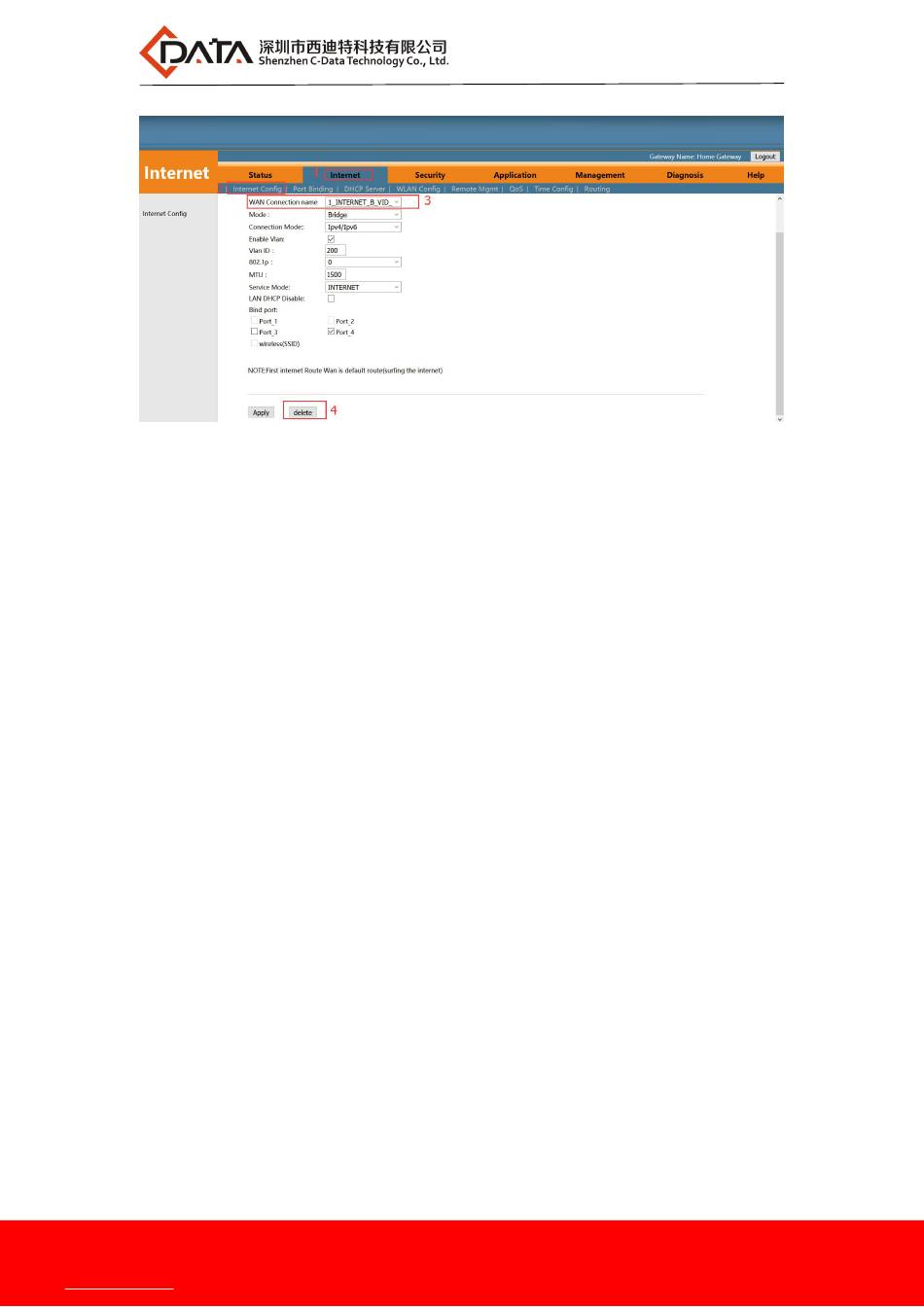

1．Login ONU WEB, select Internet -> DHCP Server -> IPv4 DHCP Server, and then
there are some parameters for us to configure as follows:
Company Address: Room 601, Floor 6, Building F, Songbai Road 1008, Sunshine Community，Xili Street, Nanshan District, Shenzhen(518108)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
【 IP address 】 Set local management IP address of ONU. The default IP address is
192.168.101.1
【Subnet mask】Set the mask of local management IP address of ONU
【 Disable DHCP Server/Enable DHCP Server 】 Enable or disable ONU DHCP Server
【Start IP address / End IP address】Configure the IP address interval that allocated to the
【DNS1/DNS2/DNS3】Configure DNS address that allocated to the terminal. By default,
192.168.101.1 of DNS agent address is used to default DNS
address. We can design this according to network plan.
【Edit DHCP address range】By default, the ONU will allocate 10 IP addresses for every
function.
terminal. The address interval must be on the same
network segment as the management IP address of
the ONU.
kinds of terminal. If it is not enough, we can edit DHCP
address range to increase the designed address range.
18
