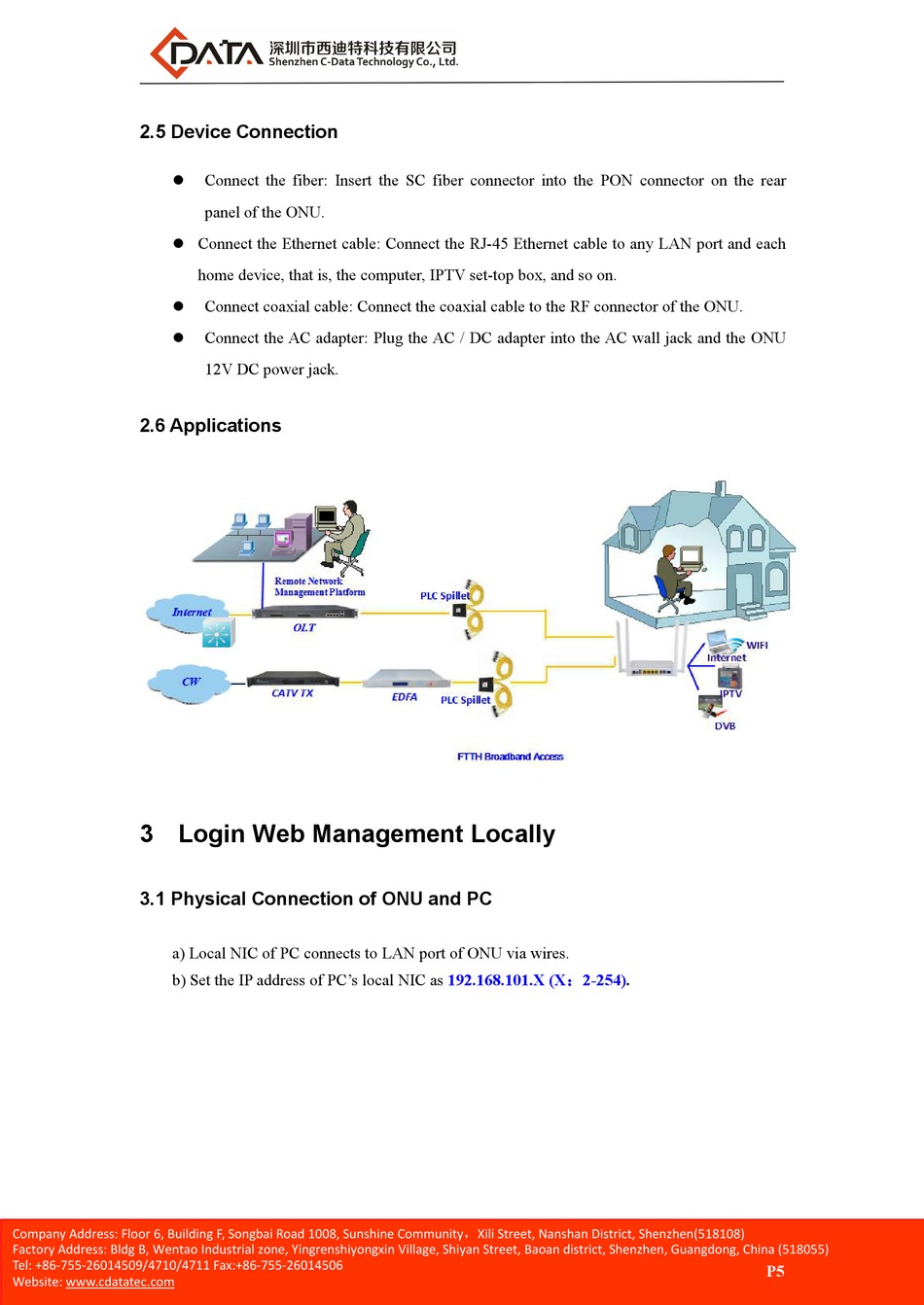

2.5 Device Connection


 Connect the Ethernet cable: Connect the RJ-45 Ethernet cable to any LAN port and each



2.6 Applications

3 Login Web Management Locally

3.1 Physical Connection of ONU and PC

a) Local NIC of PC connects to LAN port of ONU via wires.
b) Set the IP address of PC's local NIC as
Company Address: Floor 6, Building F, Songbai Road 1008, Sunshine Community，Xili Street, Nanshan District, Shenzhen(518108)
Factory Address: Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
Connect the fiber: Insert the SC fiber connector into the PON connector on the rear
panel of the ONU.
home device, that is, the computer, IPTV set-top box, and so on.
Connect coaxial cable: Connect the coaxial cable to the RF connector of the ONU.
Connect the AC adapter: Plug the AC / DC adapter into the AC wall jack and the ONU
12V DC power jack.
192.168.101.X (X：2-254).
