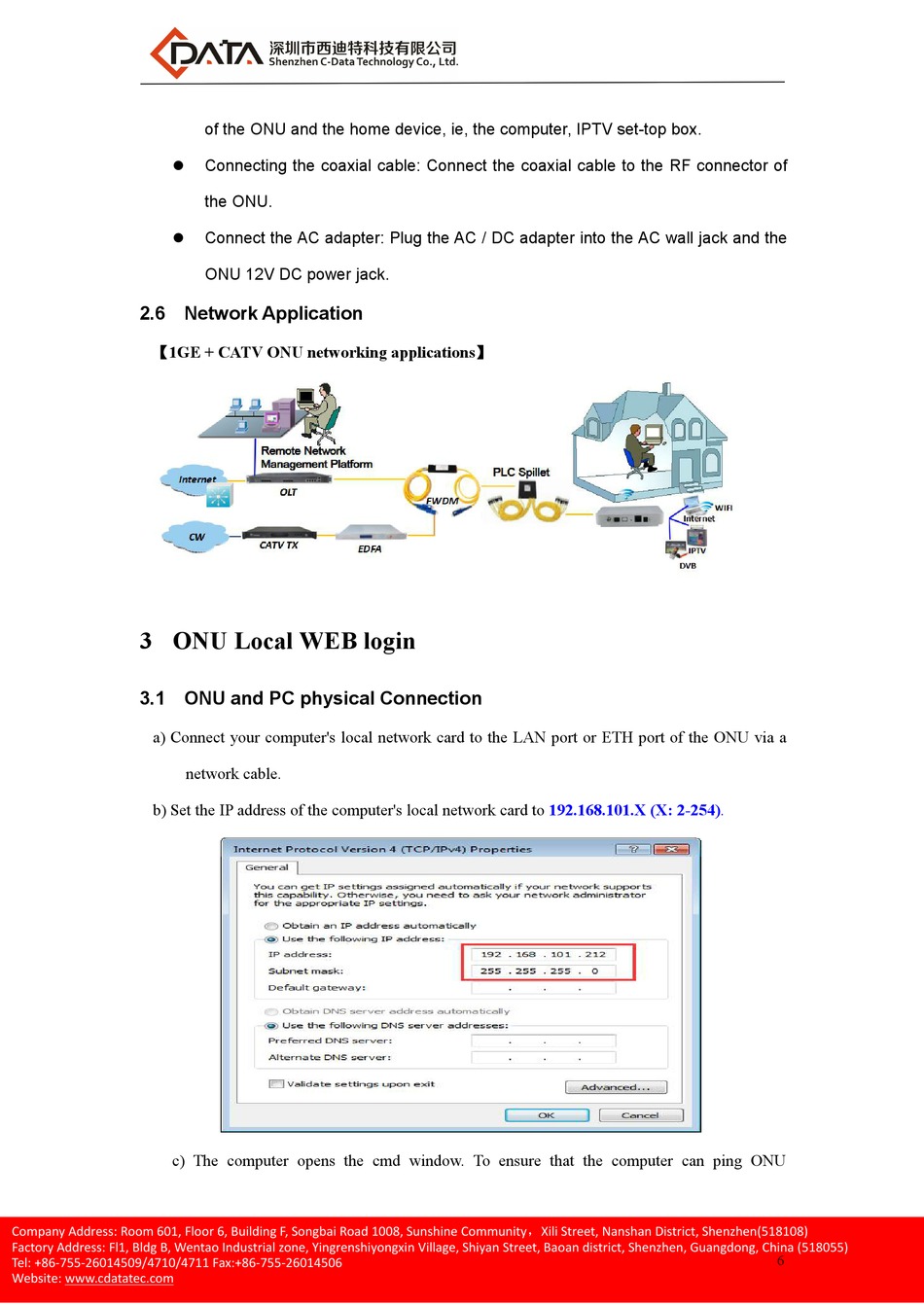

2.6 Network Application

【1GE + CATV ONU networking applications】

3 ONU Local WEB login

3.1 ONU and PC physical Connection

a) Connect your computer's local network card to the LAN port or ETH port of the ONU via a
network cable.
b) Set the IP address of the computer's local network card to
c) The computer opens the cmd window. To ensure that the computer can ping ONU
Company Address: Room 601, Floor 6, Building F, Songbai Road 1008, Sunshine Community，Xili Street, Nanshan District, Shenzhen(518108)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506
Website: www.cdatatec.com
of the ONU and the home device, ie, the computer, IPTV set-top box.
Connecting the coaxial cable: Connect the coaxial cable to the RF connector of
the ONU.
Connect the AC adapter: Plug the AC / DC adapter into the AC wall jack and the
ONU 12V DC power jack.
192.168.101.X (X: 2-254).
