dejavoo Z6 Setup

Clearent Dejavoo Z6 Pinpad Setup
The pinpads do not come equipped with a receipt printer, rather, transaction receipts are printed on your ex-
isting POS receipt printer. The Dejavoo pinpad utilizes your local network and internet connection to send and
receive all data. On the wired Z6 unit, the USB connection is used strictly to power the device. The wireless
Z1 and Z11 units are battery powered. The below setup instructions are for the recommended Z6 wired model,
but can also be used as a rough guide for the Z1 and Z11 wireless models.
If you are a brand new Clearent user (as in, this is your very first pinpad), did you have your "activations ap-
pointment" with Clearent yet? If not, please email activations@clearent.com before continuing.
To configure your device:
Make sure that your receipt printer is functioning normally with Bookmanager. Without an attached re-
1.
ceipt printer, you will not receive merchant or customer copies of pinpad receipts.

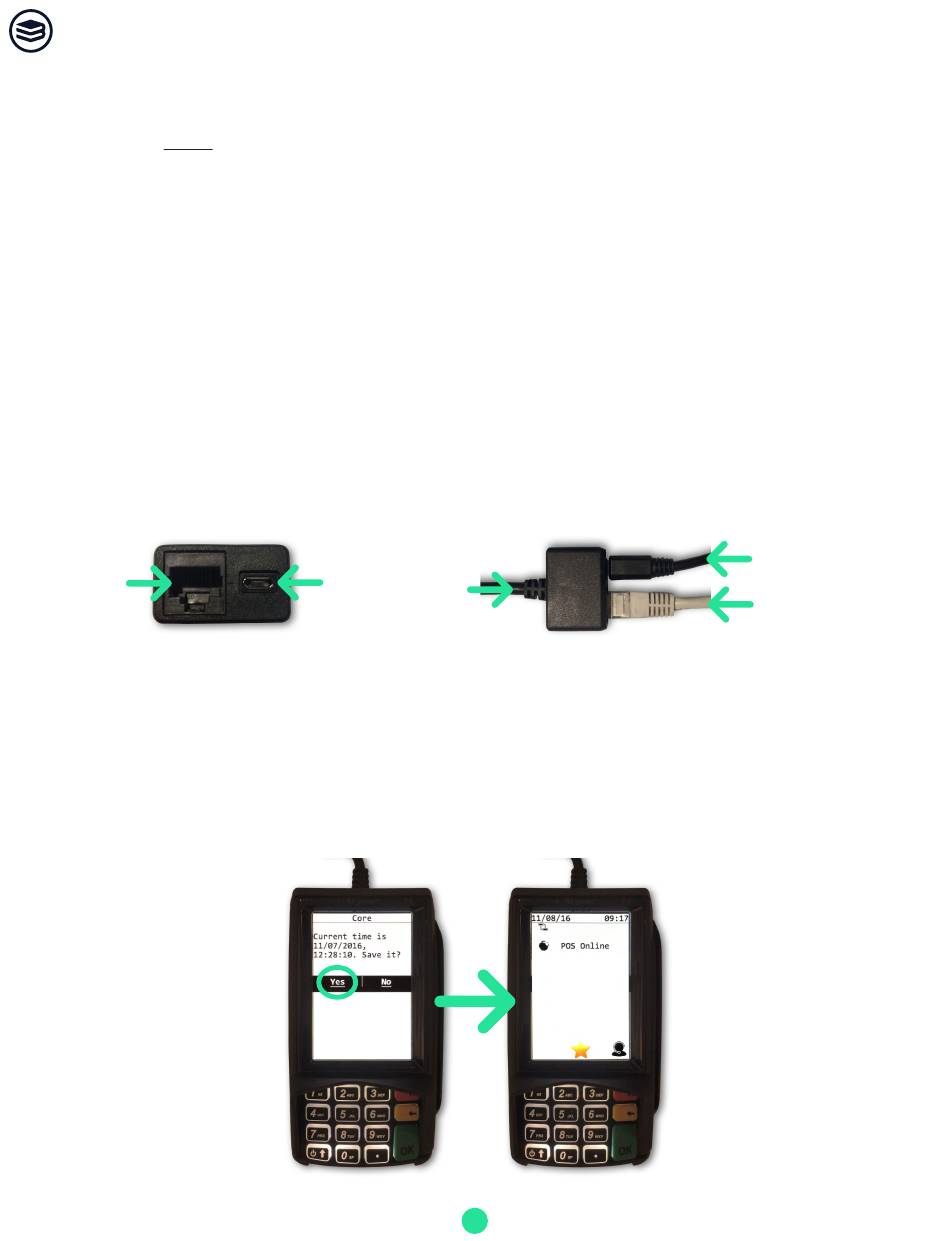

Connect a Cat 5e ethernet cable (may be included with your Dejavoo unit) to the ethernet port on the split-
2.
ter cable (pictured below) running from the Dejavoo pinpad. Connect the other end of the ethernet cable
to a free port on your internet enabled router/modem/switch.
ethernet
3. Connect the included USB cable to the Dejavoo's splitter cable, then to either a free USB port on your
computer, or to a USB power block that plugs into a wall outlet. This USB connection is for power only; no
data is transfered via USB on these units.
4. Upon making the USB connections, the Dejavoo pinpad will power up and search for available internet. If
it is successful, the pinpad's screen will soon display the current time and date, and ask you if this time is
correct. If so, use the touch screen to press Yes.
USB
to pinpad
1
Updated July 13, 2021
to computer /
power source
to router /
modem / switch
