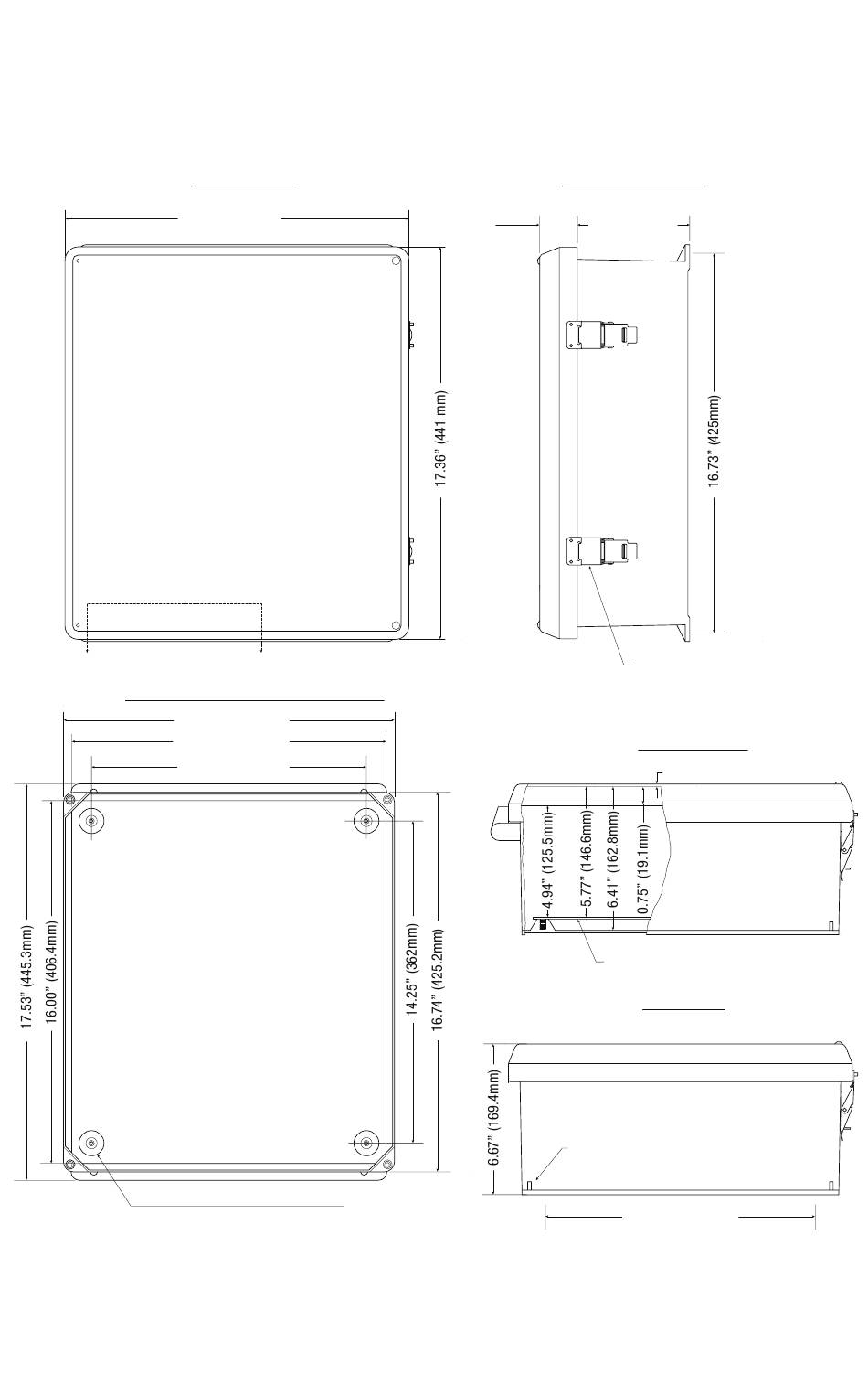

Mechanical Drawing and Dimensions (H x W x D approx.):
A
FRONT VIEW COVER REMOVED
10-32 X 0.250 BRASS INSERT 4 PLCS.
- 10 -
NetWaySP1BTWPX
17.53" x 15.3" x 6.67" (445.3mm x 388.6mm x 169.4mm)
FRONT VIEW
15.3" (388.6mm)
A
14.54" (369.3mm)
14.00" (355.6mm)
12.23" (310.6mm)
RIGHT SIDE VIEW
1.67" (42.4mm)
5.00" (127mm)
316 STAINLESS STEEL PADLOCK LATCH
ATTACHED WITH RIVETS. Ø 0.375 PADLOCK EYE
MOUNTING PLATE
Ø 0.32" (8.1mm)
WALL MOUNTING HOLE X 4
SECTION A-A
0.125" (3.2mm)
END VIEW
12.00" (304.8mm)
NetWaySP1BT Series Powered
