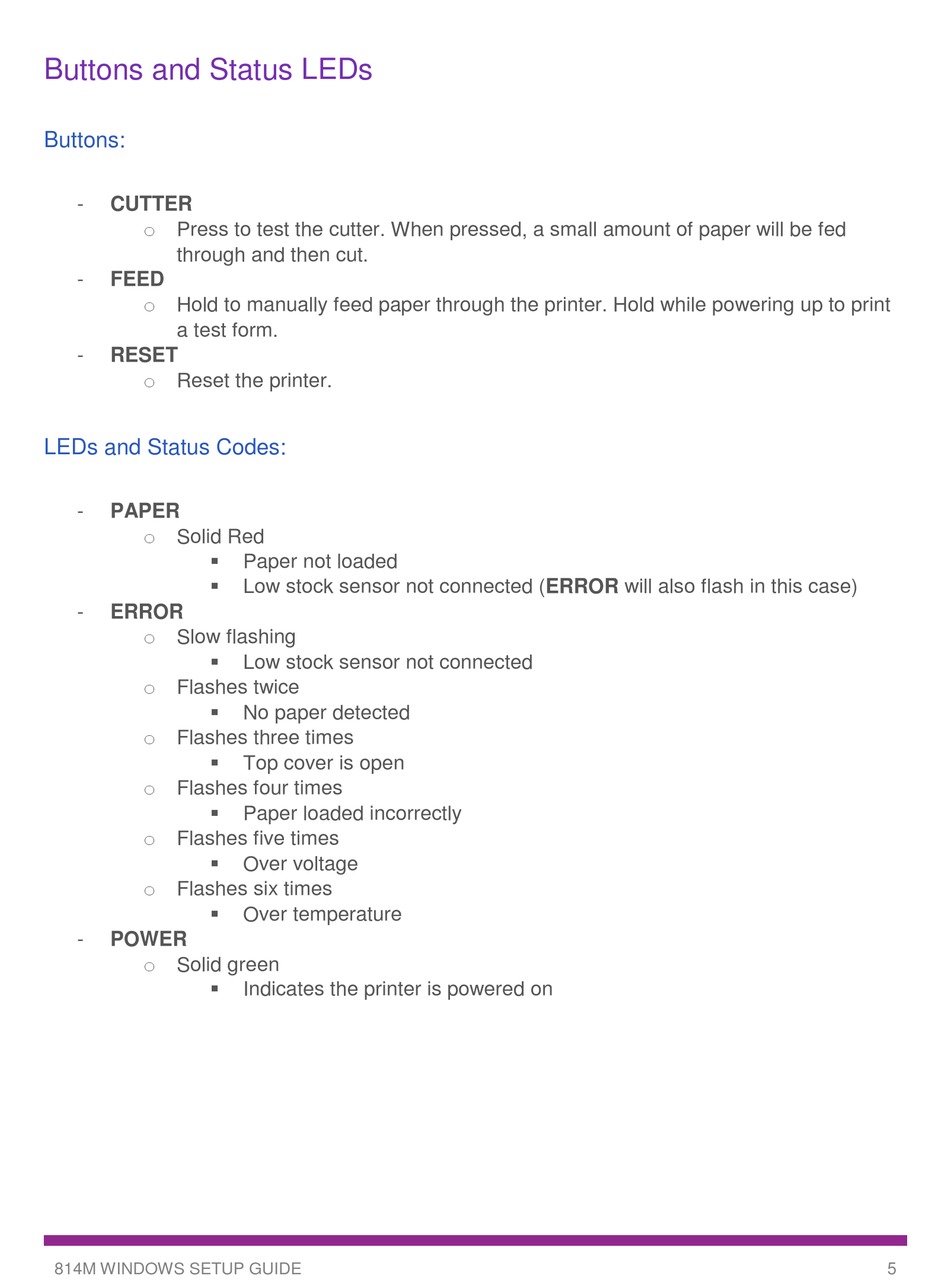

Buttons and Status LEDs

Buttons:

- CUTTER
o Press to test the cutter. When pressed, a small amount of paper will be fed
through and then cut.
- FEED
o Hold to manually feed paper through the printer. Hold while powering up to print
a test form.
- RESET
o Reset the printer.

LEDs and Status Codes:

- PAPER
o Solid Red


- ERROR
o Slow flashing

o Flashes twice

o Flashes three times

o Flashes four times

o Flashes five times

o Flashes six times

- POWER
o Solid green

814M WINDOWS SETUP GUIDE
Paper not loaded
Low stock sensor not connected (ERROR will also flash in this case)
Low stock sensor not connected
No paper detected
Top cover is open
Paper loaded incorrectly
Over voltage
Over temperature
Indicates the printer is powered on
