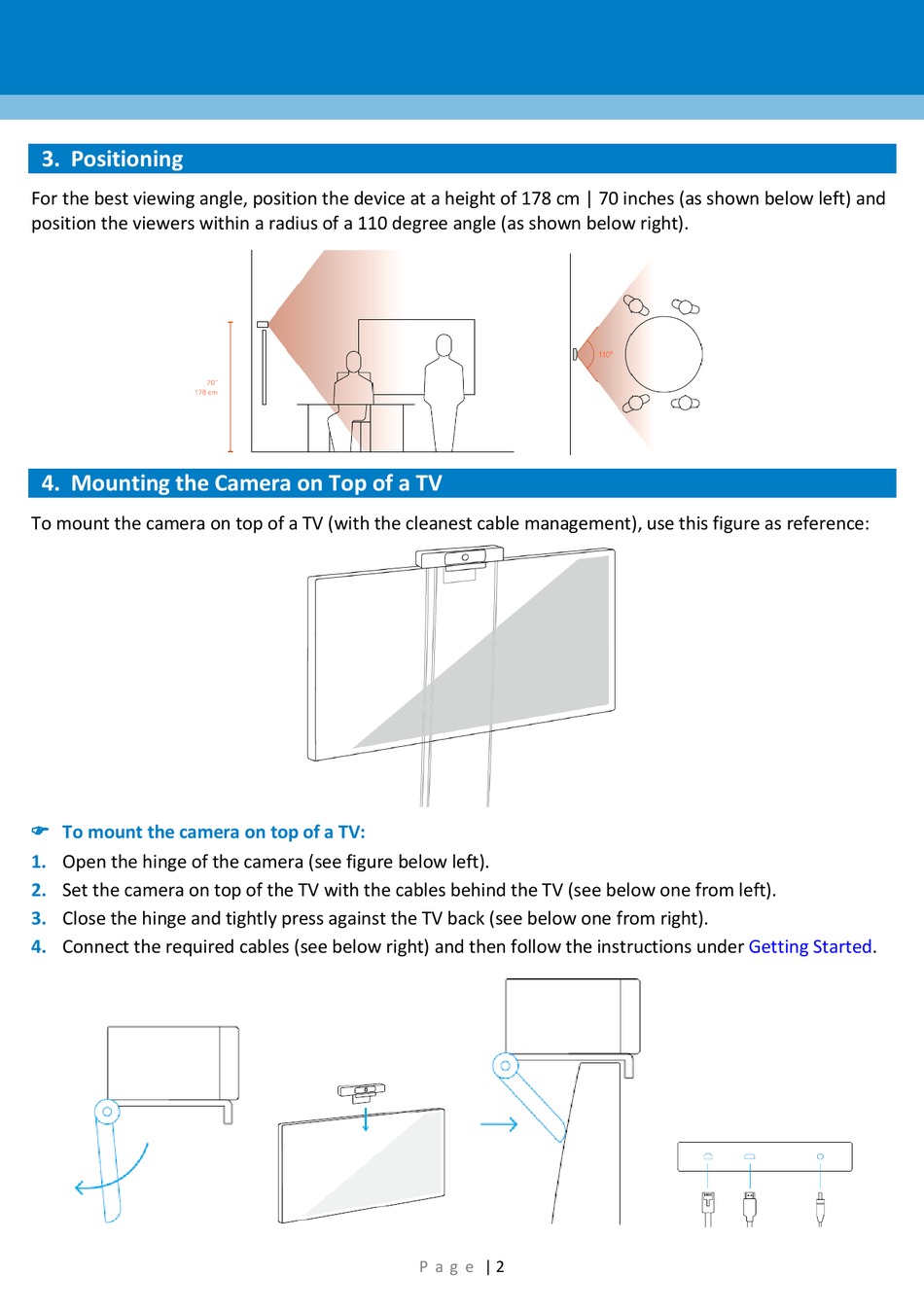

3. Positioning
For the best viewing angle, position the device at a height of 178 cm | 70 inches (as shown below left) and
position the viewers within a radius of a 110 degree angle (as shown below right).
4. Mounting the Camera on Top of a TV
To mount the camera on top of a TV (with the cleanest cable management), use this figure as reference:
 To mount the camera on top of a TV:
1.
Open the hinge of the camera (see figure below left).
2. Set the camera on top of the TV with the cables behind the TV (see below one from left).
3. Close the hinge and tightly press against the TV back (see below one from right).
4.
Connect the required cables (see below right) and then follow the instructions under
P a g e | 2
Getting Started.
