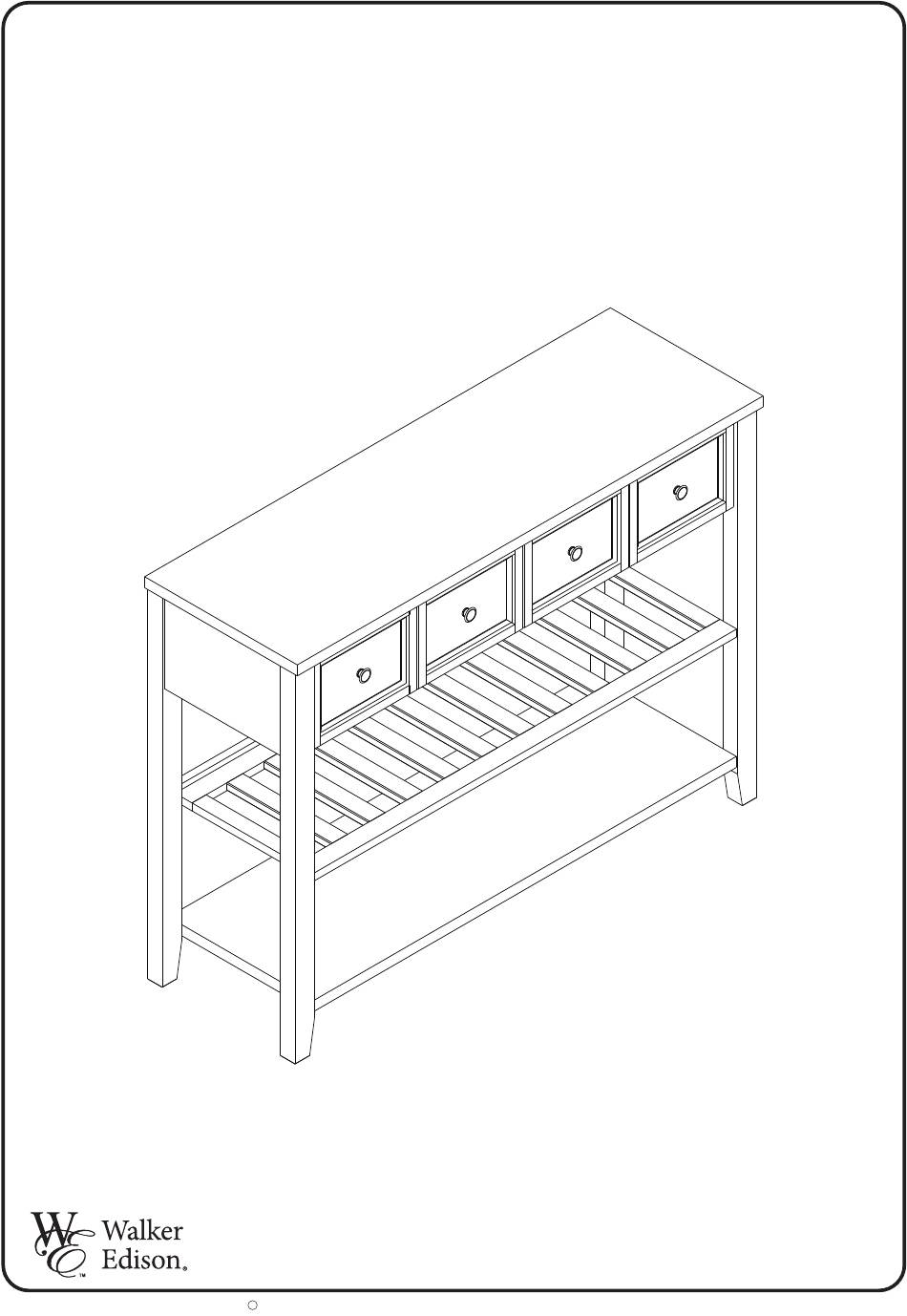

Item #: BU48HNK
Assembly Instruction
Please visit our website for the most current instructions, assembly tips report damage,
or request parts. www.walkeredison.com
Revised 08/2019
Copyright
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P .1
c
Advertisement
Related Manuals for Walker Edison BU48HNK
Summary of Contents for Walker Edison BU48HNK
- Page 1 Item #: BU48HNK Assembly Instruction Please visit our website for the most current instructions, assembly tips report damage, or request parts. www.walkeredison.com Revised 08/2019 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P .1...
- Page 3 (2x) P .3...
- Page 4 5,5x28mm Cam Bolt 09 pcs 14x14mm Cam Lock 09 pcs M4x25mm 04 pcs 4,0x3 mm 51 pcs 3,0x16 mm 10 pcs 51 pcs 8,0x30 mm Bracket 04 pcs Knob 04 pcs Drawer Limiter 02 pcs 3,5x30mm 01 pc Plastic Anchor 01 pc Washer 02 pcs...
- Page 5 Step 1 Insert wood dowel ( F ) into parts (1),(2),(3),(4),(5),(6),(7),(9),(10),(11),(13),(17) and (18). (2x) (2x) First insert wood dowel F (x8) into part 12, and Second, use Screw E (x4) to Step 2 attach Bracker G (x4) to part 12. ( x) P .5...
- Page 6 Insert part 2 into legs 1 and 3, and repeat with part 5 into 4 and 6. Step 3 Use Screw D (x8) to secure parts 2 and 5 to the legs. Use Screw D (x4) to attach part 7 to parts 2 and 5. (12x) Use Screw D (x2) to attach part 9 to part 8 and Screw D (x1) to attach part 13 to Step 4...
- Page 7 Step 5 Use Screw D (x5) to parts 13, 8, and 11 to part 1. Use Screw E (x2) to attach Bracket G to parts 1 and 3. (5x) (2x) Use Screw D (x5) to attach parts 11 and 8 to legs 6 and 4. Use Screw E (x2) to Step 6 attach Bracket G to parts 4 and 6.
- Page 8 Step 7 Insert the Cam Bolts A (x9) into part 14, and use Screw E (x2) to secure the Drawer Limiter I (x2). Fasten part 14 to the body of the sideboard with Cam Lock B (x9). Use Screw D (x2) to secure part 14 to the Sideboard. ( x) (9x) ( x)
- Page 9 Use Screw D (x16) to build and secure the two drawers. Step 9 (16x) Use Screw C (x4) to attach Knob H (x4) to the drawers. Step 10 (2x)
-
Page 10: Back Panel
Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
