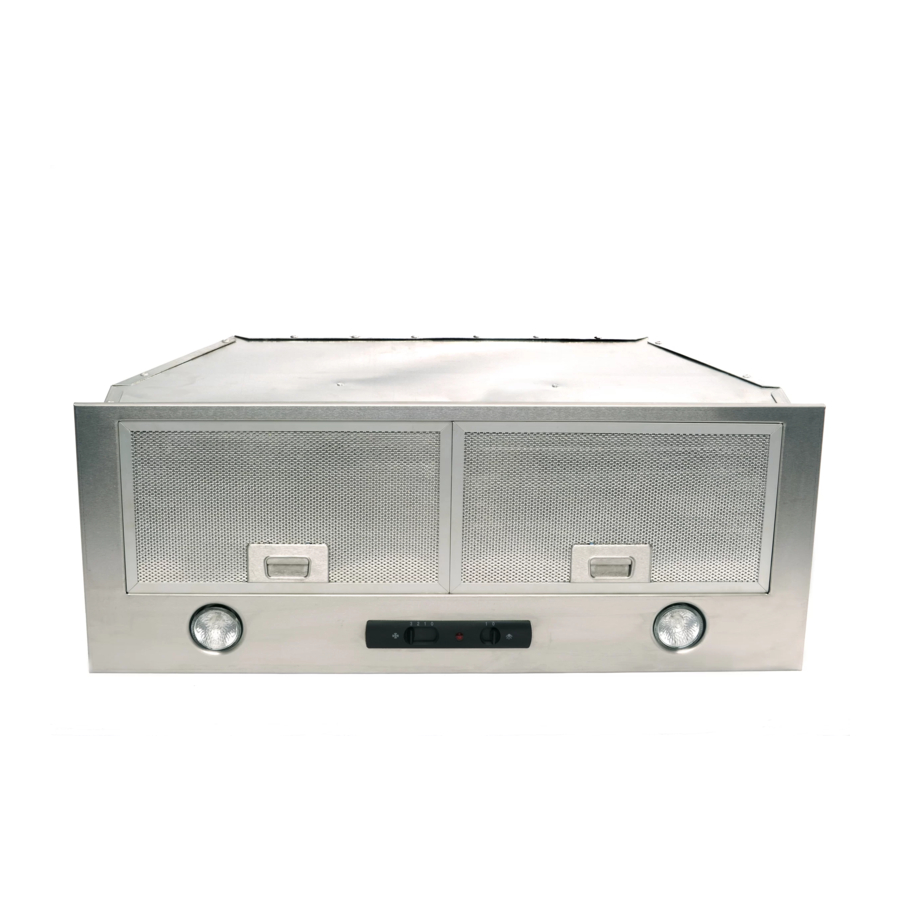

CyClone BX21528 Use And Care Manual

OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS

Fan Operation

Fan Speeds: The fan and light are each controlled by a slide control. The fan switch has four
positions: HIGH, MED, LOW and OFF.
Lights: A separate slide control turns the lights ON and OFF.

Grease Disposal

WARNING!
Do not remove grease cups immediately after cooking or if grease is still hot.
Nonstick-coated fan blades will separate grease from the air and the grease will then be
deposited into a grease cup for easy, convenient disposal.
You will find the grease cup in a bag with the bracket and screws in the box. The grease cup
can be used in conjunction with the mesh filters with certain models, while others can only
use one or the other.
Tip: Soak all parts in soapy water if there is heavy grease.

Changing Light bulbs

WARNING!
Ensure that lights have fully cooled before changing bulbs.
Firmly press your fingers against the light bulb and twist in a clockwise direction until loosened.
MAINTENANCE

Cleaning

WARNING!
Ensure that all power leading to your range hood has been disconnected
before disassembling any parts to your fan.
Mesh Filters: Removable filters can be cleaned by the dishwasher in the top rack, or by
soaking in the sink.
Exterior: The exterior of the machine can be maintained by wiping the surface area. Use a
stainless steel cleaner and a very gentle cloth for stainless steel machines.
USE AND CARE GUIDE
MODELS
BX21528
ON/OFF
3 2 1 0 1 0
Light
Fan Controls
Fan Housing
