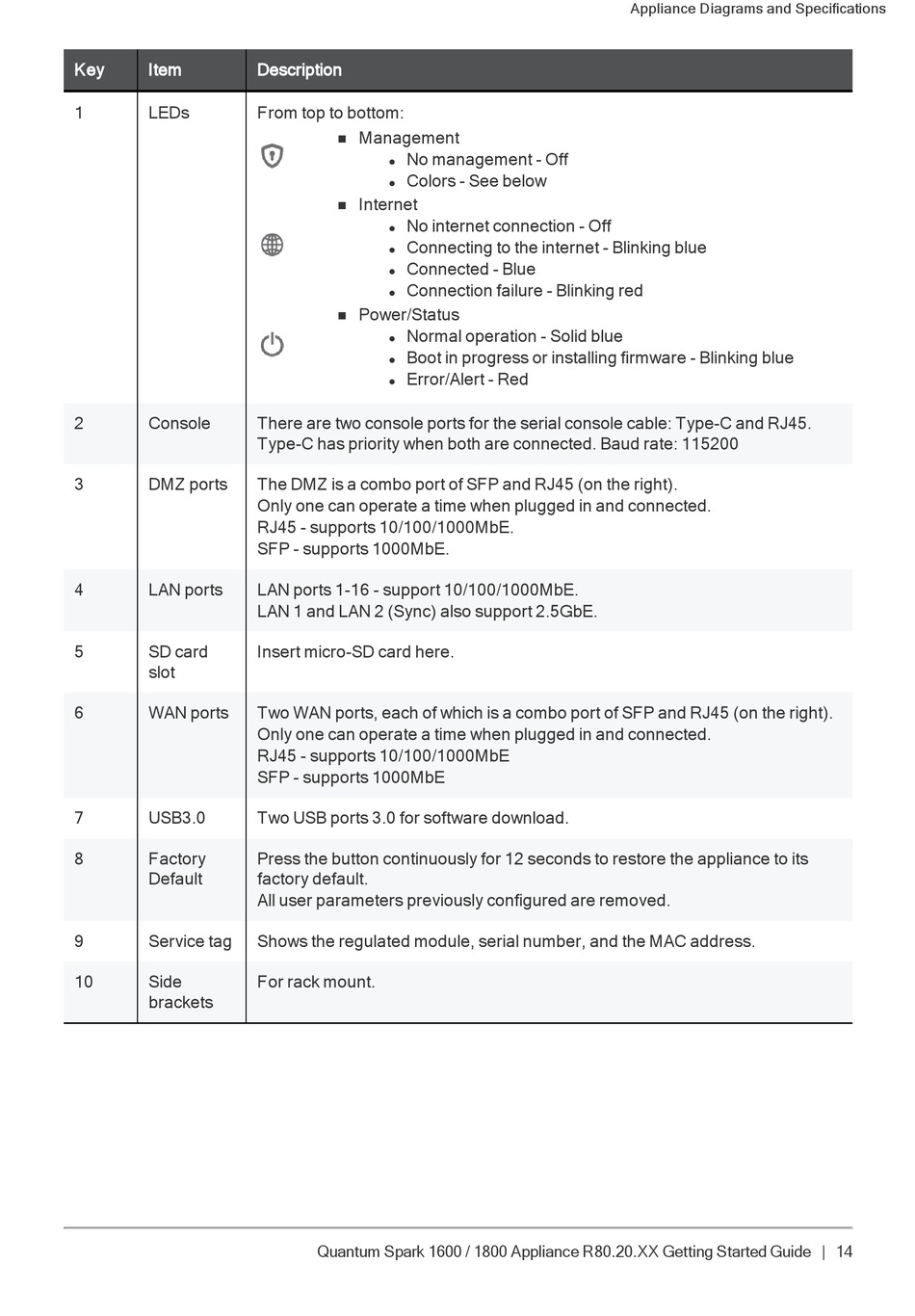

Check Point QUANTUM SPARK 1600 Getting Started Manual page 14

Key Item
1 LEDs
2 Console
3 DMZ ports
4 LAN ports
5 SD card
slot
6 WAN ports
7 USB3.0
8 Factory
Default
9 Service tag
10 Side
brackets
Description
From top to bottom:
Management
n
No management - Off
l
Colors - See below
l
Internet
n
No internet connection - Off
l
Connecting to the internet - Blinking blue
l
Connected - Blue
l
Connection failure - Blinking red
l
Power/Status
n
Normal operation - Solid blue
l
Boot in progress or installing firmware - Blinking blue
l
Error/Alert - Red
l
There are two console ports for the serial console cable: Type-C and RJ45.
Type-C has priority when both are connected. Baud rate: 115200
The DMZ is a combo port of SFP and RJ45 (on the right).
Only one can operate a time when plugged in and connected.
RJ45 - supports 10/100/1000MbE.
SFP - supports 1000MbE.
LAN ports 1-16 - support 10/100/1000MbE.
LAN 1 and LAN 2 (Sync) also support 2.5GbE.
Insert micro-SD card here.
Two WAN ports, each of which is a combo port of SFP and RJ45 (on the right).
Only one can operate a time when plugged in and connected.
RJ45 - supports 10/100/1000MbE
SFP - supports 1000MbE
Two USB ports 3.0 for software download.
Press the button continuously for 12 seconds to restore the appliance to its
factory default.
All user parameters previously configured are removed.
Shows the regulated module, serial number, and the MAC address.
For rack mount.
