Emerson Fisher FIELDVUE DVC6200 Mounting Instructions page 2

DVC6200 or DVC2000
Digital Valve Controller on
657 and 667 Size 30‐60 Actuators
sensor index mark on the alignment template (see
figure 1). The magnet assembly's top marking is used for
air‐to‐retract. The mounting bracket may require vertical
repositioning to get the magnet assembly in the correct
location. When the magnet assembly is properly
positioned, remove the alignment template and tighten
the two allen head machine screws (key 4).
9. Attach the digital valve controller to the mounting
bracket and tighten the three hex head cap screws
(key 1b).
10. Check the position of the magnet assembly (key 5) in
the channel of the digital valve controller housing and
ensure the magnet assembly is visually centered between
the channel walls and has adequate clearance with the
backside of the channel (approximately 3 mm).
11. Connect and calibrate the digital valve controller as
described in the instruction manual or quick start guide.
For additional information concerning mounting, setup,
calibration, or maintenance of the DVC6200 or DVC2000
digital valve controller, refer to the appropriate
instruction manual.

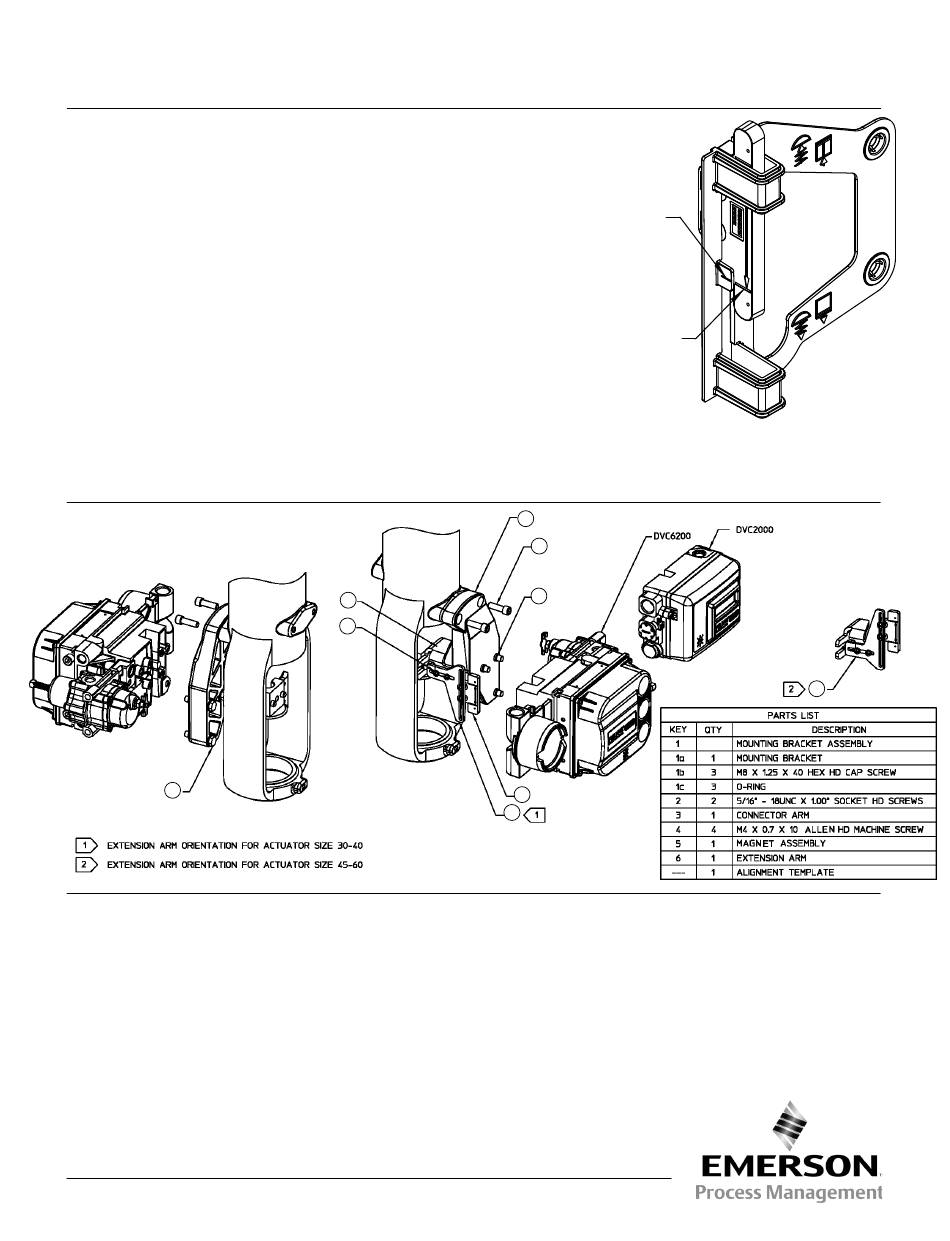

Figure 2. Mounting Parts Identification
GG03708
1b
Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance of
any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
Fisher and FIELDVUE are marks owned by one of the companies in the Emerson Process Management business division of Emerson Electric Co. Emerson
Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their
respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
Emerson Process Management
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Chatham, Kent ME4 4QZ UK
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
2
E 2010, 2012 Fisher Controls International LLC. All rights reserved.
Figure 1. Alignment Template
FIGURE SHOWS MAGNET ASSEMBLY
MARKING ALIGNED
WITH SENSOR INDEX MARK
FOR AIR‐TO‐EXTEND ACTUATOR
NOTE:
DURING THE COMPLETE STROKE OF THE ACTUATOR, AT ANY PARTICULAR POSITION, THE DIGITAL
VALVE CONTROLLER HALL SENSOR MUST REMAIN WITHIN THE MARKING SHOWN ON THE MAGNET
ASSEMBLY
GE43826
1a
3
4
5
6
Mounting Instructions
ASSEMBLY MARKING
2
1c
D103441X012
February 2012
6
