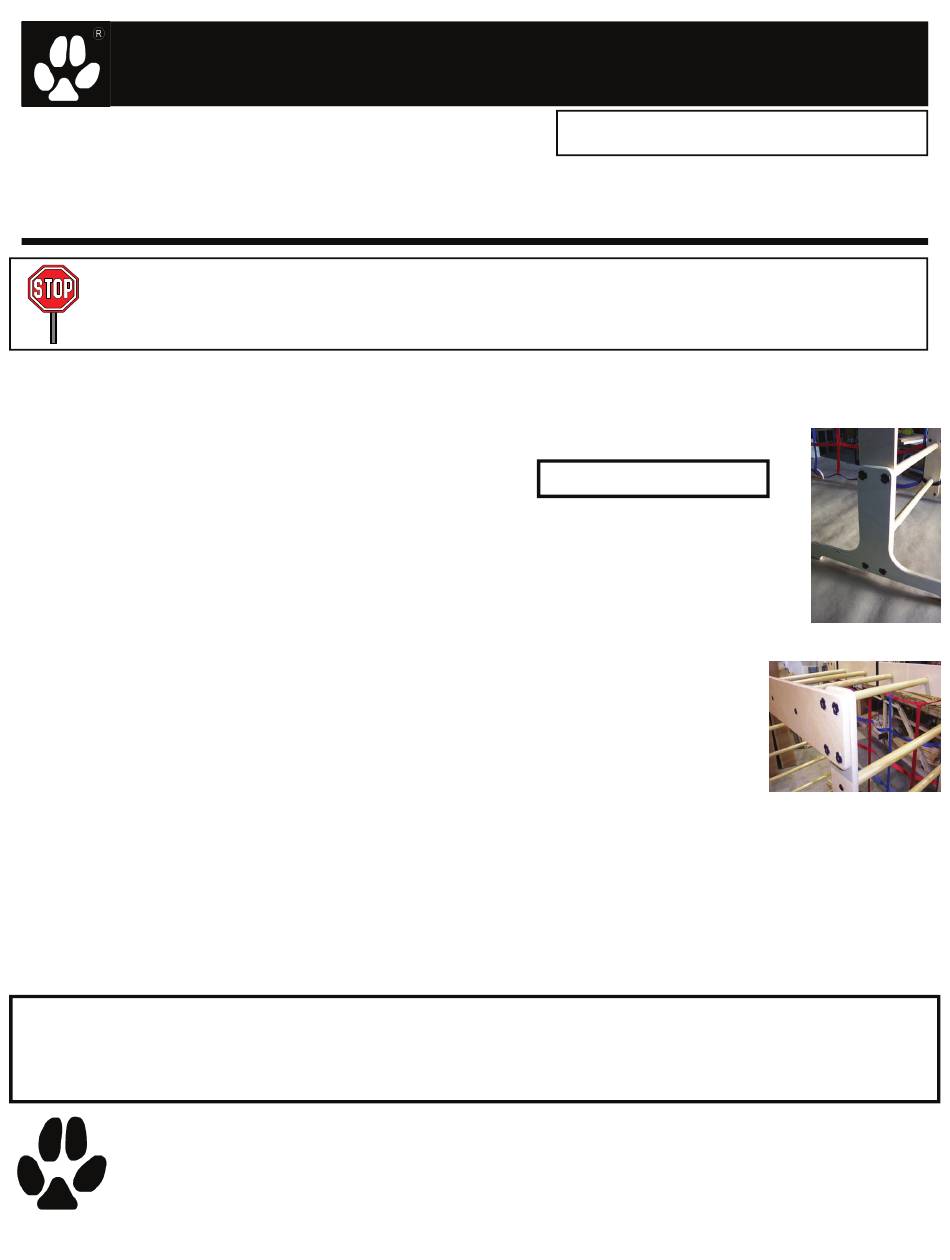

Instruction Sheet:
Jungle Gym 152006
Take time to familiarize yourself with the use and maintenance of this equipment before using. Please file
this Instruction Sheet in an accessible location. The Instruction Sheet must be read and familiar to anyone
who is using Southpaw Enterprises Equipment.
IMPORTANT: Please check equipment immediately for any damage that may have resulted during shipping.
If any damage has occurred, please contact Southpaw Enterprises, Inc. immediately.

MATERIALS LIST:

1 - Top Section 53" length
2 - Side Sections 50" length
4 - Bases
32 - Bolts

ASSEMBLY:

•
There are four holes on each end of the side sections. The hole spacing on one end match the threaded in-
serts on the bases. The holes on the other end are for the top section. Match the holes in the ladder with the
threaded inserts in the base. Put the base on the outside of the ladder with the threaded insert flanges to the
outside as shown in figure 1. Put a washer on each bolt. Put the bolt through the ladder from the inside and
start it into the threaded insert. Start all four bolts, then tighten them securely using the allen key provided.
Attach the base on the opposite side in the same manner. Assemble the other side section in the same
manner.
•
Attach one end of the top section to the end of one of the side sections putting the bolt / washer through
from the inside into the threaded insert as shown in figure 2. Tighten all bolts securely.
Maintenance Checklist:
All of the following wear points should be checked on a monthly basis and recorded on the maintenance
checklist enclosed.
•
Check wood for splinters. If splinters are found, sand smooth and refinish with lacquer.
•
Check for loose bolts. If loose bolts are found, tighten them securely.
Storage Procedures:
•
Store where not accessible by clients without proper supervision.
Cleaning Instructions:
Check with your infectious disease department before using these procedures.
•
Check for client allergies first.
•
Wipe with a damp cloth using soap and water or disinfectant. Dry before using.
Safety Precautions - The safety of your clients is dependent on the appropriate choice of activity to match, yet challenge their physical abilities. Use appropriate
spotting / safety techniques. In addition, the layout of your activity area, proper installation and maintenance of your equipment is critical. Southpaw equipment is
not intended for recreational or outdoor use. Under no condition should this equipment be used without proper supervision.
This sheet is for example only. It is not meant to, in any way, replace local, county, state, or Federal standards. Be aware - it is your responsibility to find all
Southpaw
Enterprises Inc.
32 - Washers
1 - Instruction Sheet

1 - Maintenance Checklist

®
Store these instructions along with the enclosed maintenance checklist
in a safe place. You may also access them on our website.
WORKING LOAD: 300 lbs
®
Figure 1
Figure 2
