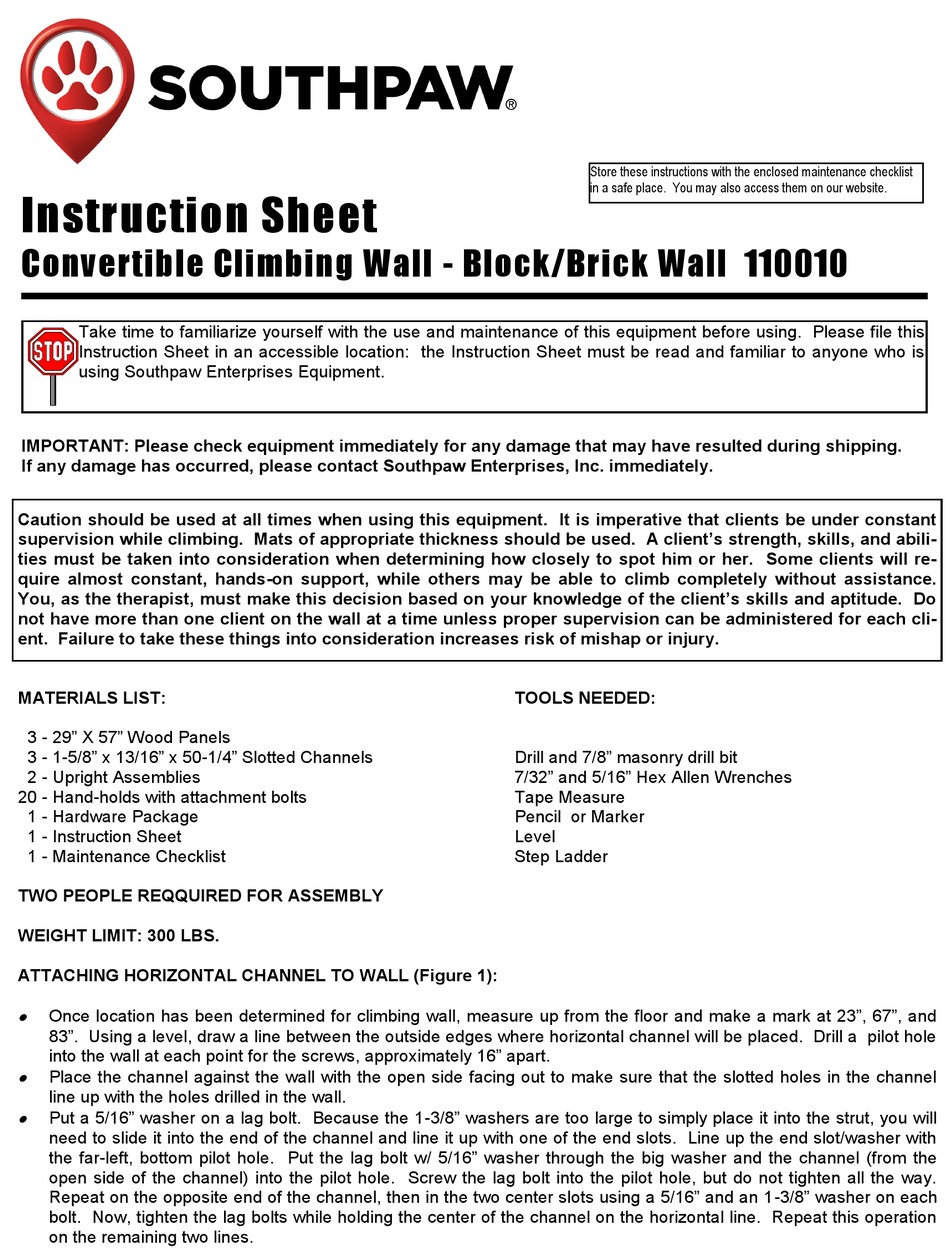

Instruction Sheet
Convertible Climbing Wall - Block/Brick Wall 110010
Take time to familiarize yourself with the use and maintenance of this equipment before using. Please file this
Instruction Sheet in an accessible location: the Instruction Sheet must be read and familiar to anyone who is
using Southpaw Enterprises Equipment.
IMPORTANT: Please check equipment immediately for any damage that may have resulted during shipping.
If any damage has occurred, please contact Southpaw Enterprises, Inc. immediately.
Caution should be used at all times when using this equipment. It is imperative that clients be under constant
supervision while climbing. Mats of appropriate thickness should be used. A client's strength, skills, and abili-
ties must be taken into consideration when determining how closely to spot him or her. Some clients will re-
quire almost constant, hands-on support, while others may be able to climb completely without assistance.
You, as the therapist, must make this decision based on your knowledge of the client's skills and aptitude. Do
not have more than one client on the wall at a time unless proper supervision can be administered for each cli-
ent. Failure to take these things into consideration increases risk of mishap or injury.
MATERIALS LIST:
3 - 29" X 57" Wood Panels
3 - 1-5/8" x 13/16" x 50-1/4" Slotted Channels
2 - Upright Assemblies
20 - Hand-holds with attachment bolts
1 - Hardware Package
1 - Instruction Sheet
1 - Maintenance Checklist
TWO PEOPLE REQQUIRED FOR ASSEMBLY
WEIGHT LIMIT: 300 LBS.
ATTACHING HORIZONTAL CHANNEL TO WALL (Figure 1):
Once location has been determined for climbing wall, measure up from the floor and make a mark at 23", 67", and
83". Using a level, draw a line between the outside edges where horizontal channel will be placed. Drill a pilot hole
into the wall at each point for the screws, approximately 16" apart.
Place the channel against the wall with the open side facing out to make sure that the slotted holes in the channel
line up with the holes drilled in the wall.
Put a 5/16" washer on a lag bolt. Because the 1-3/8" washers are too large to simply place it into the strut, you will
need to slide it into the end of the channel and line it up with one of the end slots. Line up the end slot/washer with
the far-left, bottom pilot hole. Put the lag bolt w/ 5/16" washer through the big washer and the channel (from the
open side of the channel) into the pilot hole. Screw the lag bolt into the pilot hole, but do not tighten all the way.
Repeat on the opposite end of the channel, then in the two center slots using a 5/16" and an 1-3/8" washer on each
bolt. Now, tighten the lag bolts while holding the center of the channel on the horizontal line. Repeat this operation
on the remaining two lines.
Store these instructions with the enclosed maintenance checklist
in a safe place. You may also access them on our website.
TOOLS NEEDED:
Drill and 7/8" masonry drill bit
7/32" and 5/16" Hex Allen Wrenches
Tape Measure
Pencil or Marker
Level
Step Ladder

Advertisement

loading
Need help?

Need help?

Do you have a question about the 110010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for southpaw enterprises 110010

  • Page 1 IMPORTANT: Please check equipment immediately for any damage that may have resulted during shipping. If any damage has occurred, please contact Southpaw Enterprises, Inc. immediately. Caution should be used at all times when using this equipment. It is imperative that clients be under constant supervision while climbing.
  • Page 2 ATTACHING THE CENTER PANEL TO THE VERTICAL CHANNEL (Figure 1): 1. Lay the two upright assemblies on the floor with the open side facing up and the wheels to the right (see figure 1). Measure up from the bottom (the end with the wheels) and make a mark at 43-5/8” on each of the inside channels.
  • Page 3 Correct bolt usage: ATTACHING THE HAND-HOLDS: Holds with washer Holds without washer 1. Attach the hand-holds by using the appropriate length socket head bolt through the hole in the hand-hold into the threaded holes in the panel and tighten with the hex wrench provided. These may be placed to suit the ac- tivities and skill level of the users.
  • Page 4: Storage Procedures

    If you have any questions or comments, please call or write Southpaw Enterprises, Inc. P.O. Box 1047, Dayton, Ohio 45401-1047 Toll Free - (800) 228-1698 Please visit us at www.southpaw.com © 2019 Southpaw Enterprises, Inc.
  • Page 6 Figure 1...
  • Page 10 Figure 3...
  • Page 11: Materials List

    BEFORE starting assembly of the unit(s). File this Instruction Sheet in an accessible location, as this Instruction Sheet must be read and familiar to anyone who is using Southpaw Enterprises’ equipment. IMPORTANT: Please check equipment immediately for any damage that may have resulted during shipping.
  • Page 12 ATTACHING THE CENTER PANEL TO THE VERTICAL CHANNEL (Figure 2): 1. Lay the two upright assemblies on the floor with the open side facing up and the wheels on the right side (see figure 2). Measure up from the bottom (the end with the wheels) and make a mark at 43-5/8” on each of the slotted chan- nels.
  • Page 13: Maintenance Checklist

    ATTACHING THE HAND-HOLDS:  Attach the hand-holds by using the appropriate length socket head bolt through the hole in the hand-hold into the threaded holes in the panel and tighten with the hex wrench provided. These may be placed to suit the activities and skill level of the users.
  • Page 14 If you have any questions or comments, please call or write Southpaw Enterprises, Inc. P.O. Box 1047, Dayton, Ohio 45401-1047 Toll Free - (800) 228-1698 Please visit us at www.southpaw.com © 2019 Southpaw Enterprises, Inc.
  • Page 16 Figure 2...
  • Page 17 Figure 3...
  • Page 18 Figure 4...
  • Page 19 BEFORE starting assembly of the unit(s). File this Instruction Sheet in an accessible location, as this Instruction Sheet must be read and familiar to anyone who is using Southpaw Enterprises’ equipment. IMPORTANT: Please check equipment immediately for any damage that may have resulted during shipping.
  • Page 20 1. Lay the two upright assemblies on the floor with the open side facing up and the wheels on the right side (see figure 2). Measure up from the bottom (the end with the wheels) and make a mark at 43-5/8” on each of the slotted chan- nels.
  • Page 21 skill level of the users.  Check carefully inside the hole of each hold to see if there is a washer present in order to select the proper bolt (see picture at left). Place the bolt in the hold, through the wall, and into the t-nut. Tighten with an allen wrench until the hold is snug and does not spin.
  • Page 22 If you have any questions or comments, please call or write Southpaw Enterprises, Inc. P.O. Box 1047, Dayton, Ohio 45401-1047 Toll Free - (800) 228-1698 Please visit us at www.southpaw.com © 2019 Southpaw Enterprises, Inc.
  • Page 24 Figure 2...
  • Page 25 Figure 3...
  • Page 26 Figure 4...
