southpaw enterprises 1330 Instruction Sheet

southpaw enterprises, inc.
Instruction Sheet
Inflatable Barrel Kit 1330-Large
Take time to familiarize yourself with the use and maintenance of this equipment before using. Please file
this Instruction Sheet in an accessible location: the Instruction Sheet must be read and familiar to anyone
who is using Southpaw Enterprises Equipment.
IMPORTANT: Please check equipment immediately for any damage that may have resulted during shipping.
If any damage has occurred, please contact Southpaw Enterprises, Inc. immediately.

MATERIALS LIST:

1 - Blue Vinyl Cover
3 - Tubes
3 - Valve Stem Covers
3 - White Tube Wraps

TOOLS NEEDED:

Pressurized air or a good tire pump.
NOTE: Do not untie or cut the white cords in the blue vinyl cover. These
are adjusted to the correct diameter.

Assembly Procedures:

REQUIRES TWO (2) PEOPLE TO ASSEMBLE.

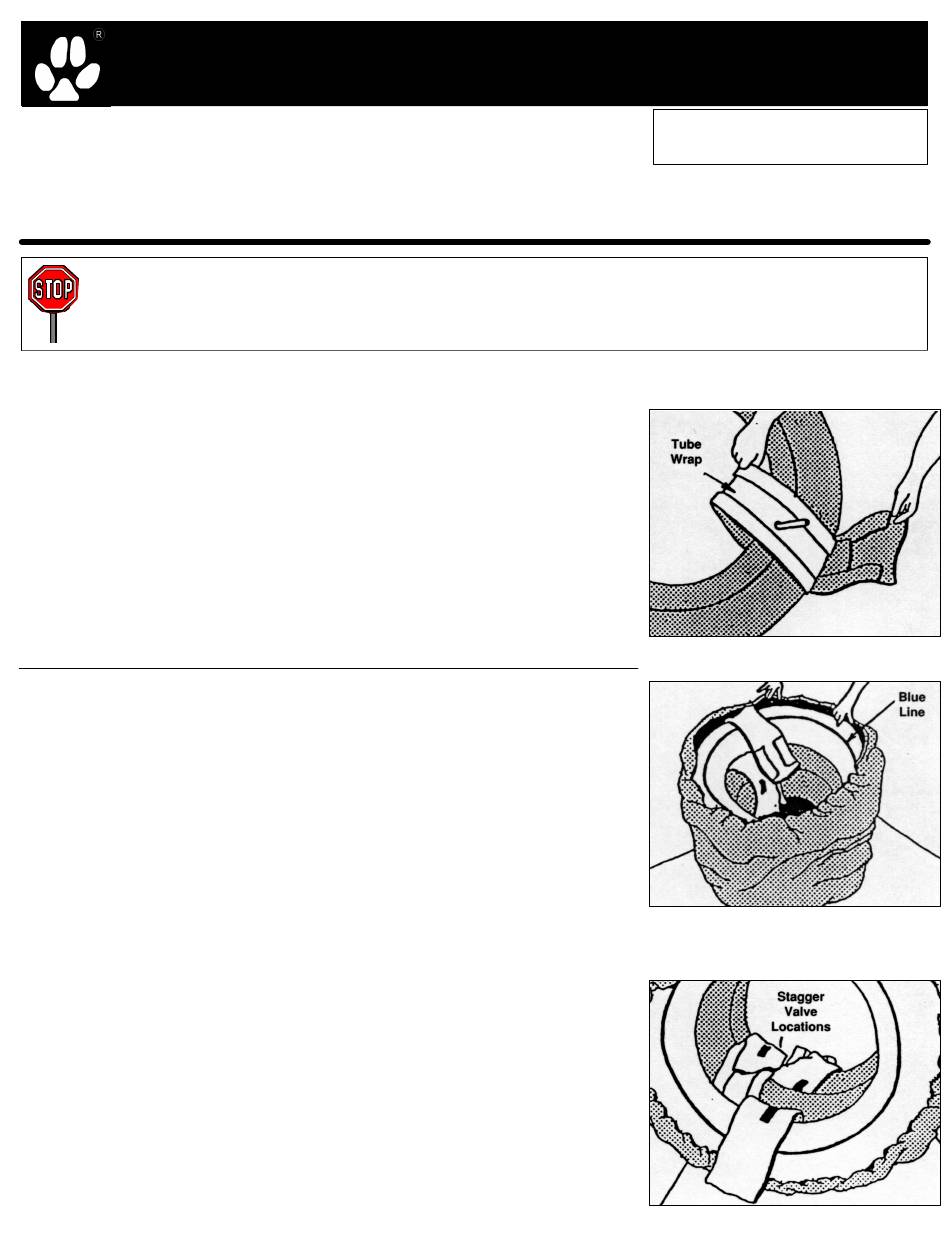

1. Partially inflate the tubes, just enough to give them shape.
2. Loosely put on the tube wraps (NOTE: Direction tube wrap fits on tube).
(See Figure 1).
•
Special Note: When placing tubes in barrel cover, have the blue line facing
out on the outside tubes. (See Figure 2a).
When putting tubes in barrel cover, be sure to stagger valve locations.
(See Figure 2b).
3. Turn barrel on its side and make an initial adjustment of the tubes and cover.
Align the cover to be equal distant from the blue line on the tube and check
both ends and adjust the tube wrap. (See Figure 3).
4. Start inflating the outside tubes, continue checking the alignment of the
cover. Also watch that the valve does not catch or bind, or it will constrict the
tube. (See Figure 4).
•
Special Note: You may have to release air to make adjustments; to do this
insert the included valve stem tool into the valve stem and turn counter
clockwise to loosen the core and let out the amount of air desired, then
tighten the core by turning the valve stem tool clockwise.
5. Continue to inflate the outer tubes to about 2/3 of finished size.
1 - Valve Stem Tool
1 - Instruction Sheet
1 - Maintenance Checklist
WORKING LOAD: 250 lbs.
Store these instructions in a safe place or
with the enclosed maintenance checklist
1331-Huge
Figure 1
Figure 2a
Figure 2b
®
