Instruction Sheet

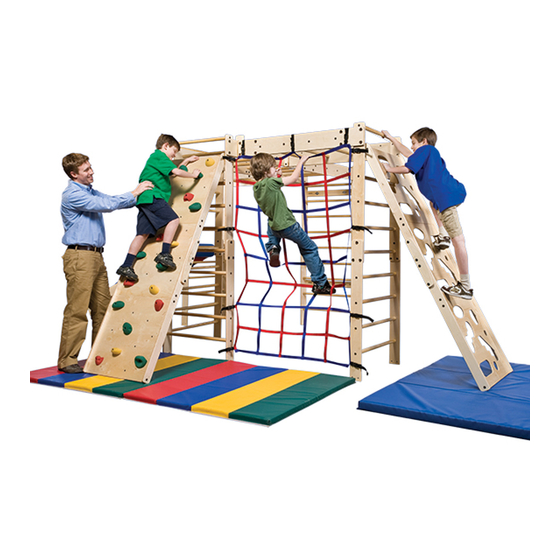

In-FUN-ity Climbing System Assembly Examples
This example sheet is intended to supplement the instruction sheets that come with each individual In-FUN-ity® prod-
uct. The In-FUN-ity® system is modular, which allows you to purchase one, or many of the individual pieces, and it can
be expanded at any time. The flexibility of the system makes it very challenging to have a set of instructions that explain
"how it all goes together", since, theoretically, every In-FUN-ity® system might be assembled differently. Not pictured
here are the In-FUN-ity® Scooter Board Ramp, Rock Wall, or Rope. These can be placed virtually anywhere there is a
ladder.
The following pages will illustrate a few of the many ways that an In-FUN-ity® system can be configured, and gives a
"big picture" view of the assemblies. Together with the individual instruction sheets, this supplement should ease the
process of building your system.
Illustration #1 is the basic In-FUN-ity® Wall Ladder (Item # 152000, 152001, 152002). These part numbers differ
1
only in the type of hardware that comes with the ladder, which is dependent on the type of wall that the ladder will
be attached to. This is the foundation for the rest of the system. It is 31" wide and 81-1/2" high.
Illustration #2 shows the In-FUN-ity® Expansion Kit (Item # 152013), assembled (but not yet attached to the lad-
2
der). It is shown with the Wall Ladder because this item is not a stand-alone item, but must attach to a Wall Ladder.
It is 31" wide, and 51" long, and will land approximately 55" from the wall when assembled to the Wall Ladder. If
you look closely, you can see two sets of holes at the top. The top portion is intended to attach to the ladder with
the set of holes closest to the Wall Ladder, but either set could be used.
Illustration #3 shows the In-FUN-ity® Jungle Gym Extender (Item # 152014). The illustration shows two pieces,
3
the smaller of which will be shipped unassembled. It assembles in two minutes with the included screws and a hex-
wrench. The illustration also shows how the two pieces go together. It will extend an Expansion Kit by 51"
Illustration #4 is designed to show how the Wall Ladder and Expansion Kit assemble to one another. In this con-
4
figuration, the two sets of inside holes on the overhead piece of the expansion kits go unused. This is because, at
any time, the overhead part may be expanded with one or two Jungle Gym Extenders, which will utilize the holes.
Illustration #5 depicts the assembly of a Wall Ladder to an Expansion Kit with a Jungle Gym Extender. Note how
5
the assembly from illustration #3 fits right into the end of the expansion kit. This system would extend 8' 10" away
from the wall.
Illustration #6 depicts the assembly of a Wall Ladder to an Expansion Kit with TWO Jungle Gym Extenders. This
6
configuration is approximately 13 feet in length.
Illustration #7 begins to show the true versatility of the In-FUN-ity® system. Shown here is a Wall Ladder, an Ex-
7
pansion Kit with one Jungle Gym Extender, and a second Expansion Kit. The second expansion kit can be added
to either side, and hooks on with the In-FUN-ity® Right Angle Adapter (Item # 152015 not shown). It is a simple
hook that bolts to the end of the expansion kit and hooks onto an Expansion Kit or Jungle Gym Extender.
Illustration #8 shows a large, more complex and MORE FUN system! The possibilities become endless. Pictured
8
are one Wall Ladder, three Expansion Kits, two Jungle Gym Extenders and two Right Angle Adapters (not shown).
Illustration #9 depicts a large, fairly complex In-FUN-ity® system. Pictured are one Wall Ladder, six Expansion
9
Kits, 5 Jungle Gym Extenders, four right angle adapters (not shown), and one In-FUN-ity® Hook-On-Ladder (see
below).
At a customer's request, we added the In-FUN-ity® Hook-On-Ladder (Item # 152017), a single ladder that can
10
hook onto any Expansions Kit or Jungle Gym Extender without the overhead piece.
11 This is simply to point out that Expansion Kits can be chained together without a Jungle Gym Extender, if desired.
