Pairing of ANT+ Console & RPM transmitter.
*Also refer to owner´s manual (pages 8-10)
Applicable for Product:
Applicable for Product Version:
Applicable for Product Art. No.:
Applicable for Product Serial No.:

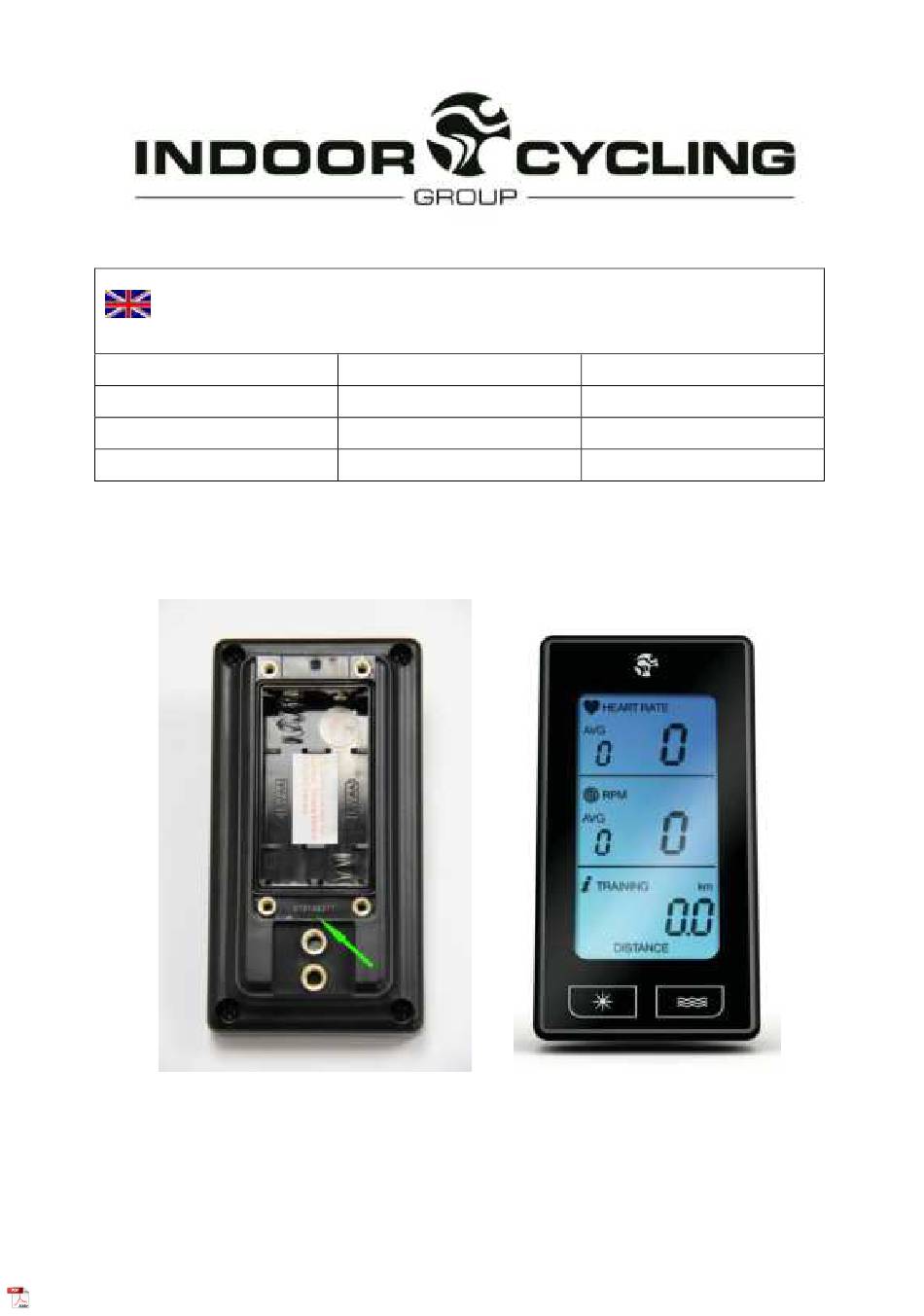

The Serial Number information can be found under the battery cover as shown below.
Please make sure to identify the product prior to performing any repair job.
_________________________________________________________________________________
FB TS ANT 01
ICG® Standard Operating Procedure | released by ICG® Service Department
TASK DESCRIPTION:
ANT+ Bike Computer Set
CO-TK3WL-01
320-00-00001-01
312130001 > ......
30.08.2013 V1.0
1
Advertisement
Table of Contents
Related Manuals for Indoor Cycling ANT+
Summary of Contents for Indoor Cycling ANT+
- Page 1 30.08.2013 V1.0 TASK DESCRIPTION: Pairing of ANT+ Console & RPM transmitter. *Also refer to owner´s manual (pages 8-10) Applicable for Product: ANT+ Bike Computer Set ANT+ Console Applicable for Product Version: Applicable for Product Art. No.: CO-TK3WL-01 320-00-00001-01 312130001 > …… Applicable for Product Serial No.: The Serial Number information can be found under the battery cover as shown below.
- Page 2 30.08.2013 V1.0 ANT+ CONSOLE AFFECTED PARTS: SPARE ICG ARTICLE NUMBER PART DESCRIPTION COMMENTS NO. OF PARTS PART PER BIKE (OPTIONAL) CO-TK3WL-01 ANT+ BIKE COMPUTER SET Includes: *ANT+ CONSOLE: 320-00-00001-01 - Owner manual - Phillips head machine bolt, M5 x 11 x 0,8P , ss304 STAINLESS STEEL, 2x - Counter sunk Hex.
- Page 3 30.08.2013 V1.0 Warning! Please pay attention that the bike is positioned stably and properly secured while repair work is being performed. 1) Press any button while inserting batteries into the ANT+ console _________________________________________________________________________________ FB TS ANT 01 ICG® Standard Operating Procedure | released by ICG® Service Department...
- Page 4 30.08.2013 V1.0 2) Press “SUN” button to display software version 3) Press “SUN” button again to choose ANT+ RPM pairing mode _________________________________________________________________________________ FB TS ANT 01 ICG® Standard Operating Procedure | released by ICG® Service Department...
- Page 5 30.08.2013 V1.0 4) Press “FLOW” button to start ANT+ RPM pairing During the pairing process, make sure to: Put the console as close as possible to the ANT+ bike transmitter. Keep the flywheel in motion by slowly turning the cranks by hand in order to provide a RPM signal.
- Page 6 30.08.2013 V1.0 6) KM / MILES settings a) Press the “SUN” button to enter KM / MILE setting. b) Press “FLOW” button to select between KM or MILES. c) Press “SUN” button to confirm your selection and enter gear ratio settings. _________________________________________________________________________________ FB TS ANT 01 ICG®...
- Page 7 30.08.2013 V1.0 7) Gear ratio settings a) Press “FLOW” button to select the gear ratios available: - 1:3.1 for ICG bikes with V-Belt Drive. (IC3, S & E-Series). - 1:4.0 for ICG bikes with Timing-Belt Drive. - 1:4.3 for KRANKcycle. b) Press “SUN”...
- Page 8 30.08.2013 V1.0 IF THE PAIRING PROCESS HAS NOT BEEN SUCCESSFUL, PROCEED AS FOLLOWS: 8) Battery exchange and resetting of console in order to resolve any issues to the functioning. *see also the owner´s manual (page 14) a) Remove the batteries of the ANT+ console. b) Press both buttons on the front of the ANT+ console for at least 10 seconds.
- Page 9 30.08.2013 V1.0 9) Battery exchange and resetting of cadence transmitter *see also the owner´s manual (page 15) a) Use a screwdriver to remove the cadence transmitter from the bike/KRANKcycle frame. b) Remove the batteries from the cadence transmitter. c) Wait for at least 30 seconds before re-inserting the batteries and repeat steps 1-7. ...
- Page 10 30.08.2013 V1.0 10) End of the operation a) Use the Phillips screwdriver to secure the batteries cover. b) Simulate a brief session and test if the ANT+ computer properly reads and displays all the information. Please note: Heart rate will only be displayed when you are using your personal HR chest belt (analog chest belts will be paired automatically;...
