DCP part names and operations

■

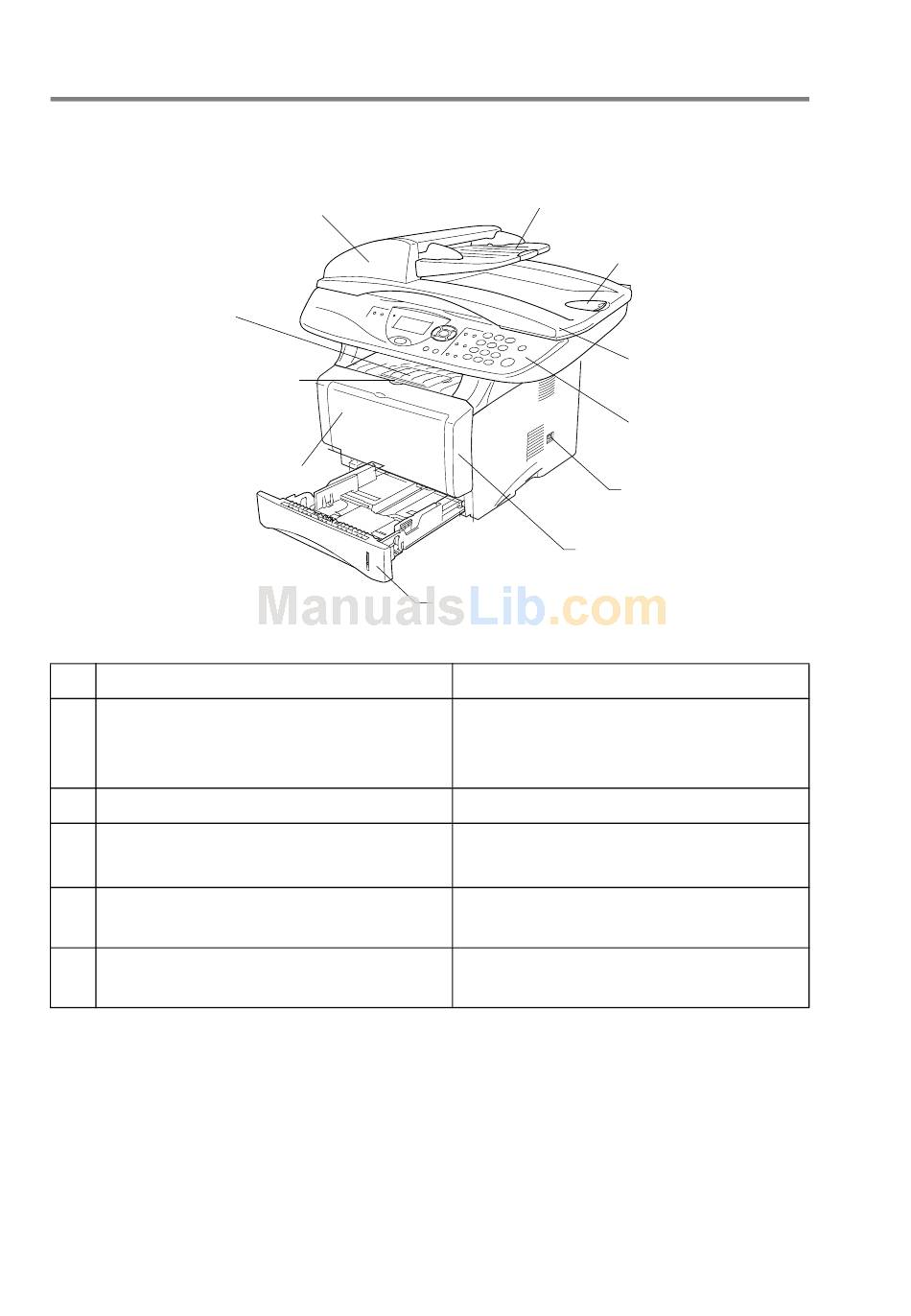

Front view
4 Automatic Document Feeder (ADF)
3 Face-down Output Tray
Support Flap with Extension
2 Front Cover Release Button
1 (DCP-8040) Manual Feed Tray
(DCP-8045D) Multi-purpose
Tray (MP Tray)
No. Name
1 (DCP-8040) Manual Feed Tray
(DCP-8045D) Multi-purpose Tray
(MP Tray)
2 Front Cover Release Button
3 Face-down Output Tray Support Flap
with Extension (Support Flap)
4 Automatic Document Feeder (ADF)
5 ADF Document Support Extension
1 - 2 INTRODUCTION
5 ADF Document Support
Extension
10 Front Cover
11 Paper Tray (Tray #1)
Description
Load paper here.
Press it to open the front cover.
Unfold it to prevent the printed paper
from sliding off the DCP.
Use the ADF unit for multiple page
documents.
Place the document here to use the
ADF unit.
6 ADF Document
Output Support Flap
7 Document Cover
8 Control Panel
9 Power Switch
