  • Page 1 NV9604 Control Panel User’s Guide Miranda Technologies Inc. 3499 Douglas B. Floreani Montreal, Quebec Canada H4S 2C6...
  • Page 2 The information and intellectual property contained herein is confidential between Miranda and the client and remains the exclusive property of Miranda. If you find any problems in the documentation, please report them to us in writing. Miranda does not warrant that this document is error-free.
  • Page 3 Contact Miranda for details on the software license agreement and product warranty. Technical Support Contact Information Miranda has made every effort to ensure that the equipment you receive is in perfect working order and that the equipment fits your needs. In the event that problems arise that you cannot resolve, or...
  • Page 4 D. Cox Restriction on Hazardous Substances (RoHS) Miranda is in compliance with EU Directive RoHS 2002/95/EC governing the restricted use of cer- tain hazardous substances and materials in products and in our manufacturing processes. Miranda has a substantial program in place for RoHS compliance that includes significant invest- ment in our manufacturing process, and a migration of Miranda product electronic components and structural materials to RoHS compliance.
  • Page 5 The fuse symbol indicates that the fuse referenced in the text must be replaced with one having the ratings indicated. The presence of this symbol in or on Miranda equipment means that it has been designed, tested and certified as complying with applicable Underwriter’s Laboratory (USA) regulations and rec- ommendations.
  • Page 6 General Warnings A warning indicates a possible hazard to personnel which may cause injury or death. Observe the following general warnings when using or working on this equipment: • Heed all warnings on the unit and in the operating instructions. •...

  • Page 7: Table Of Contents

    NV9604 Panel Configuration Page ........
  • Page 8 NV9604 Specifications ........

  • Page 9: Preface

    1. Preface Chapter 1 is an introduction to the NV9604 User’s Guide. It presents the following topics: • Chapter Structure • The PDF Document • Terms, Conventions and Abbreviations Chapter Structure The following chapters provide detailed information regarding the NV9604 Control Panel: •...

  • Page 10: Terms, Conventions And Abbreviations

    • Press the SRC 12 button ... The following terms and abbreviations are used throughout this guide: • The term “control panel” refers to the NV9604 control panel and to NV96xx control panels, in general. • “High tally” means that a button is brightly illuminated. High-tally usually means that the but- ton function is selected or active.

  • Page 11: Introduction

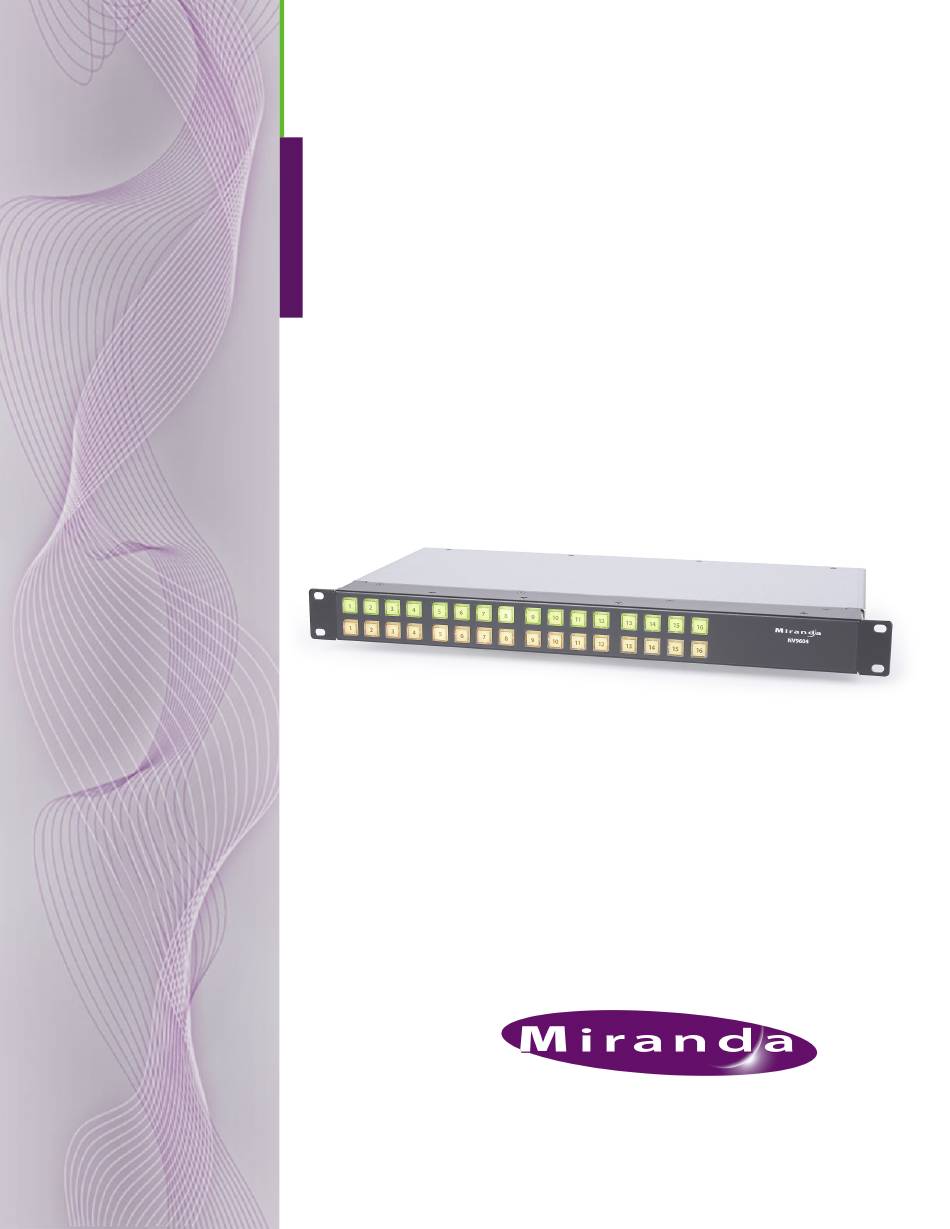

    Other NV9604 Functions Summary The NV9604 is a 1RU control panel, slightly over 9″ deep, overall. It has 32 backlit function but- tons. The NV9604 can operate either by itself as a stand-alone panel or as a extension of an NV9602 control panel.

  • Page 12: Panel Organization

    Panel Organization Function Buttons The NV9604 has an array of 32 function buttons. There is a limited set of button functions when the panel is stand-alone. When it is an NV9602 extension, the buttons’ functions are slightly differ- ent in each of the 4 operating modes of the NV9602. (See Modes of Operation, next.)

  • Page 13: Under Nv9602 Control

    ‘Destination Shift’ button of the NV9602 affect source and destination selections on the NV9604. Multi-Destination Mode This mode is not available when the NV9604 is stand-alone. In this mode, source buttons of the NV9602 are configured with destinations as well as sources.

  • Page 14: Under Nv9602 Control

    2. Introduction Other NV9604 Functions Under NV9602 Control The NV9604 can be used only for salvo buttons when it is under control of a NV9602 configured in multi-destination mode. Secondary Modes The NV9604 of itself has no secondary modes. The NV9604 has a limited self-test capability, but no setup mode in which to change its panel ID.

  • Page 15: Installation

    Testing Package Contents If you have ordered one or more NV9604 control panels from Miranda, inspect the shipping con- tainer for damage. If you find any container damage, unpack and inspect the contents. If the con- tents are damaged, notify the carrier immediately.

  • Page 16: Installation

    NV9000 configuration software. You may use the Panel IP Configuration Utility if you want to your NV9604 to have a static IP address (with respect to the NV9000) or to use DHCP. The panel, as it comes from the factory, defaults to DHCP.

  • Page 17: Setting The Panel Id

    If no actual panel has that ID, the upload cannot occur. Setting the Panel ID It is not possible to set the panel ID of an NV9604 at the panel itself. You must use NV9000-SE Utilities to set the panel ID.
  • Page 18 NV9604 you have connected. This example shows a panel ID of 0. Usually, NV9604 panels from the factory have an ID of 0. 5 Right-click that list entry. You will get a message allowing you to change the panel ID: 6 Click ‘Change ID’.

  • Page 19: Testing

    5 Does the configuration actually work? Is it useful? Can the operator perform takes and perform other operations? 6 If the NV9604 is intended to be an extension to an NV9602, ensure that in its configuration, the ‘Use as Slave Panel’ checkbox is checked and that an NV9602 has been selected.
  • Page 20 3. Installation Testing You can test a take using the NV9602/NV9604 pair. Press a destination or a source on the NV9604 to see if the destination or source is identified in the display of the NV9602. Rev 1.0 • 18 Aug 10...

  • Page 21: Configuration

    Summary The NV9604 is a relatively simple panel. It has 32 function buttons. It can operate stand-alone as a single-destination panel or as a limited X-Y panel. It can also operate as an extension to an NV9602 control panel.
  • Page 22 Click ‘Add Control Panel’ at the bottom of the configuration page. The ‘Add Control Panel’ page appears: Choose “NV9604” from the ‘Type’ field. In the ID field, enter the panel ID you assigned to the panel in the ‘System Management’ page. (You can change the panel ID of an NV9604 only in NV9000-SE Utilities.) Give a name to the panel in the name field and select a user.
  • Page 23 There are 2 other buttons, ‘Suffix’ and ‘Navigate’, both dim (disabled). These do not apply to the NV9604. Return to the ‘Control Panels’ page to view your new entry. To edit an NV9604 configuration, dou- ble-click its list entry: You will then see the panel configuration page for the selected NV9604.

  • Page 24: Nv9604 Panel Configuration Page

    4. Configuration NV9604 Panel Configuration Page NV9604 Panel Configuration Page This is the default NV9604 panel configuration page in NV9000-SE Utilities: Panel Image: Button Definition Panel Section Options Figure 4-1. NV9604 Configuration Page (Default) After you configure buttons the appearance of the panel buttons will have changed. The panel but- tons on this page will show legends, determined from the button type assigned to the button.

  • Page 25: Configuration Tasks

    Commitment Buttons Configuration Tasks The person configuring an NV9604 panel will want to consider how best to use the buttons to sup- port the devices and routers in the router control system at hand. Trade-offs must be made. In support of that effort, the configurer will do the following: •...

  • Page 26: Button Definitions

    Available options and selections vary from button type to button type. When the NV9604 is used as an NV9602 extension, the use of the buttons depends on the mode in which the NV9602 is configured.

  • Page 27: Button Types

    X — limited X-Y mode M — multi-destination mode Any — any mode When the NV9604 is used by itself, the NV9604 has no modes, but can operate either as single-des- tination panel (using the default destination) or as an X-Y panel. Button Types...
  • Page 28 1. When the second set is selected, pressing the button selects device 2. Note that when an NV9602 is in multi-destination mode, the only operable buttons on the NV9604 are salvo buttons. Undefined This button type is a placeholder: during configuration, it makes the but- ton undefined and inactive.

  • Page 29: Operation

    As an NV9604 operator, you will be confronted initially with a relatively small and simple panel — just 32 buttons (and no display). The NV9604 can operate either as a stand-alone panel or as an extension to an NV9602. As an NV9602 extension, it follows the mode and methods of the NV9602.

  • Page 30: Single-Destination Mode

    Although an NV9602 can be configured in multi-destination mode, the buttons of the NV9604 do not function as multi-destination buttons. When the NV9602 is in multi-destination mode (and the NV9604 is its extension), it is possible to use the NV9604 for salvo buttons, but nothing else.

  • Page 31: Operating Concepts

    Operating Concepts When the NV9604 is a stand-alone panel, the only possible operation is to perform a take: • In single-destination mode, by pressing a source button. • In X-Y mode, by pressing a destination button, then a source button.

  • Page 32: Breakaway

    5. Operation Operating Concepts Breakaway Routes can be all-level in which case they are taken on all levels defined for the destination. The acceptable sources for a route have the same levels as, or some configured mapping to, the levels of the destination.

  • Page 33: Buttons

    • Salvo • Source If your NV9604 is a stand-alone panel, it can have only two button types: source and destination. Just for comparison, the NV9602 has 21 button types, not including “undefined” which is not an actual button type:...

  • Page 34: Previous Source

    It is possible that you will find one or more sources locked or protected because other control pan- els can lock or protect sources and destinations. The NV9604 does not provide lock or protect func- tions. An NV9604 cannot lock, unlock, protect, or unprotect any source or destination.

  • Page 35: Takes

    • At any other panel with “force release” enabled. Takes The NV9604 can operate by itself as a stand-alone panel or as an extension to an NV9602. As an extension to an NV9602, it operates according to the mode in which the NV9602 is configured.

  • Page 36: Case 5 - Nv9602 Extension, Limited X-Y Mode

    3 Optionally press ‘Source Shift’ (on the NV9602) to toggle between the source sets. 4 Press a source button on the NV9602 or NV9604 to complete the take. The ‘Status’ field of the NV9602 display shows the source you chose.
  • Page 37 All the buttons turn off. Press any button to test it. If the button is working properly, it will flash a few times rapidly. Pressing the self-test button will terminate the button test and return your panel to its initial state. NV9604 Control Panel • User’s Guide...
  • Page 38 5. Operation Self-Test Rev 1.0 • 18 Aug 10...

  • Page 39: Technical Details

    6. Technical Details Chapter 6 provides electrical and mechanical specifications for the NV9604. It discusses these top- ics: • Power Specifications • NV9604 Specifications • Environmental Specifications • Defaults • Drawings Power Specifications Table 6-1 provides power specifications for the NV9604 control panels.

  • Page 40: Environmental Specifications

    0 to 90%, non-condensing. Cooling No fan required. Defaults Initial Panel State Destination: the configured default. Configuration Page The initial NV9604 configuration has no buttons defined. The default panel options are: Default destination: None. Status monitor: None High-tally illumination:100%. Low-tally illumination:60%.
  • Page 41 6. Technical Details Drawings Right Side View Figure 6-1. Front and Side Views of the NV9604 NV9604 Control Panel • User’s Guide...
  • Page 42 6. Technical Details Drawings Figure 6-2. Rear and Top Views of the NV9604 Rev 1.0 • 18 Aug 10...

  • Page 43: Misc. Topics

    8 of the time code router. GPIO General Purpose Input and Output. A generic term for the NV9604’s tally interface. The tally inter- face is called the “GPI Interface” at the rear of the NV9604.
  • Page 44 7. Misc. Topics Glossary Port A port is the physical connection on a router. A port can only be an input port or an output port. Salvo A salvo is a stored group of commands that can be recalled and executed at a NV9000 control panel.

  • Page 45: Index

    ....5, 22, 24 NV9604 ......13 finish .
  • Page 46 Destination (display) ..... . .25 NV9604, top view ..... . 34 Destination field .
  • Page 47 ........35 NV9604 ......2–3, 7–8, 13 virtual .
  • Page 48 ......26 NV9604 ......31 source .
  • Page 49 Take scenarios ......27 Website, Miranda ......iii Takes .
  • Page 50 Index Rev 1.0 • 18 Aug 10...
