Zamel NC60 Quick Manual

GATE CONTROL MODULE NC60
Thank you for buying this product from Zamel.
Zamel shall not accept any liability for any results of damage and/or accidents
caused by non-intended use of the product.
Before attempting installation of this product, please read and understand the entire
Operating Manual in order to comply with the intended use.
Do not open or tamper with the product without prior authorization. Otherwise your
Warranty rights for this product will be void.

SAFETY

• Always follow this Manual for your safety and to prevent damage to the product.
• Do not connect or interface this device with incompatible products. Otherwise
there is a risk of an electrical short circuit, resulting in damage to this product.
• Do not install in highly humid indoor environments. Risk of electrical short circuit
and fire!
• Do not attempt to disassemble, repair or alter this product on your own.
Risk of electrocution, damage to the product and/or fire!
• Verify that the device is properly connected to the video entry phone system
of the gate. Incorrectly connected wiring will overload and damage the device.

PRODUCT FUNCTIONS

The gate control module can relay control commands from a video entry phone
display to the gate controller: via the display contacts GND and DATA on the P3
connector to the NC06 controller and via the display COM and NO/NC to operate
the gate.

PRODUCT DESCRIPTION

• Communication input from the video entry phone DATA display
• NO/NC and COM control output
• The NO/NC contact can work either in NO or NC mode
• The relay break time is programmable in the advanced settings of the video entry
phone display

TECHNICAL DATA

• Operating temperature: -30°C to +60°C
• Supply voltage: none
• Operating RH: 0% to 95%
• Dimensions: 48 x 25 x 20 mm
• Weight: 15 g

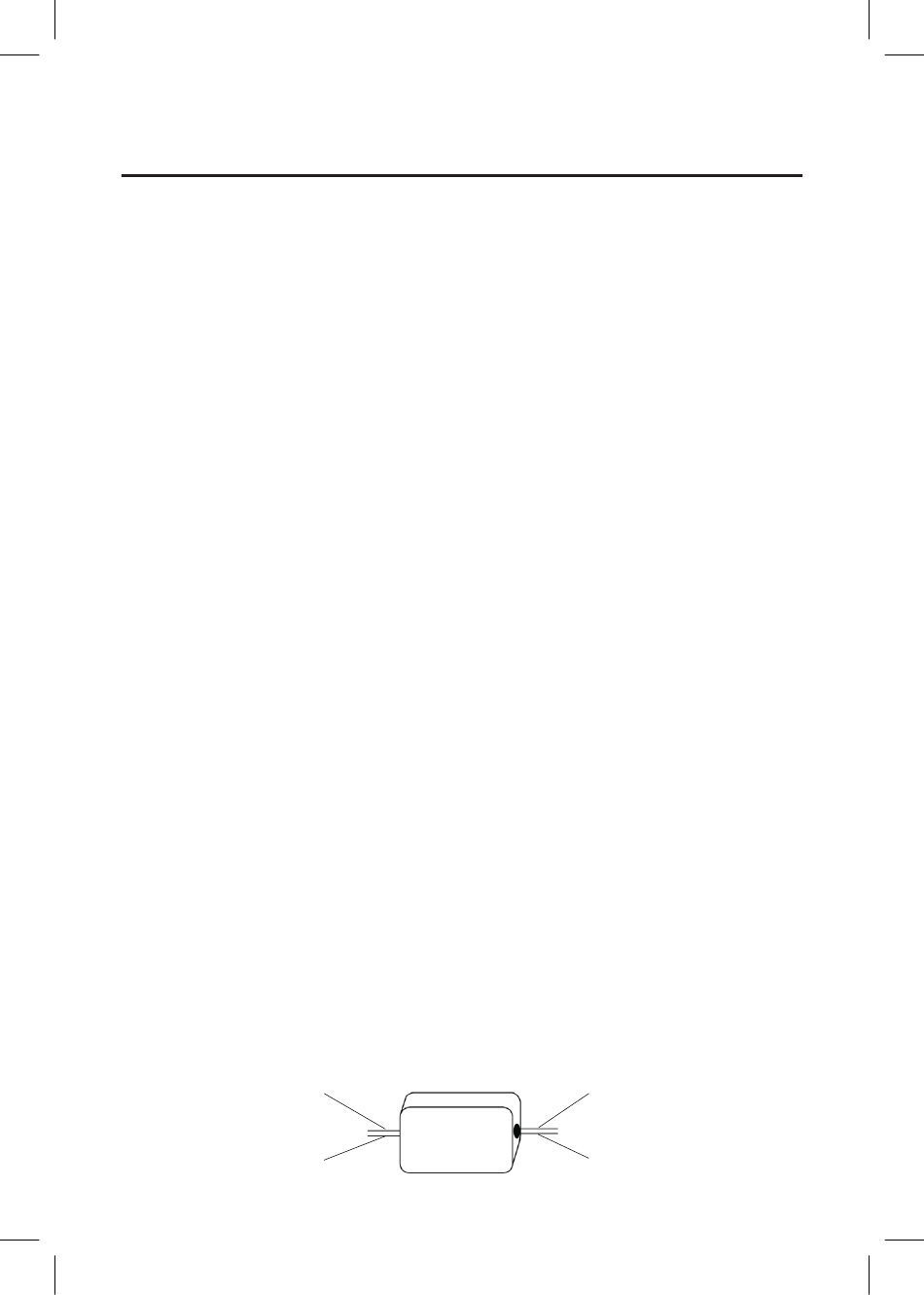

WIRING CONNECTION DIAGRAM

BLUE: GND
YELLOW: DATA
WIRING PROFILE
• ≤ 50 m (4 x 0.5 mm
2
• ≤ 75 m (4 x 0.75 mm
• ≤ 100 m (4 x 1.0 mm
WHITE: COM
RED: NO/NC
)
)
2
)
2
