Zamel RTP-01 Instruction Manual

TEMPERATURE CONTROL CHARACTERISTICS
If the temperature from the check sensor is equal or higher than the temperature setting, then the load connected to the terminals (2), (4) is switched off.
If the temperature from the check sensor is lower by 2°C than the temperature setting, then the load connected to the terminals (2), (4) is switched on.
The heating symbol on the display is active. The symbol comes off when the temperature in the room reaches the set value. When the sensor is set in
the MODE – "0" (F5 tab), and if the external sensor detects the increase of the temperature above the upper safety limit, then the heating is switched off.
At the OFF status the system switches the heating on when the temperature is lower than the safety temperature set in the F3 mode.
Notes: in the normal operation mode it is possible to set the temperature directly by pressing the "+" / "-" buttons. Pressing the " " button for short time
or no action for 10 minutes makes the system leaving the temperature setting mode.
KEYBOARD LOCK STATUS
In the normal operation mode press simultaneously and hold the "+" and "-" buttons to enable/disable the keyboard lock. When the keyboard is locked
the system is not active and does not respond to pressing buttons, and the "Lock" is shown in the right hand upper corner of the LCD display.
CONTROL IN THE MANUAL AND AUTOMATIC MODE
In the normal operation mode press and hold for about 5 seconds the button "-" to switch between manual and automatic modes.
Manual mode: temperature adjustment in accordance with the set value only, without displaying the operation time range (P1÷P4).
Automatic mode: temperature adjustment in accordance with the set value for the current operation time range; the temperature within diverse
operation time ranges and various working days can be different – in accordance with the program set.
NOTES
In the normal operation mode press and hold for about 5 seconds the button "-" to switch between manual and automatic modes.
Manual mode: temperature adjustment in accordance with the set value only, without displaying the operation time range (P1÷P4).
Automatic mode: temperature adjustment in accordance with the set value for the current operation time range; the temperature within diverse
operation time ranges and various working days can be different – in accordance with the program set.
Note
After connecting the temperature controller to the power supply
230 VAC no signs on the display
After pressing any button no backlight comes on
Temperature in the room is lower by 2 °C
than the temperature set,
and in spite of that the floor heating does not come on
The system does not operate correctly
The display shows wrong date and time
The temperature controller executes
wrong timed operation program
The controller does not execute the timed operation program
This symbol informs that the device creates an electric shock hazard when servicing
The system should be serviced by appropriately qualified electricians who has familiarized himself with the operating manual and the functions of the device.
WARRANTY CARD
There is 24 months guarantee on the product
1. ZAMEL Sp. z o.o. assures 24 months guarantee for the product.
2. The manufacturer's guarantee does not cover any of the following actions:
a) mechanical damage during transport, loading / unloading or under other circumstances,
b) damage caused by incorrect product mounting or misuse,
c) damage caused by unauthorised modifications made by the PURCHASER or any third parties to the product or any other devices
needed for the product functioning,
d) damage caused by Act of God or any other incidents independent of the manufacturer - ZAMEL Sp z o.o.
e) power supply (batteries) to be equipped with a device in the moment of sale (if they appear);
3. The PURCHASER shall lay any claims in writing to the dealer or ZAMEL Sp. z o.o.
4. ZAMEL Sp. z o.o. is liable for processing any claim according to current Polish legislation.
5. ZAMEL Sp. z o.o. shall process the claim at its own discretion: product repair, replacement or money return.
6. The manufacturer's guarantee is valid in the Republic of Poland.
7. The PURCHASER's statutory rights in any applicable legislation whether against the retailer arising from the purchase contract or
Salesman stamp and signature, date of sale otherwise are not affected by this warranty.
Description
Check the wiring and the connection of the temperature controller
with the mains – 230 VAC/50Hz
Backlight system damaged
Check the pad connection to the temperature controller.
Check the relay operation.
Switch the power supply off and then switch it on again
Caused by a power supply failure for more than 2 hours.
Recheck settings, make new correct ones.
Caused by a power supply failure for more than 2 hours.
Recheck settings, make new correct ones.
The controller set in manual mode.
Switch the controller over to automatic mode.
VER. 001_28.06.2016
MATEC – ELECTRIC HEATING SYSTEMS
RTP-01 TEMPERATURE CONTROLLER
tel. +48 32 449 15 00, +48 32 210 46 65, fax +48 (32) 210 80 04
DESCRIPTION TECHNICAL SPECIFICATIONS
RTP-01 temperature controller is used to control
the electrical floor heating systems under load.
The device is installed in a deepened 60 mm
x 60 mm wiring box.
controller
heating mat
Accuracy of temperature measurement: ±1 °C
● The controller is to be installed in a heated
room – installation in a deepened 60 mm x
60 wiring box at the height about 120 cm
above the heated floor level.
● The controller is to be installed in a safe
place, not exposed to direct sun light, in a
slightly airy area
● The temperature and humidity in the instal-
lation place should not exceed the values
listed in the technical specification (T < -5
OR T > +50 °C, relative humidity RH > 90%)
INSTALLATION
● Disconnect supply circuit by means of a fuse, an
overcurrent protection device or a switch discon-
nector connected to the appropriate circuit.
● Check the voltage free status on supply connectors
using an appropriate tester.
● Install the RTP-01 device in a room, in accordance
with the instructions given in the "Description" para-
graph.

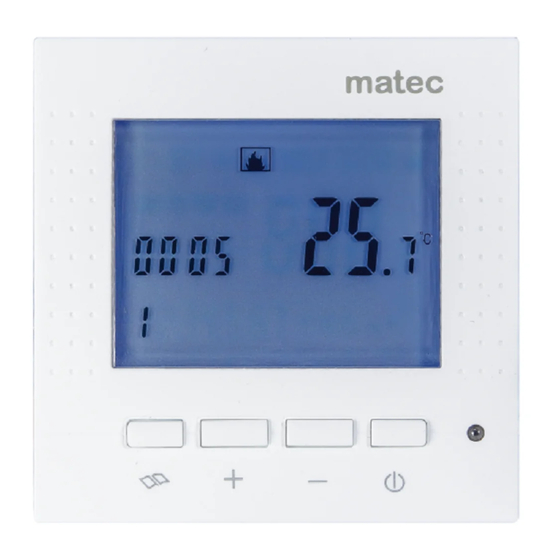

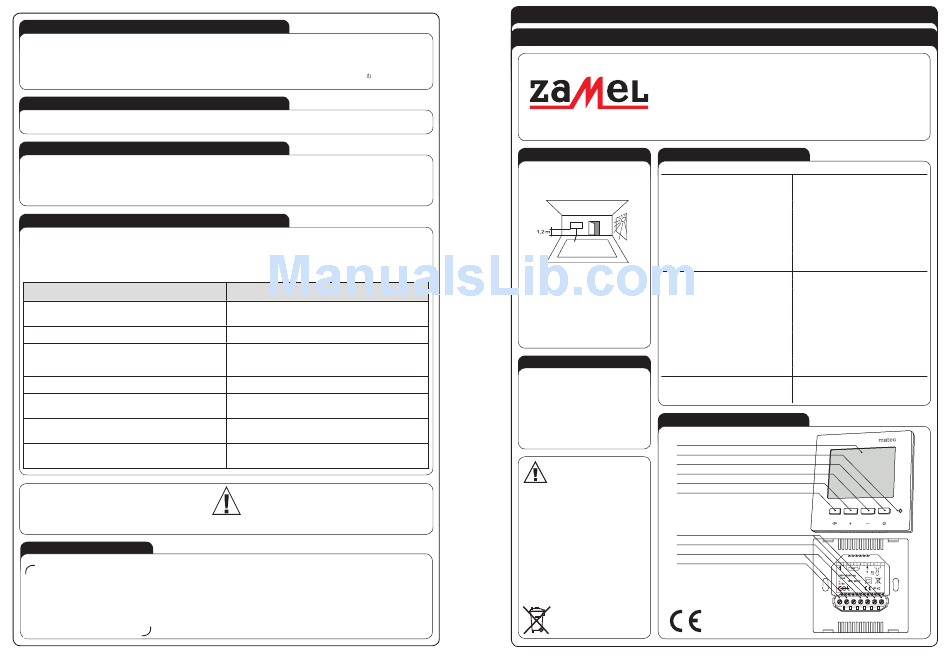

APPEARANCE
● Connect leads to the connecting terminals accord-
ing to the electrical diagram.
● Switch on the power supply circuit.
● Check the operation of the controller and the instal-
LCD display
lation.
LED
ON/OFF button
This device is to be connected to sin-
"–" button
gle-phase mains, in accordance with the
standards in force in the respective country.
"+" button
Installation must be carried out according
CAUTION
Menu button
to this instruction manual. The installation,
connection and adjustment of the device should be
carried out by a competent and appropriately qualified,
licensed electrician who has familiarized himself with
this instruction manual and the functions of the device.
Warning! Do not remove the casing! Electric shock risk!
Before installation, dismantling, cleaning, and servicing NTC 5k sensor
disconnect power supply and make sure the terminals
N
are voltage-free. For installing use a straight blade
Heating element
screwdriver of the diameter up to 3.5 mm. The correct
operation of the device is affected by its transportation,
L, fuse, B- characteristics
storage, and use, and particularly how the temperature
(6A/10A, power dependent)
controller and sensor have been installed. Installation
of this device is not recommended in the following situ-
ations: the lack of parts, damage or deformations of the
device. If the device does not operate properly, please
contact the manufacturer.
The symbol indicates the selective
collection of the electric and electronic
equipment. Do not dispose electrical
and electronic waste together with
another kind of waste.
INSTRUCTION MANUAL
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
www.zamel.com, e-mail: matec@zamel.pl
RTP-01
Input (supply) terminals: L (5), N (6)
Input rated voltage: 85 ÷ 265 V~
Nominal frequency: 50 / 60 Hz
Nominal power consumption: 6 mA / 0.4 W (STANDBY)
Battery support: no
NTC sensor terminals: (6), (7)
NTC sensor terminals: NTC 5 k dla 25 ºC
Temperature adjustment range: +5 ÷ +45 °C
Control accuracy: 0 °C ÷ -2 °C
Output terminals: (2), (4)
Output type: 1NO-16 A / 250 V AC1 4000 VA voltage contact
Connection terminals quantity: 7
Section of connecting cable: 0,5 ÷ 2,5 mm 2
Ambient temperature range: -5 ÷ +50 °C
Humidity: <90%, no condensation
Installation: deepened wiring box 60 mm x 60 mm
Casing material: polycarbonate (PC)
Casing protection degree: IP40
Protection level: II
Overvoltage category: II
Dimensions: 86 x 86 x 45.5 mm (H x W x D)
Weight: 136 g
Reference standard: EN 60335-1:2002+A2:2006,
EN 61000-3-2:2006, EN 61000-3-3:2006,
EN 55014-1:2006+A1:2009,
EN 55014-2:1997+A2:2008
VER. 001_28.06.2016
