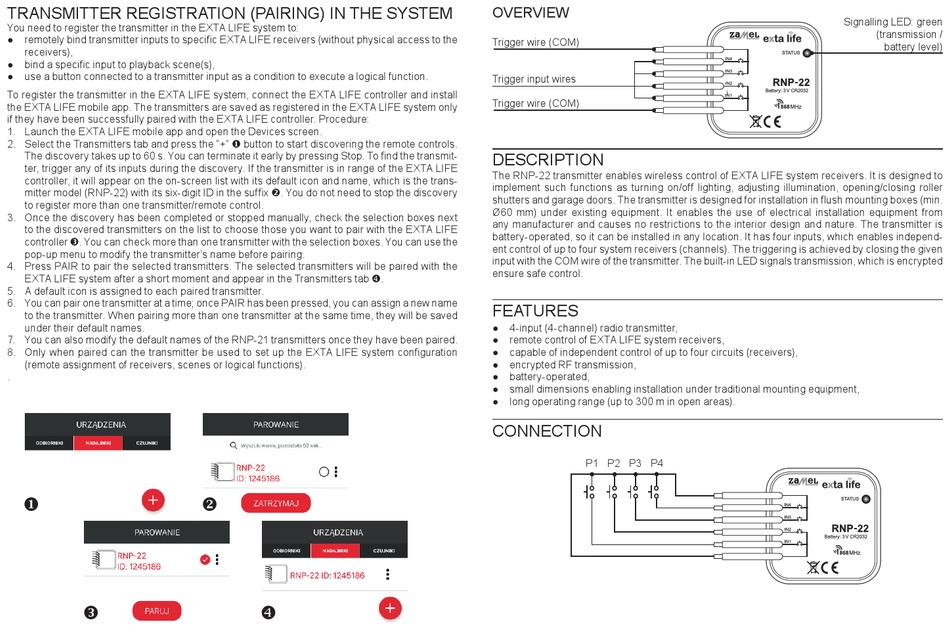

Zamel RNP-22 Quick Manual

TRANSMITTER REGISTRATION (PAIRING) IN THE SYSTEM
You need to register the transmitter in the EXTA LIFE system to:
● remotely bind transmitter inputs to specific EXTA LIFE receivers (without physical access to the
receivers),
● bind a specific input to playback scene(s),
● use a button connected to a transmitter input as a condition to execute a logical function.
To register the transmitter in the EXTA LIFE system, connect the EXTA LIFE controller and install
the EXTA LIFE mobile app. The transmitters are saved as registered in the EXTA LIFE system only
if they have been successfully paired with the EXTA LIFE controller. Procedure:
1. Launch the EXTA LIFE mobile app and open the Devices screen.
2. Select the Transmitters tab and press the "+"  button to start discovering the remote controls.
The discovery takes up to 60 s. You can terminate it early by pressing Stop. To find the transmit-
ter, trigger any of its inputs during the discovery. If the transmitter is in range of the EXTA LIFE
controller, it will appear on the on-screen list with its default icon and name, which is the trans-
mitter model (RNP-22) with its six-digit ID in the suffix . You do not need to stop the discovery
to register more than one transmitter/remote control.
3. Once the discovery has been completed or stopped manually, check the selection boxes next
to the discovered transmitters on the list to choose those you want to pair with the EXTA LIFE
controller . You can check more than one transmitter with the selection boxes. You can use the
pop-up menu to modify the transmitter's name before pairing.
4. Press PAIR to pair the selected transmitters. The selected transmitters will be paired with the
EXTA LIFE system after a short moment and appear in the Transmitters tab .
5. A default icon is assigned to each paired transmitter.
6. You can pair one transmitter at a time; once PAIR has been pressed, you can assign a new name
to the transmitter. When pairing more than one transmitter at the same time, they will be saved
under their default names.
7. You can also modify the default names of the RNP-21 transmitters once they have been paired.
8. Only when paired can the transmitter be used to set up the EXTA LIFE system configuration
(remote assignment of receivers, scenes or logical functions).
.




OVERVIEW
Trigger wire (COM)
Trigger input wires
Trigger wire (COM)
DESCRIPTION

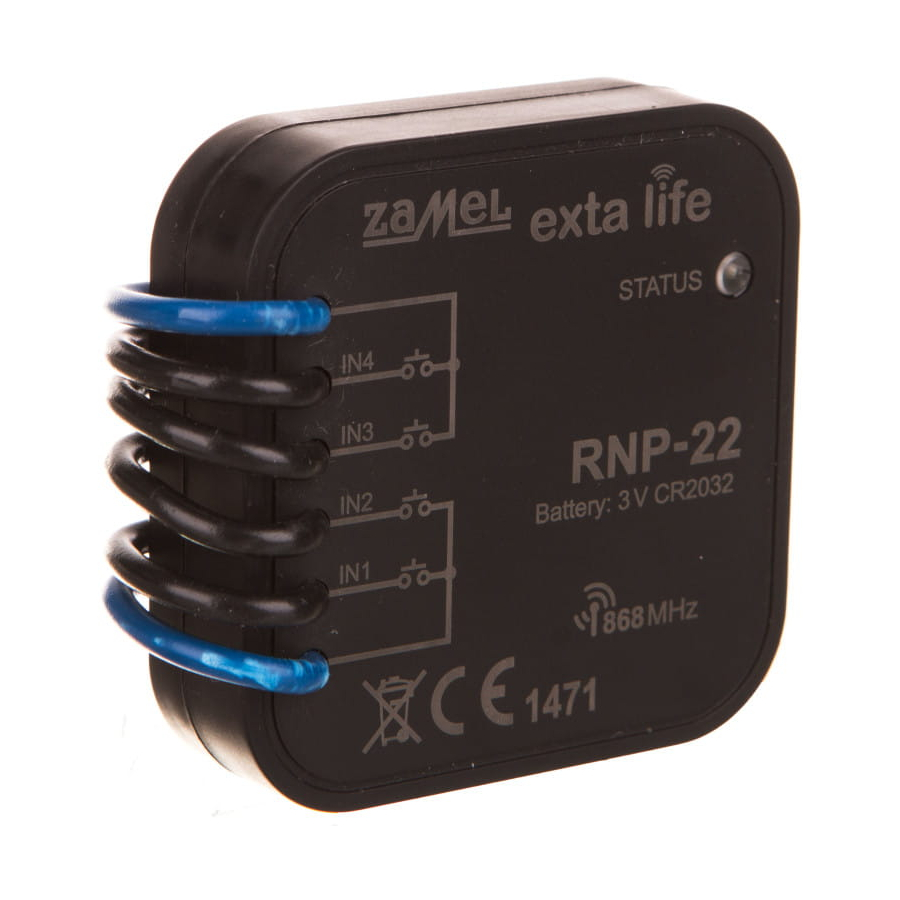

The RNP-22 transmitter enables wireless control of EXTA LIFE system receivers. It is designed to
implement such functions as turning on/off lighting, adjusting illumination, opening/closing roller
shutters and garage doors. The transmitter is designed for installation in flush mounting boxes (min.
Ø60 mm) under existing equipment. It enables the use of electrical installation equipment from
any manufacturer and causes no restrictions to the interior design and nature. The transmitter is
battery-operated, so it can be installed in any location. It has four inputs, which enables independ-
ent control of up to four system receivers (channels). The triggering is achieved by closing the given
input with the COM wire of the transmitter. The built-in LED signals transmission, which is encrypted
ensure safe control.
FEATURES
● 4-input (4-channel) radio transmitter,
● remote control of EXTA LIFE system receivers,
● capable of independent control of up to four circuits (receivers),
● encrypted RF transmission,
● battery-operated,
● small dimensions enabling installation under traditional mounting equipment,
● long operating range (up to 300 m in open areas).
CONNECTION
P1 P2 P3 P4
Signalling LED: green
(transmission /
battery level)
