4-CHANNEL BUTTON RADIO TRANSMITTER RNK-04

DESCRIPTION

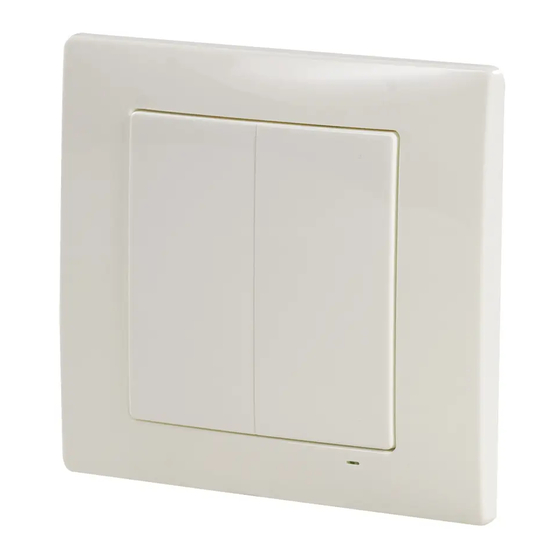

Button radio transmitter RNK-04 is
a transmitting device of wireless EXTA FREE
control system. It is used to realise following
control functions: switching on / switching
off, brightening / dimming, roller blinds rais-
ing / lowering and time operation mode.
The transmitter can be mounted on any sur-
face (glass, wood, etc.) as it is quite small,
not too heavy and it does not require external
power supply connection.

FEATURES

● 2-button, 4-channel radio transmitter,
● remote control of EXTA FREE system re-
ceivers,
● possibility of independent control of two
receivers,
● wide range of operation (up to 250 m),
● battery powered,
● easy mounting and installation in any
place,
● sending information and battery status are
optically signalled,
● possibility of simultaneous switching on/
switching off any number of EXTA FREE
system receivers.

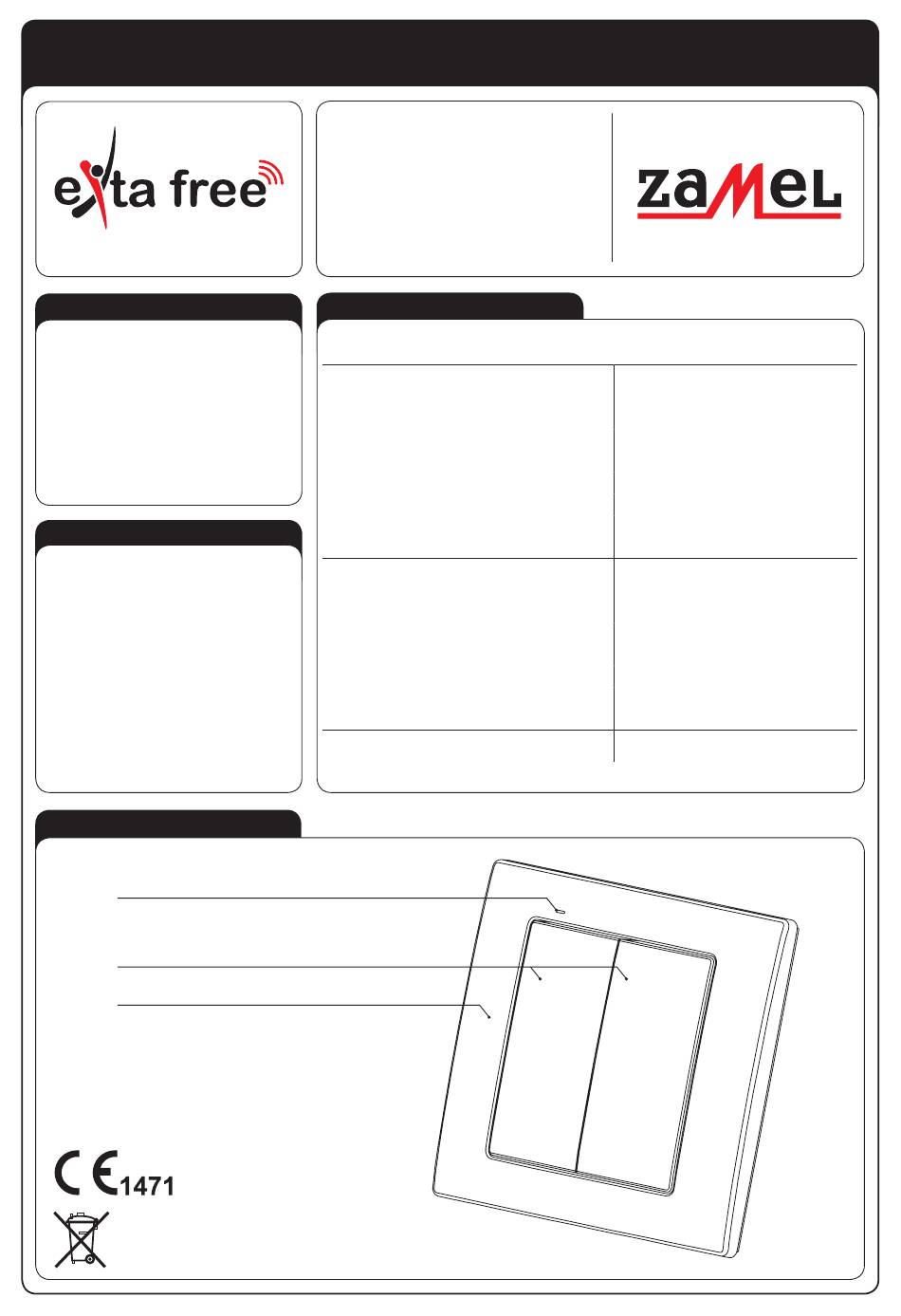

APPEARANCE

Optic signalling of transmitter's operation
Push-buttons
Base
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl

TECHNICAL DATA

Number of channels: 4
Optic signalling of transmition/battery status: LED red diode
Ambient temperature range: -10 ÷ +55
Casing protection degree: IP20 (EN 60529)
MANUAL INSTRUCTION
RNK-04
Input rated voltage: 3 V DC
Battery type: CR2032
Battery life: 3 ÷ 5 years (depends on use)
Transmission: radio 868,32 MHz
Coding way: unidirectional
Coding: addressing transmission
Range: up to 250 m in the open area
C
o
Operating position: free
Casing mounting: wall plugs, double-sided adhesive tape
Protection level: III
Pollution degree: 2
Dimensions: 90 x 80 x 11,5 mm
Weight: 0,038 kg
Reference standard: ETSI EN 300 220-1,
ETSI EN 300 220-2
VER. 003_20.05.2011
