Zamel RNL-01 Manual Instruction

RADIO FOOT TRANSMITTER RNL-01
DESCRIPTION

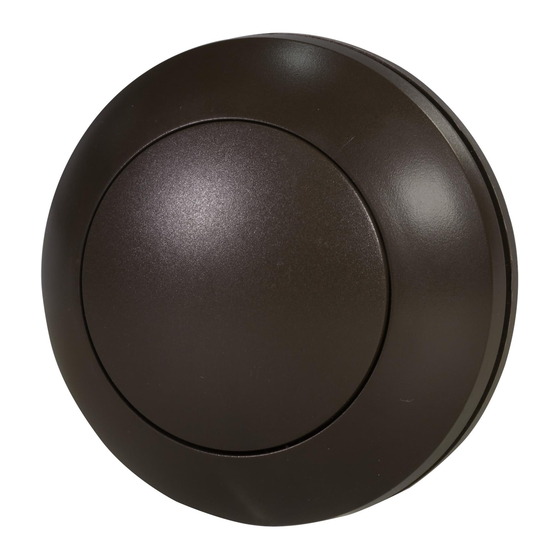

Radio foot transmitter RNL-01 is
a device used to control radio receivers
of EXTA FREE system. It can be used
in wireless control of e.g., garage gate.
The device is battery powered (one battery).
FEATURES
● 1-channel radio transmitter,
● remote control of EXTA FREE system
receivers,
● wide range of operation (up to 200 m),
● mounting and additional installation is
not required,
● battery powered,
● sending information and battery status
are optically signalled,
● possibility of simultaneous switching
on/switching off any number of EXTA
FREE system receivers,
● possibility of increasing operation range
by means of RTN-01 retransmitter.

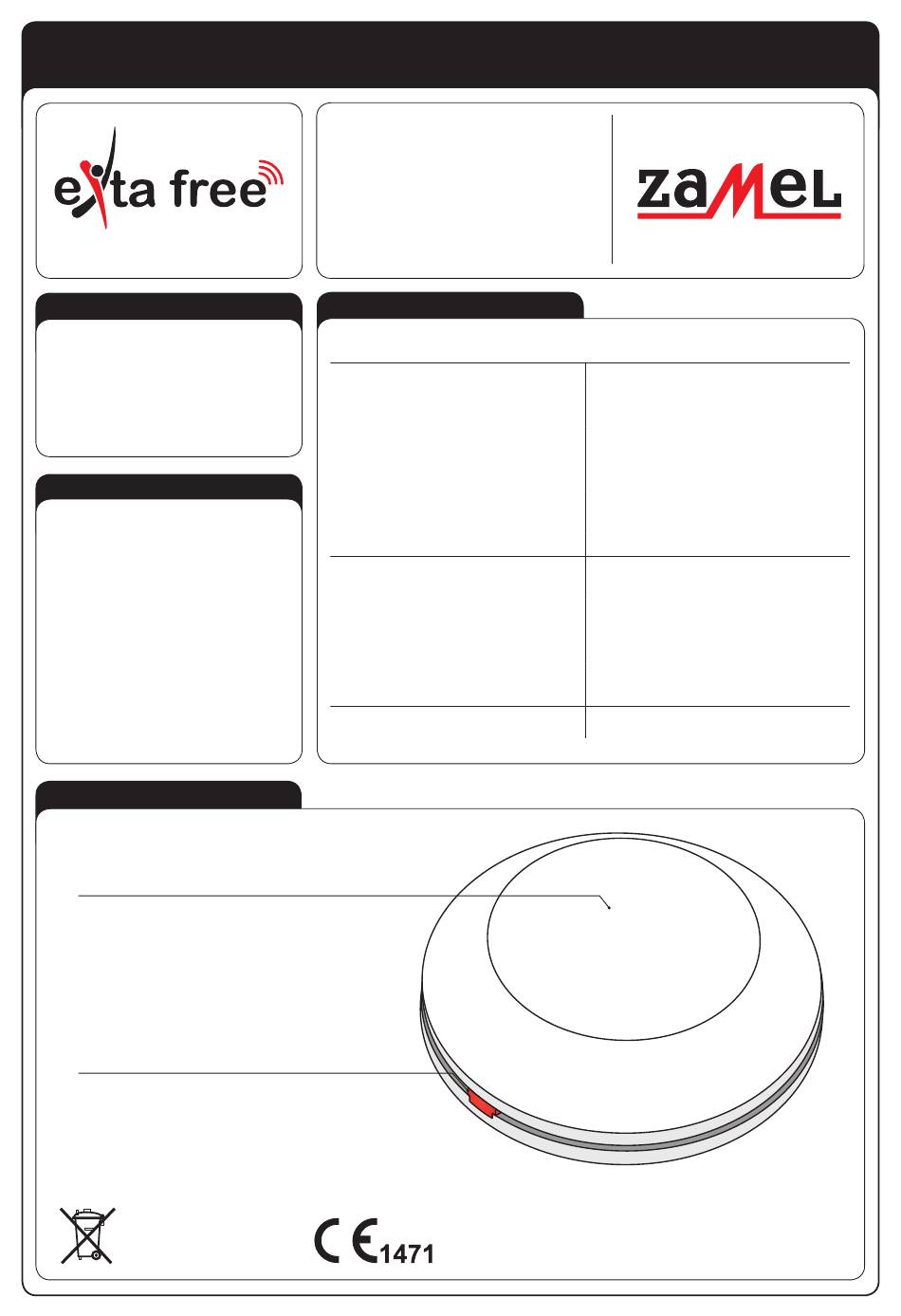

APPEARANCE
Foot push-button
Optic signalling of transmitter's operation
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL DATA
Input rated voltage: 3 V DC
Number of channels: 1
Optic signalling of transmition/battery discharge: LED red diode
Ambient temperature range: -10 ÷ +55
Operating position: free
Casing protection degree: IP20 (EN 60529)
Protection level: III
Pollution degree: 2
Reference standard: ETSI EN 300 220-1
MANUAL INSTRUCTION
RNL-01
Battery type: CR2032
Battery life: 3 ÷ 5 years (depends on use)
Transmission: radio 868,32 MHz
Coding way: unidirectional
Coding: addressing transmission
Range: up to 200 m in the open area
C
o
Dimensions: Ø75 x 40 mm
Weight: 0,06 kg
ETSI EN 300 220-3
VER. 004_11.07.2011
