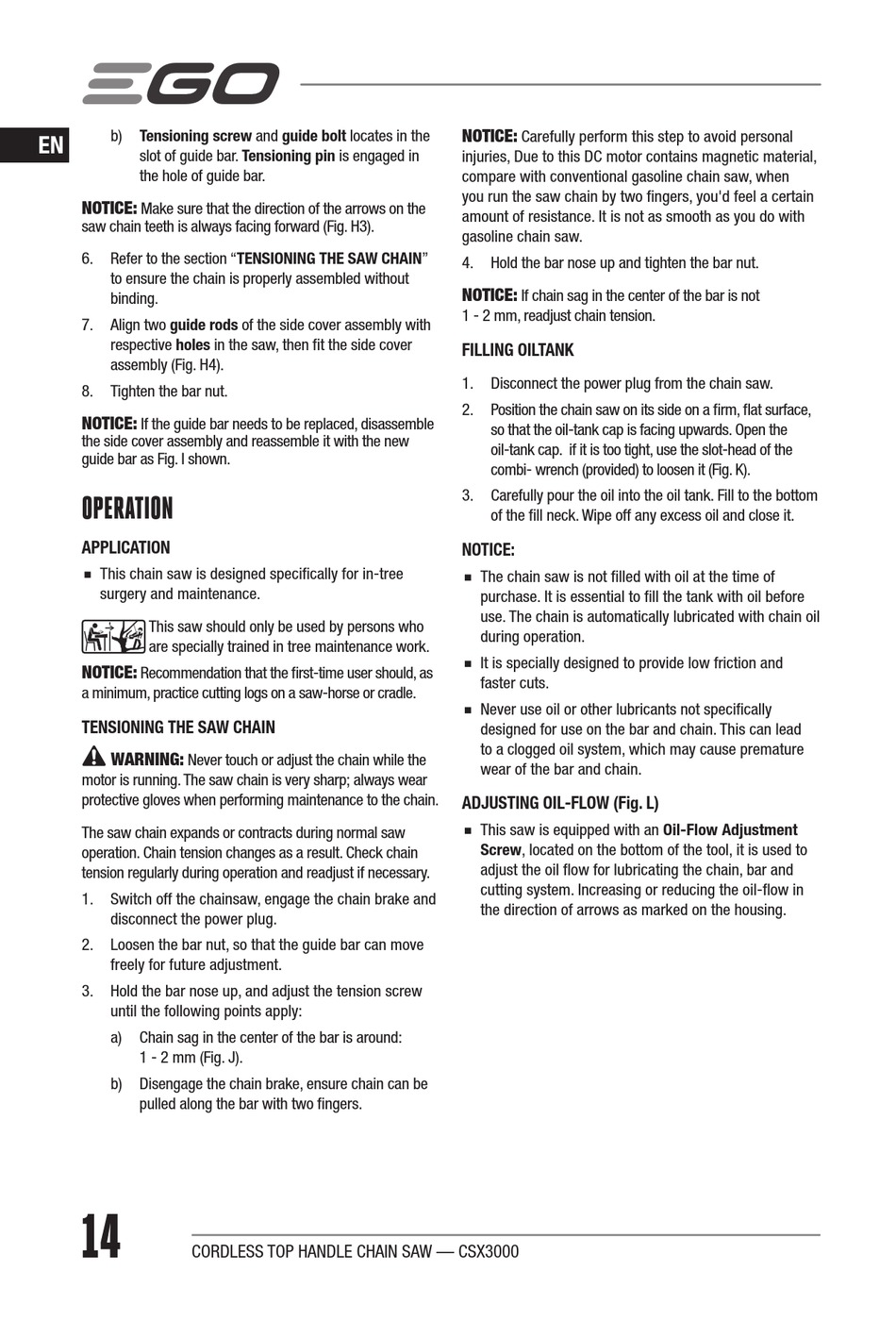

b) Tensioning screw and guide bolt locates in the
EN
slot of guide bar. Tensioning pin is engaged in
the hole of guide bar.
NOTICE:
Make sure that the direction of the arrows on the
saw chain teeth is always facing forward (Fig. H3).
6. Refer to the section "TENSIONING THE SAW CHAIN"
to ensure the chain is properly assembled without
binding.
7. Align two guide rods of the side cover assembly with
respective holes in the saw, then fit the side cover
assembly (Fig. H4).
8. Tighten the bar nut.
NOTICE:
If the guide bar needs to be replaced, disassemble
the side cover assembly and reassemble it with the new
guide bar as Fig. I shown.

OPERATION

APPLICATION
◾
This chain saw is designed specifically for in-tree
surgery and maintenance.
This saw should only be used by persons who
are specially trained in tree maintenance work.
NOTICE:
Recommendation that the first-time user should, as
a minimum, practice cutting logs on a saw-horse or cradle.
TENSIONING THE SAW CHAIN
WARNING:
Never touch or adjust the chain while the
motor is running. The saw chain is very sharp; always wear
protective gloves when performing maintenance to the chain.
The saw chain expands or contracts during normal saw
operation. Chain tension changes as a result. Check chain
tension regularly during operation and readjust if necessary.
1. Switch off the chainsaw, engage the chain brake and
disconnect the power plug.
2. Loosen the bar nut, so that the guide bar can move
freely for future adjustment.
3. Hold the bar nose up, and adjust the tension screw
until the following points apply:
a) Chain sag in the center of the bar is around:
1 - 2 mm (Fig. J).
b) Disengage the chain brake, ensure chain can be
pulled along the bar with two fingers.
14
CORDLESS TOP HANDLE CHAIN SAW — CSX3000
NOTICE:
Carefully perform this step to avoid personal
injuries, Due to this DC motor contains magnetic material,
compare with conventional gasoline chain saw, when
you run the saw chain by two fingers, you'd feel a certain
amount of resistance. It is not as smooth as you do with
gasoline chain saw.
4. Hold the bar nose up and tighten the bar nut.
NOTICE:
If chain sag in the center of the bar is not
1 - 2 mm, readjust chain tension.
FILLING OILTANK
1. Disconnect the power plug from the chain saw.
2. Position the chain saw on its side on a firm, flat surface,
so that the oil-tank cap is facing upwards. Open the
oil-tank cap. if it is too tight, use the slot-head of the
combi- wrench (provided) to loosen it (Fig. K).
3. Carefully pour the oil into the oil tank. Fill to the bottom
of the fill neck. Wipe off any excess oil and close it.
NOTICE:
◾
The chain saw is not filled with oil at the time of
purchase. It is essential to fill the tank with oil before
use. The chain is automatically lubricated with chain oil
during operation.
◾
It is specially designed to provide low friction and
faster cuts.
◾
Never use oil or other lubricants not specifically
designed for use on the bar and chain. This can lead
to a clogged oil system, which may cause premature
wear of the bar and chain.
ADJUSTING OIL-FLOW (Fig. L)
◾
This saw is equipped with an Oil-Flow Adjustment
Screw, located on the bottom of the tool, it is used to
adjust the oil flow for lubricating the chain, bar and
cutting system. Increasing or reducing the oil-flow in
the direction of arrows as marked on the housing.
